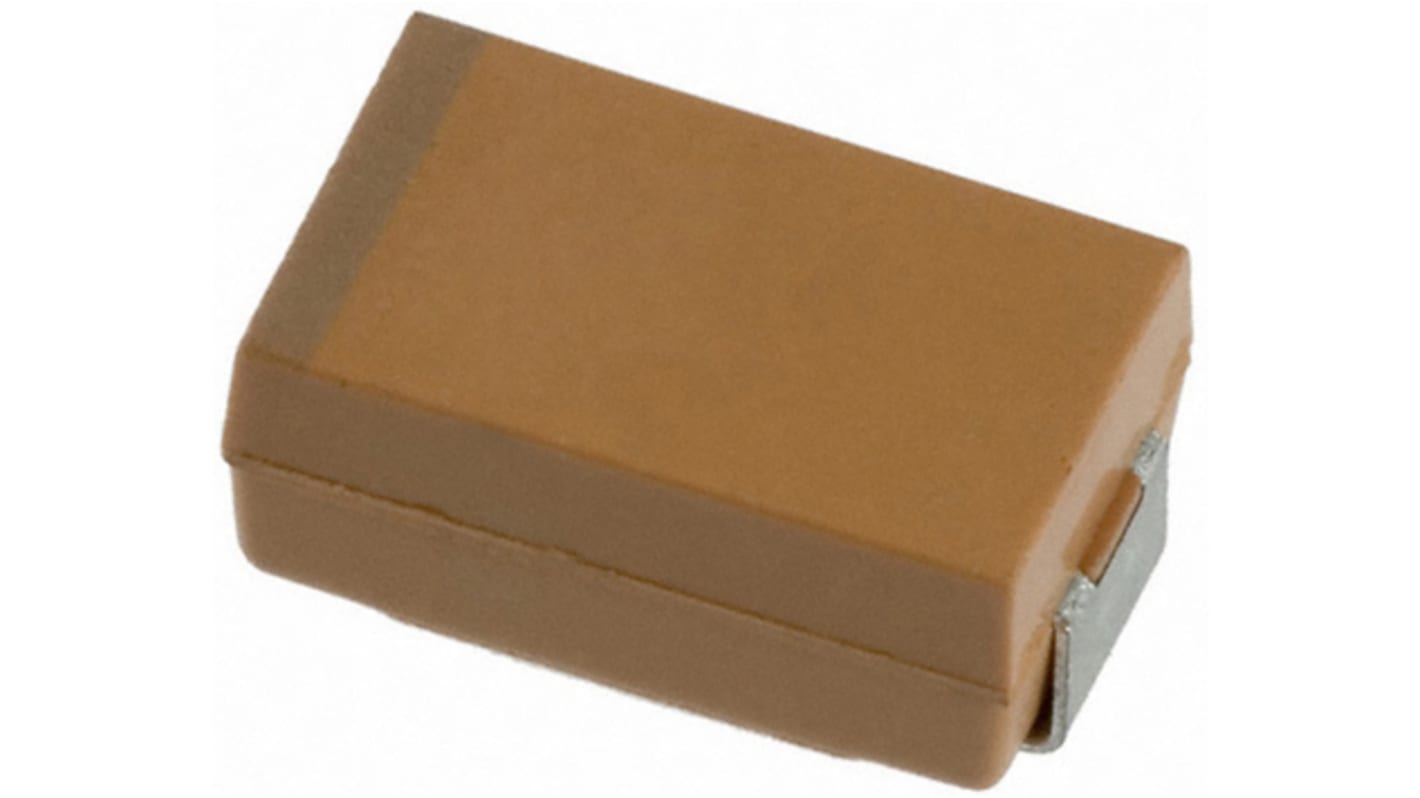

AVX 68μF 20V dc Tantalum Capacitor Electrolytic Solid 2917 Series
- RS Stock No.:
- 135-8419
- Mfr. Part No.:
- TPSE686K020R0150
- Brand:
- KYOCERA AVX
Subtotal (1 bag of 2 units)*
£2.85
(exc. VAT)
£3.42
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 348 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
2 + | £1.425 | £2.85 |
*price indicative
- RS Stock No.:
- 135-8419
- Mfr. Part No.:
- TPSE686K020R0150
- Brand:
- KYOCERA AVX
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | KYOCERA AVX | |
Technology | Electrolytic | |
Capacitance | 68µF | |
Voltage | 20V dc | |
Mounting Type | Surface Mount | |
Package/Case | 2917 | |
Equivalent Series Resistance | 150mΩ | |
Lead Pitch | 4.4mm | |
Length | 7.3mm | |
Height | 4.1mm | |
Dimensions | 7.3 x 4.3 x 4.1mm | |
Series | 2917 | |
Electrolyte Type | Solid | |
Terminal Type | SMT | |
Maximum Operating Temperature | +125°C | |
Dielectric Material Family | Tantalum | |
Dissipation Factor | 6% | |
Polarised | Polar | |
Surge Voltage | 16 V dc @ +125 °C, 26 V dc @ +85 °C | |
Leakage Current | 13.6 μA | |
Minimum Operating Temperature | -55°C | |
Select all | ||
---|---|---|
Brand KYOCERA AVX | ||
Technology Electrolytic | ||
Capacitance 68µF | ||
Voltage 20V dc | ||
Mounting Type Surface Mount | ||
Package/Case 2917 | ||
Equivalent Series Resistance 150mΩ | ||
Lead Pitch 4.4mm | ||
Length 7.3mm | ||
Height 4.1mm | ||
Dimensions 7.3 x 4.3 x 4.1mm | ||
Series 2917 | ||
Electrolyte Type Solid | ||
Terminal Type SMT | ||
Maximum Operating Temperature +125°C | ||
Dielectric Material Family Tantalum | ||
Dissipation Factor 6% | ||
Polarised Polar | ||
Surge Voltage 16 V dc @ +125 °C, 26 V dc @ +85 °C | ||
Leakage Current 13.6 μA | ||
Minimum Operating Temperature -55°C | ||
TPS Series 20 to 50Vdc
The TPS series of low ESR SMD capacitors from AVX are designed for use mainly in power supply applications. The TPS series of capacitor are available in 14 different case sizes.
Low ESR (equivalent series resistance)
High ripple current capability
Low power and heat dissipation
High ripple current capability
Low power and heat dissipation
