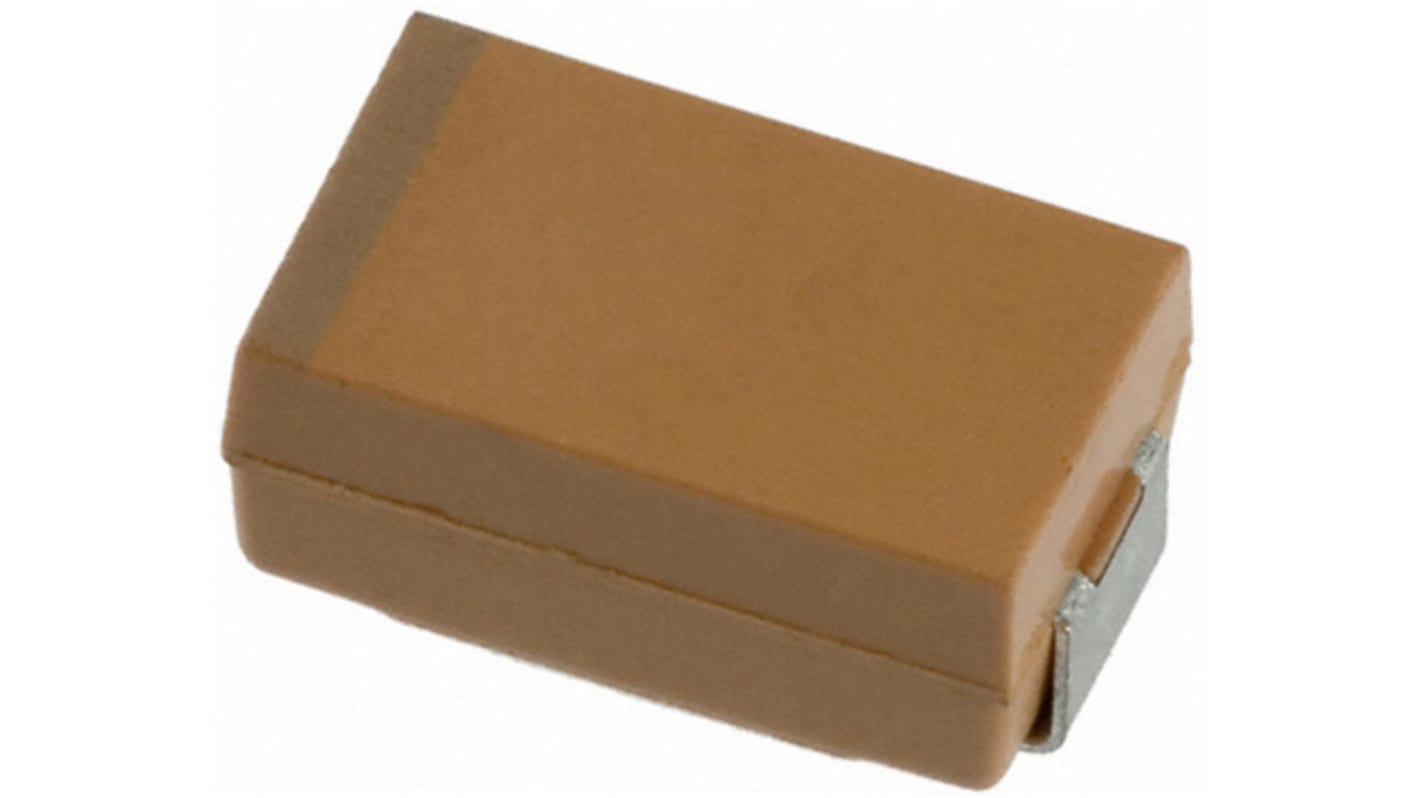

KYOCERA AVX 1μF Electrolytic Tantalum Capacitor 10V dc, TPS Series
- RS Stock No.:
- 135-8402P
- Mfr. Part No.:
- TPSR105K010R9000
- Brand:
- KYOCERA AVX
Bulk discount available
Subtotal 100 units (supplied on a continuous strip)*
£34.70
(exc. VAT)
£41.60
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 100 - 190 | £0.347 |
| 200 + | £0.308 |
*price indicative
- RS Stock No.:
- 135-8402P
- Mfr. Part No.:
- TPSR105K010R9000
- Brand:
- KYOCERA AVX
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KYOCERA AVX | |
| Technology | Electrolytic | |
| Capacitance | 1µF | |
| Voltage | 10V dc | |
| Mounting Type | Surface Mount | |
| Package/Case | 0805 (2012M) | |
| Equivalent Series Resistance | 9Ω | |
| Lead Pitch | 0.85mm | |
| Length | 2.05mm | |
| Height | 1.2mm | |
| Dimensions | 2.05 x 1.3 x 1.2mm | |
| Series | TPS | |
| Electrolyte Type | Solid | |
| Maximum Operating Temperature | +125°C | |
| Dielectric Material Family | Tantalum | |
| Surge Voltage | 13 V dc @ +85 °C, 8 V dc @ +125 °C | |
| Polarised | Polar | |
| Leakage Current | 0.5 μA | |
| Dissipation Factor | 4% | |
| Minimum Operating Temperature | -55°C | |
| Terminal Type | SMT | |
Select all | ||
|---|---|---|
Brand KYOCERA AVX | ||
Technology Electrolytic | ||
Capacitance 1µF | ||
Voltage 10V dc | ||
Mounting Type Surface Mount | ||
Package/Case 0805 (2012M) | ||
Equivalent Series Resistance 9Ω | ||
Lead Pitch 0.85mm | ||
Length 2.05mm | ||
Height 1.2mm | ||
Dimensions 2.05 x 1.3 x 1.2mm | ||
Series TPS | ||
Electrolyte Type Solid | ||
Maximum Operating Temperature +125°C | ||
Dielectric Material Family Tantalum | ||
Surge Voltage 13 V dc @ +85 °C, 8 V dc @ +125 °C | ||
Polarised Polar | ||
Leakage Current 0.5 μA | ||
Dissipation Factor 4% | ||
Minimum Operating Temperature -55°C | ||
Terminal Type SMT | ||
AVX TPS Series of Tantalum Capacitors
The TPS series from AVX offers a wide range of low ESR solid electrolyte capacitors. These robust capacitors have a CV range 0.15-1500μF / 2.5-50V and are available in 14 different case sizes. AVX’s TPS Mn02 capacitors are an excellent choice for power supply applications as well as medium power DC/DC converters.
Features & Benefits
Low ESR series of solid electrolyte capacitors
CV range 0.15-1500μF / 2.5-50V
Available in 14 different case sizes
CV range 0.15-1500μF / 2.5-50V
Available in 14 different case sizes
Applications
Power supply applications
Medium power DC/DC converters
Medium power DC/DC converters
Axial 125°C (Tantalum)
