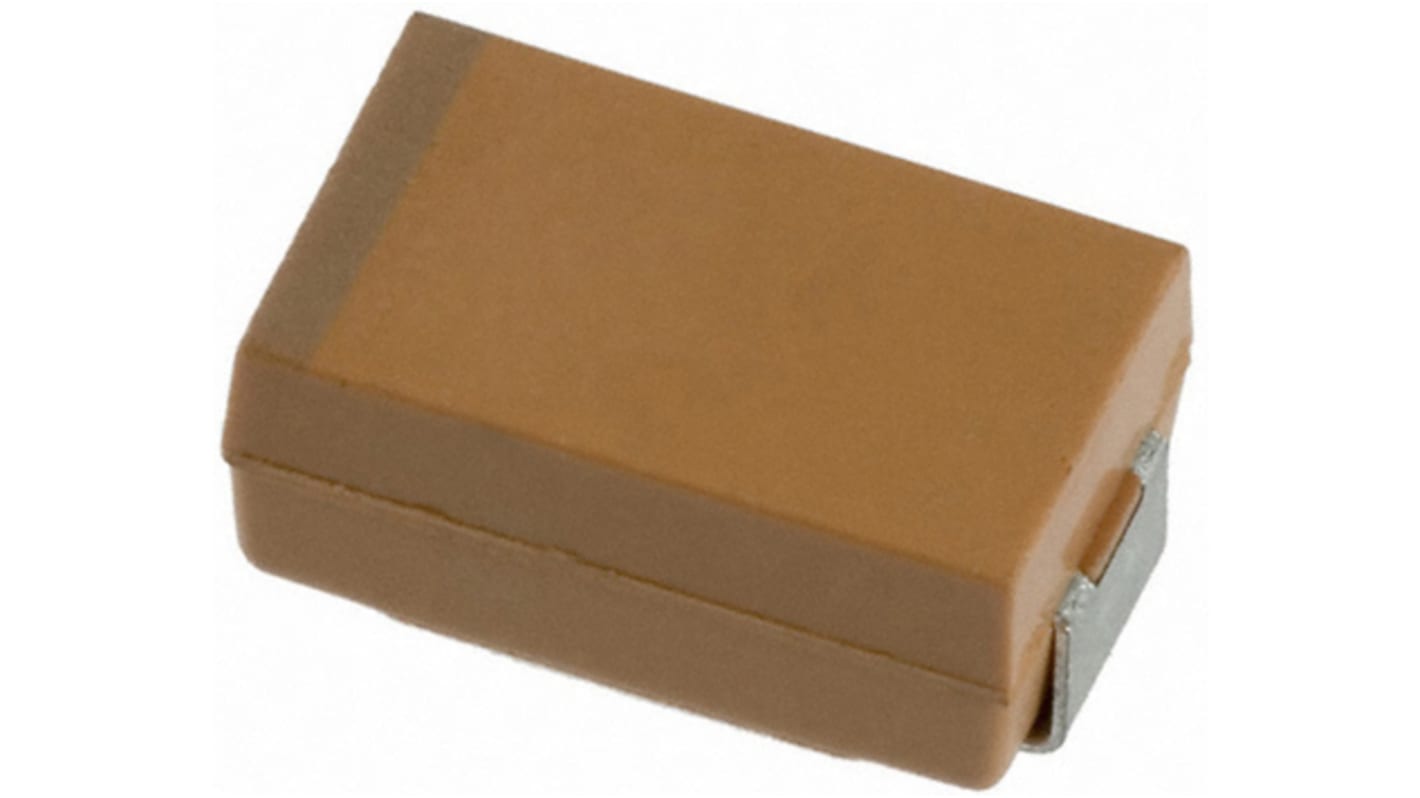

AVX 470μF 10V dc Tantalum Capacitor Electrolytic Solid TPS Series
- RS Stock No.:
- 135-8381P
- Mfr. Part No.:
- TPSE477K010R0050
- Brand:
- KYOCERA AVX
Bulk discount available
Subtotal 50 units (supplied on a continuous strip)*
£106.00
(exc. VAT)
£127.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 310 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 50 - 98 | £2.12 |
| 100 - 198 | £1.985 |
| 200 - 398 | £1.845 |
| 400 + | £1.695 |
*price indicative
- RS Stock No.:
- 135-8381P
- Mfr. Part No.:
- TPSE477K010R0050
- Brand:
- KYOCERA AVX
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KYOCERA AVX | |
| Technology | Electrolytic | |
| Capacitance | 470µF | |
| Voltage | 10V dc | |
| Mounting Type | Surface Mount | |
| Package/Case | 2917 | |
| Equivalent Series Resistance | 50mΩ | |
| Lead Pitch | 4.4mm | |
| Length | 7.3mm | |
| Height | 4.1mm | |
| Dimensions | 7.3 x 4.3 x 4.1mm | |
| Series | TPS | |
| Electrolyte Type | Solid | |
| Dissipation Factor | 10% | |
| Minimum Operating Temperature | -55°C | |
| Leakage Current | 28 μA | |
| Surge Voltage | 13 V dc @ +85 °C, 8 V dc @ +125 °C | |
| Polarised | Polar | |
| Dielectric Material Family | Tantalum | |
| Maximum Operating Temperature | +125°C | |
| Terminal Type | SMT | |
Select all | ||
|---|---|---|
Brand KYOCERA AVX | ||
Technology Electrolytic | ||
Capacitance 470µF | ||
Voltage 10V dc | ||
Mounting Type Surface Mount | ||
Package/Case 2917 | ||
Equivalent Series Resistance 50mΩ | ||
Lead Pitch 4.4mm | ||
Length 7.3mm | ||
Height 4.1mm | ||
Dimensions 7.3 x 4.3 x 4.1mm | ||
Series TPS | ||
Electrolyte Type Solid | ||
Dissipation Factor 10% | ||
Minimum Operating Temperature -55°C | ||
Leakage Current 28 μA | ||
Surge Voltage 13 V dc @ +85 °C, 8 V dc @ +125 °C | ||
Polarised Polar | ||
Dielectric Material Family Tantalum | ||
Maximum Operating Temperature +125°C | ||
Terminal Type SMT | ||
TPS Series 10 to 16Vdc
The TPS series of low ESR SMD capacitors from AVX are designed for use mainly in power supply applications. The TPS series of capacitor is available with 14 different case size options.
Low ESR (equivalent series resistance)
High ripple current capability
Low power and heat dissipation
High ripple current capability
Low power and heat dissipation
