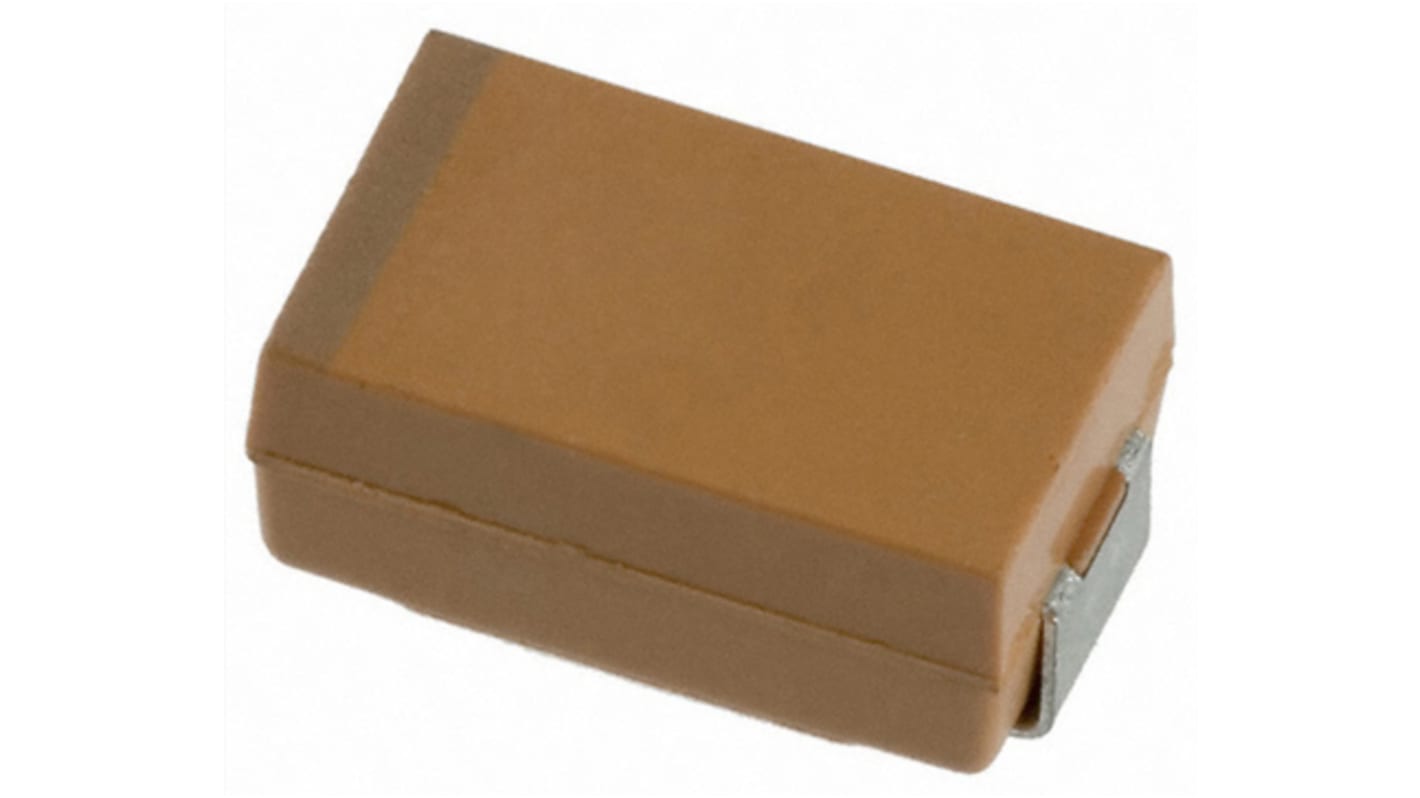

KYOCERA AVX 150μF Electrolytic Tantalum Capacitor 10V dc, TPS Series

RS Stock No.:: 135-4335
Mfr. Part No.:: TPSD157M010R0100
Brand:: KYOCERA AVX

KYOCERA AVX 150μF Electrolytic Tantalum Capacitor 10V dc, TPS Series

Available to back order for despatch when stock is available

Price Each (On a Reel of 500)

£0.843

(exc. VAT)

£1.012

(inc. VAT)

Units	Per unit	Per Reel*
500 - 2000	£0.843	£421.50
2500 - 4500	£0.775	£387.50
5000 +	£0.733	£366.50

*price indicative

RS Stock No.:: 135-4335
Mfr. Part No.:: TPSD157M010R0100
Brand:: KYOCERA AVX

Technical Reference

Legislation and Compliance

COO (Country of Origin):: CZ

Product Details

AVX TPS (D) Series of Tantalum Capacitors

The TPS series from AVX offers a wide range of low ESR solid electrolyte capacitors. These robust capacitors have a CV range 0.15-1500μF / 2.5-50V and are available in 14 different case sizes. AVX’s TPS Mn02 capacitors are an excellent choice for power supply applications as well as medium power DC/DC converters.

Features & Benefits

Low ESR series of solid electrolyte capacitors
CV range 0.15-1500μF / 2.5-50V
Available in 14 different case sizes

Applications

Power supply applications
Medium power DC/DC converters

Axial 125°C (Tantalum)

Specifications

Attribute	Value
Technology	Electrolytic
Capacitance	150µF
Voltage	10V dc
Mounting Type	Surface Mount
Package/Case	2917
Equivalent Series Resistance	100mΩ
Lead Pitch	4.4mm
Length	7.3mm
Height	2.9mm
Dimensions	7.3 x 4.3 x 2.9mm
Series	TPS
Electrolyte Type	Solid
Maximum Operating Temperature	+125°C
Surge Voltage	13 V dc @ ≤+85 °C, 8 V dc @ ≤+125 °C
Dielectric Material Family	Tantalum
Minimum Operating Temperature	-55°C
Leakage Current	15 μA
Terminal Type	SMT
Polarised	Polar
Dissipation Factor	8%
