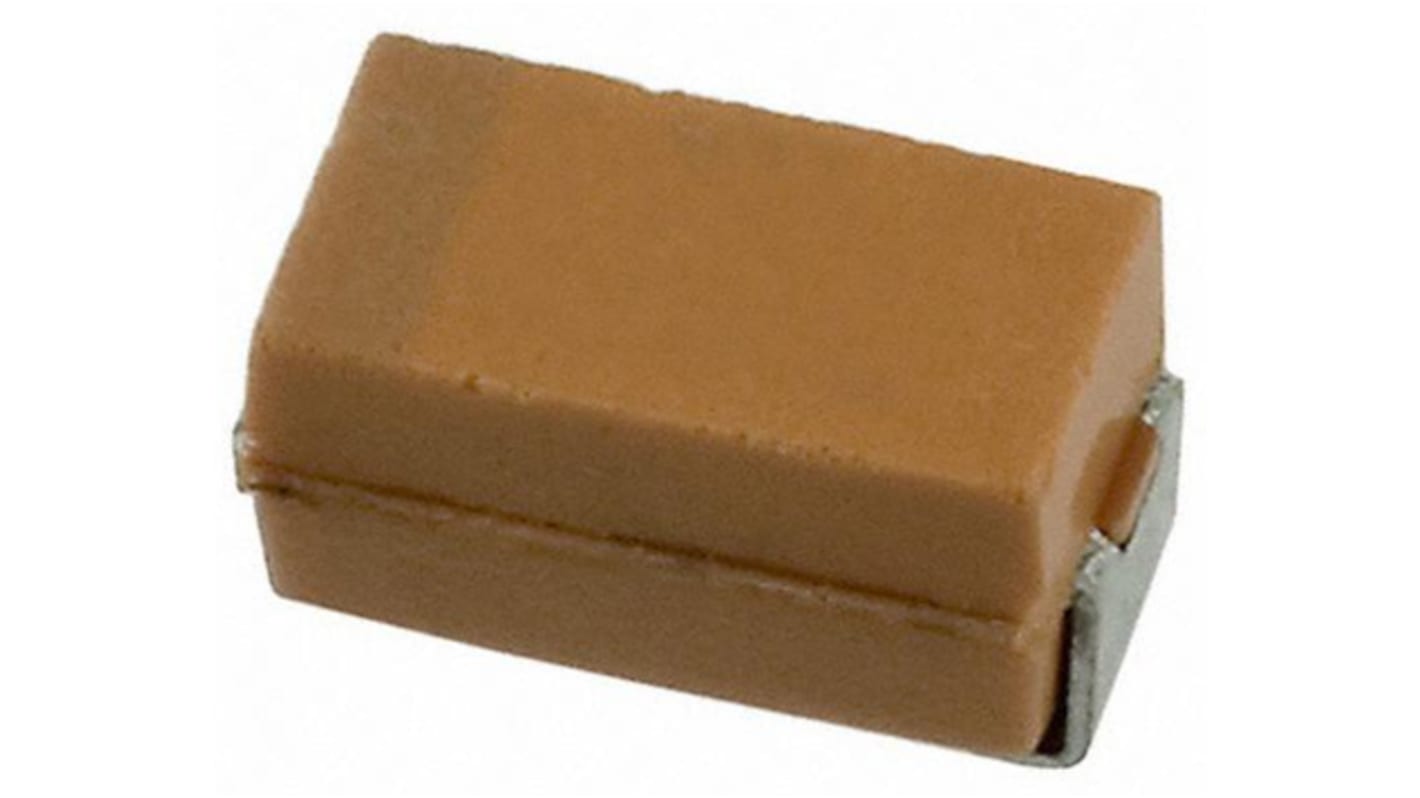

KYOCERA AVX 22μF Electrolytic Tantalum Capacitor 6.3V dc, TAJ Series
- RS Stock No.:
- 135-4031
- Mfr. Part No.:
- TAJA226M006RNJ
- Brand:
- KYOCERA AVX
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each (On a Reel of 2000)
£0.101
(exc. VAT)
£0.121
(inc. VAT)
| Units | Per unit | Per Reel* |
| 2000 - 4000 | £0.101 | £202.00 |
| 6000 + | £0.096 | £192.00 |
| *price indicative | ||
- RS Stock No.:
- 135-4031
- Mfr. Part No.:
- TAJA226M006RNJ
- Brand:
- KYOCERA AVX
Technical Reference
Legislation and Compliance
Product Details
TAJ Standard Series 2.5 to 16Vdc
TAJ Series are General Purpose SMT Chip Tantalum Capacitors
7 case sizes available
Low profile options available
CV range: 0.10-2200μF / 2.5-50V
Applications include General low power DC/DC and Low Drop Out regulator
7 case sizes available
Low profile options available
CV range: 0.10-2200μF / 2.5-50V
Applications include General low power DC/DC and Low Drop Out regulator
Specifications
Attribute | Value |
|---|---|
| Technology | Electrolytic |
| Capacitance | 22µF |
| Voltage | 6.3V dc |
| Mounting Type | Surface Mount |
| Package/Case | 1206 (3216M) |
| Equivalent Series Resistance | 3Ω |
| Lead Pitch | 1.1mm |
| Tolerance | ±20% |
| Length | 3.2mm |
| Depth | 1.6mm |
| Height | 1.6mm |
| Dimensions | 3.2 x 1.6 x 1.6mm |
| Series | TAJ |
| Maximum Operating Temperature | +125°C |
| Electrolyte Type | Solid |
| Terminal Type | SMT |
| Tolerance Plus | +20% |
| Surge Voltage | 5 V dc @ +125 °C, 8 V dc @ +85 °C |
| Polarised | Polar |
| Tolerance Minus | -20% |
| Minimum Operating Temperature | -55°C |
| Dissipation Factor | 6% |
| Leakage Current | 1.4 μA |
| Dielectric Material Family | Tantalum |
