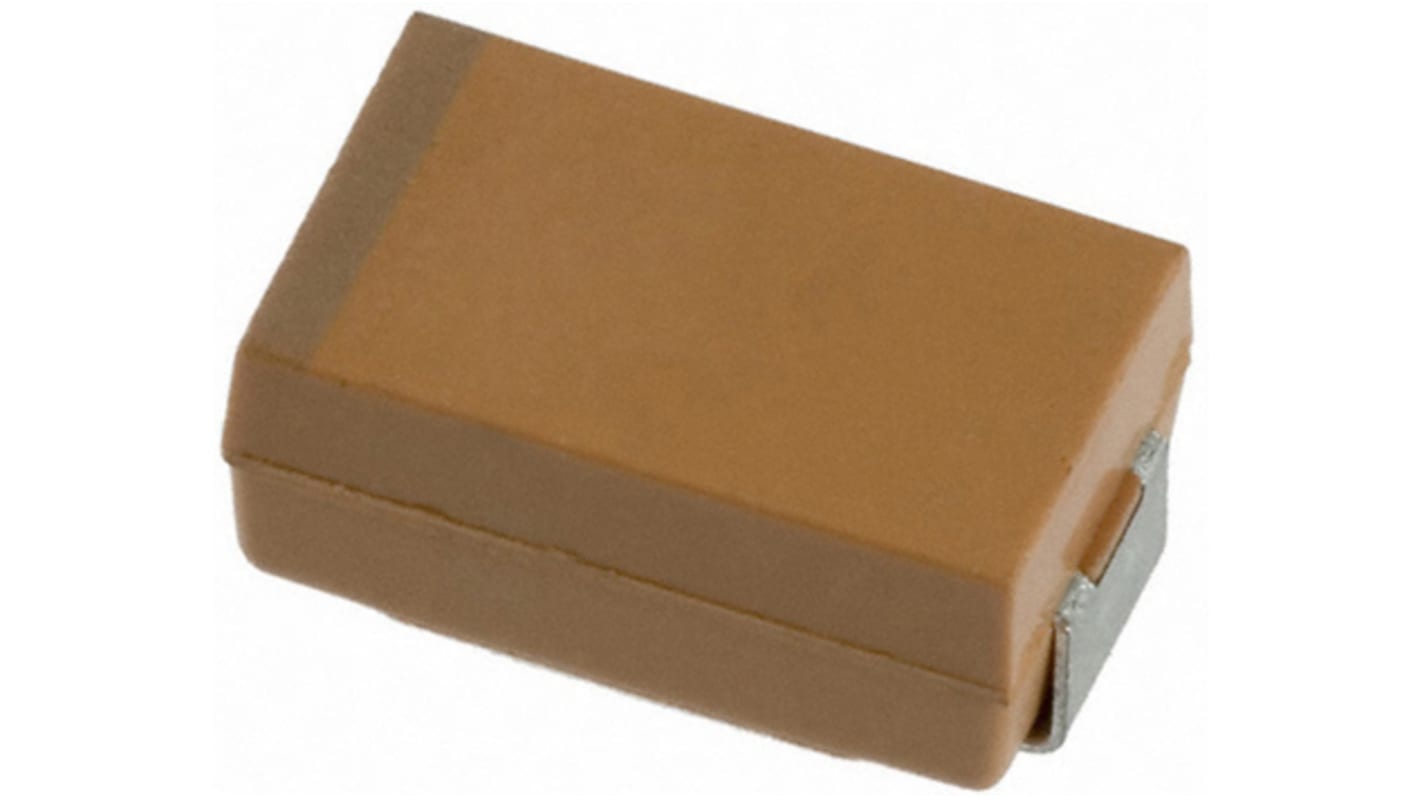

AVX 68μF 25V dc Tantalum Capacitor Electrolytic Solid TPS Series
- RS Stock No.:
- 135-0346
- Mfr. Part No.:
- TPSE686K025R0125
- Brand:
- KYOCERA AVX
Subtotal (1 reel of 400 units)*
£560.00
(exc. VAT)
£672.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
---|---|---|
400 + | £1.40 | £560.00 |
*price indicative
- RS Stock No.:
- 135-0346
- Mfr. Part No.:
- TPSE686K025R0125
- Brand:
- KYOCERA AVX
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | KYOCERA AVX | |
Technology | Electrolytic | |
Capacitance | 68µF | |
Voltage | 25V dc | |
Mounting Type | Surface Mount | |
Package/Case | 2917 | |
Equivalent Series Resistance | 125mΩ | |
Lead Pitch | 4.4mm | |
Length | 7.3mm | |
Height | 4.1mm | |
Dimensions | 7.3 x 4.3 x 4.1mm | |
Series | TPS | |
Electrolyte Type | Solid | |
Maximum Operating Temperature | +125°C | |
Dielectric Material Family | Tantalum | |
Dissipation Factor | 6% | |
Leakage Current | 17 μA | |
Polarised | Polar | |
Terminal Type | SMT | |
Minimum Operating Temperature | -55°C | |
Surge Voltage | 20 V dc @ ≤+125 °C, 32 V dc @ ≤+85 °C | |
Select all | ||
---|---|---|
Brand KYOCERA AVX | ||
Technology Electrolytic | ||
Capacitance 68µF | ||
Voltage 25V dc | ||
Mounting Type Surface Mount | ||
Package/Case 2917 | ||
Equivalent Series Resistance 125mΩ | ||
Lead Pitch 4.4mm | ||
Length 7.3mm | ||
Height 4.1mm | ||
Dimensions 7.3 x 4.3 x 4.1mm | ||
Series TPS | ||
Electrolyte Type Solid | ||
Maximum Operating Temperature +125°C | ||
Dielectric Material Family Tantalum | ||
Dissipation Factor 6% | ||
Leakage Current 17 μA | ||
Polarised Polar | ||
Terminal Type SMT | ||
Minimum Operating Temperature -55°C | ||
Surge Voltage 20 V dc @ ≤+125 °C, 32 V dc @ ≤+85 °C | ||
TPS Series 20 to 50Vdc
The TPS series of low ESR SMD capacitors from AVX are designed for use mainly in power supply applications. The TPS series of capacitor are available in 14 different case sizes.
Low ESR (equivalent series resistance)
High ripple current capability
Low power and heat dissipation
High ripple current capability
Low power and heat dissipation
