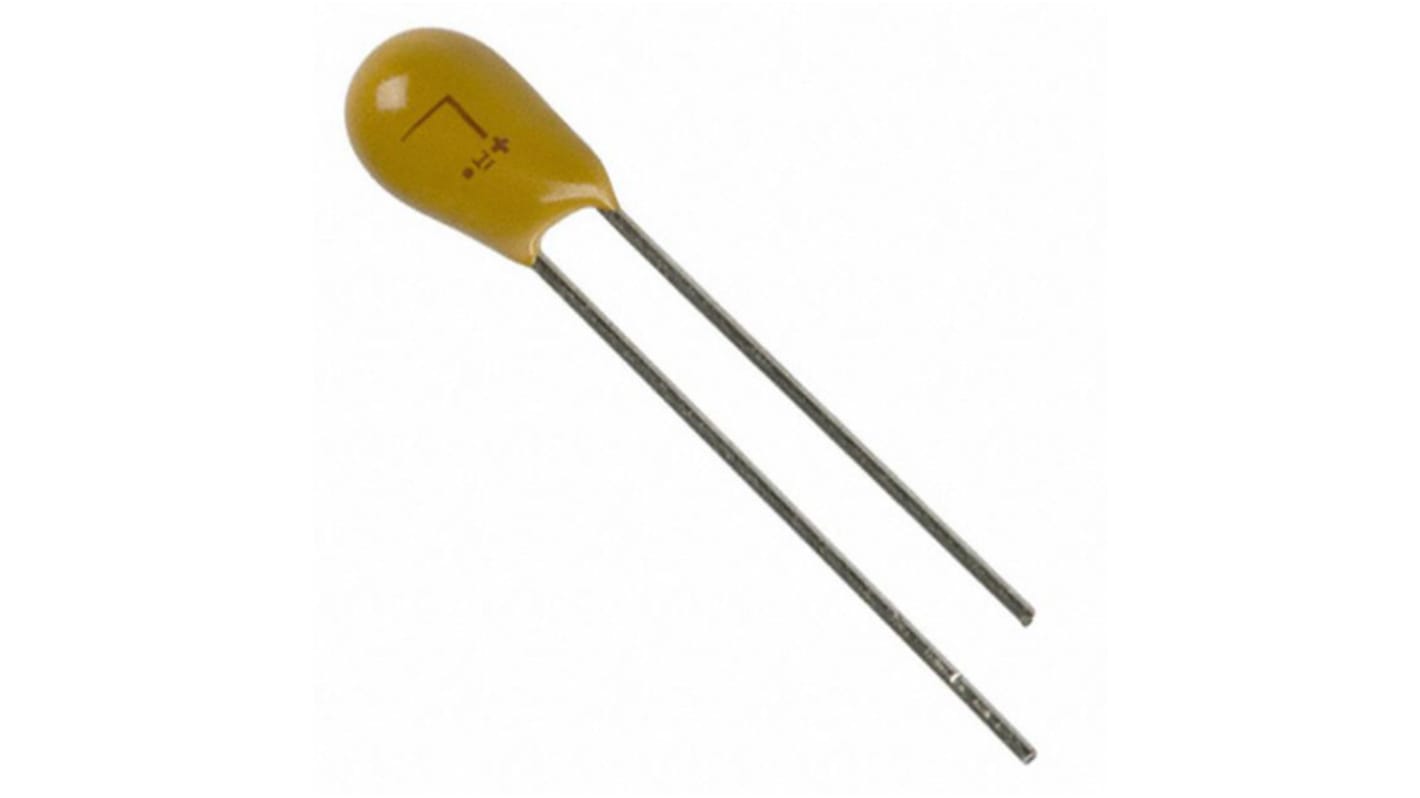

KYOCERA AVX 10μF Tantalum Capacitor 35V dc, TAP Series
- RS Stock No.:
- 134-9843
- Mfr. Part No.:
- TAP106K035SCS
- Brand:
- KYOCERA AVX
Bulk discount available
Subtotal (1 bag of 10 units)*
£6.28
(exc. VAT)
£7.54
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 240 unit(s) ready to ship
- Plus 200 unit(s) ready to ship from another location
- Plus 120 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 10 - 40 | £0.628 | £6.28 |
| 50 - 90 | £0.565 | £5.65 |
| 100 + | £0.515 | £5.15 |
*price indicative
- RS Stock No.:
- 134-9843
- Mfr. Part No.:
- TAP106K035SCS
- Brand:
- KYOCERA AVX
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | KYOCERA AVX | |
| Capacitance | 10µF | |
| Voltage | 35V dc | |
| Mounting Type | Through Hole | |
| Equivalent Series Resistance | 2Ω | |
| Lead Pitch | 2.5mm | |
| Tolerance | ±10% | |
| Height | 10mm | |
| Dimensions | 6 (Dia.) x 10mm | |
| Series | TAP | |
| Electrolyte Type | Solid | |
| Maximum Operating Temperature | +125°C | |
| Surge Voltage | 65 V @ +85 °C | |
| Tolerance Plus | +10% | |
| Lead Diameter | 0.5mm | |
| Dielectric Material Family | Tantalum | |
| Minimum Operating Temperature | -55°C | |
| Dissipation Factor | 8% | |
| Terminal Type | Radial | |
| Diameter | 6mm | |
| Tolerance Minus | -10% | |
| Leakage Current | 2.8 μA | |
| Polarised | Polar | |
Select all | ||
|---|---|---|
Brand KYOCERA AVX | ||
Capacitance 10µF | ||
Voltage 35V dc | ||
Mounting Type Through Hole | ||
Equivalent Series Resistance 2Ω | ||
Lead Pitch 2.5mm | ||
Tolerance ±10% | ||
Height 10mm | ||
Dimensions 6 (Dia.) x 10mm | ||
Series TAP | ||
Electrolyte Type Solid | ||
Maximum Operating Temperature +125°C | ||
Surge Voltage 65 V @ +85 °C | ||
Tolerance Plus +10% | ||
Lead Diameter 0.5mm | ||
Dielectric Material Family Tantalum | ||
Minimum Operating Temperature -55°C | ||
Dissipation Factor 8% | ||
Terminal Type Radial | ||
Diameter 6mm | ||
Tolerance Minus -10% | ||
Leakage Current 2.8 μA | ||
Polarised Polar | ||
TAP Series
A range of solid tantalum capacitors in various sizes, styles and ratings. Series consists of a resin dipped radial capacitors rated at 85°C (125°C with voltage derating). The 15 case sizes with wide capacitance and working voltage ranges means that the TAP can accommodate almost any application.
Features and Benefits:
Manufactured with a flame retardant coating
Exceptional temperature stability
Low leakage current and impedance
Manufactured with a flame retardant coating
Exceptional temperature stability
Low leakage current and impedance
