- RS Stock No.:
- 703-8765
- Mfr. Part No.:
- 500NHG3B
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Current Rating | 500A | |
Fuse Size | NH01 | |
Voltage Rating | 500V ac | |
Fuse Standard | DIN 43620-1, DIN 43620-3, IEC 60269, VDE 0636 | |
Application Category | gG - gL | |
Tag Width | 6mm | |
High Rupture Capacity | Yes | |
Overall Length | 150mm | |
Tag Type | Blade | |
Tag Orientation | Centred | |
Body Length | 75mm | |
Body Width | 71mm | |
Body Height | 75mm | |
Series | Eaton Bussmann | |
Select all | ||
---|---|---|
Brand Eaton | ||
Current Rating 500A | ||
Fuse Size NH01 | ||
Voltage Rating 500V ac | ||
Fuse Standard DIN 43620-1, DIN 43620-3, IEC 60269, VDE 0636 | ||
Application Category gG - gL | ||
Tag Width 6mm | ||
High Rupture Capacity Yes | ||
Overall Length 150mm | ||
Tag Type Blade | ||
Tag Orientation Centred | ||
Body Length 75mm | ||
Body Width 71mm | ||
Body Height 75mm | ||
Series Eaton Bussmann | ||
- COO (Country of Origin):
- IN

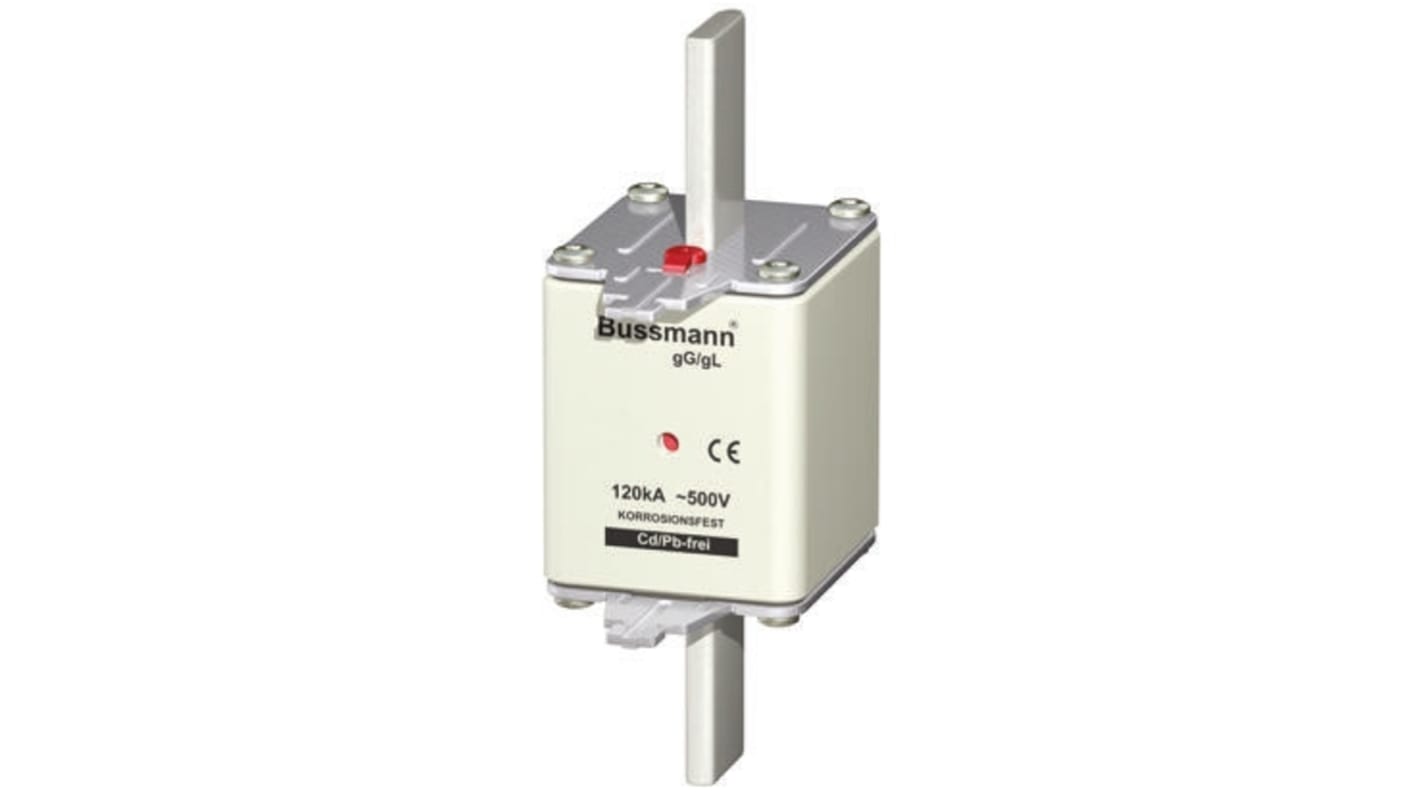

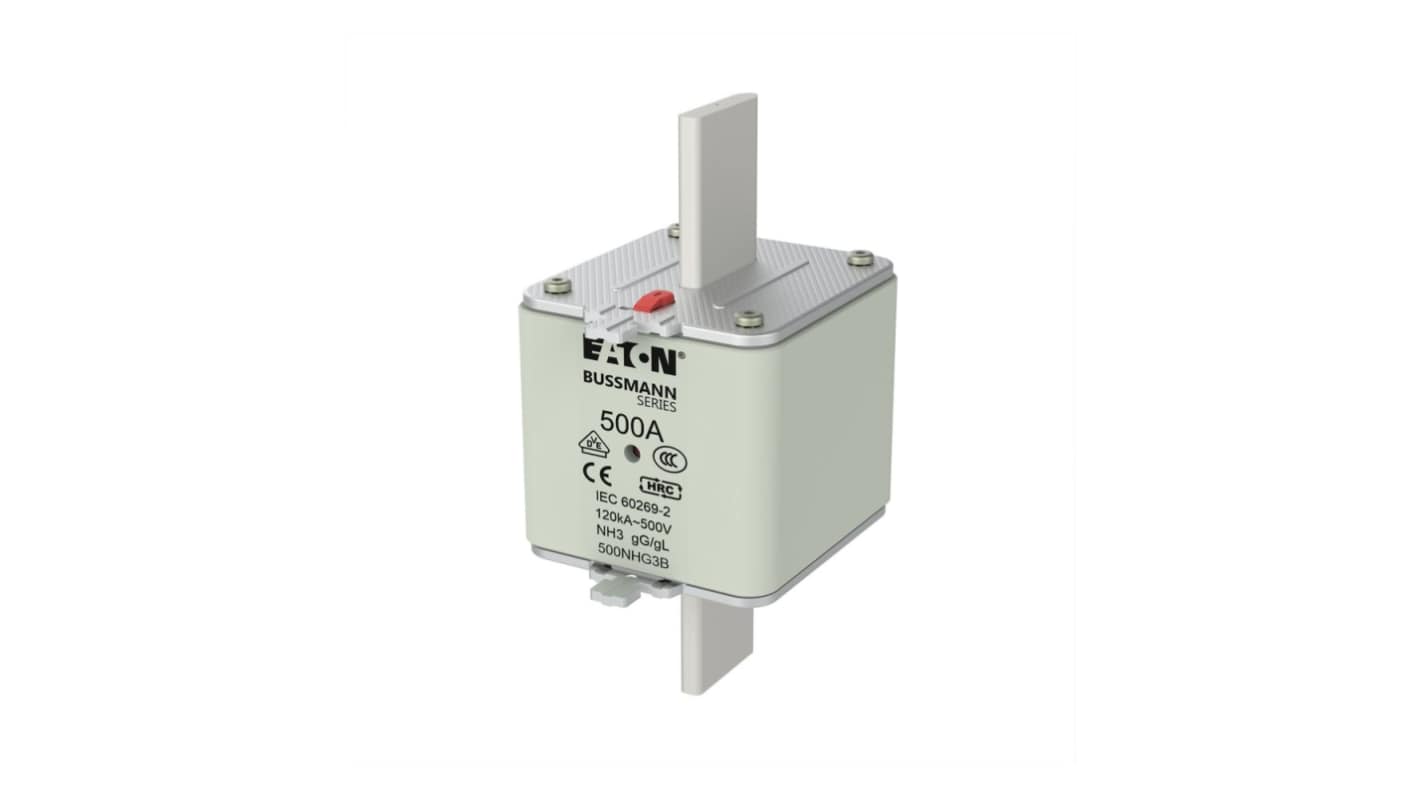

Eaton Centred Tag Fuse, 500A Current Rating, 500V AC Voltage Rating - 500NHG3B
This centred tag fuse is a robust component designed for electrical safety and efficiency. It features a current rating of 500A and a voltage rating of 500V AC, making it suitable for high-powered applications. With a DIN NH01 size, it measures 150mm in overall length and 71mm in body width. The high rupture capacity design ensures reliable operation and protection against overcurrent scenarios.
Features & Benefits
• Complies with DIN 43620 and IEC 60269 standards for safety
• Full contact silver-plated brass blades for enhanced conductivity
• Designed with corrosion-resistant materials for durability
• High rupture capacity offers superior protection against faults
• Centred blade orientation facilitates easy installation
• Suitable for various industrial applications, enhancing versatility
• Full contact silver-plated brass blades for enhanced conductivity
• Designed with corrosion-resistant materials for durability
• High rupture capacity offers superior protection against faults
• Centred blade orientation facilitates easy installation
• Suitable for various industrial applications, enhancing versatility
Applications
• Used in automation systems requiring dependable protection
• Ideal for electrical panels in commercial settings
• Utilised in machinery where high current reliability is essential
• Effective in mechanical equipment circuits to safeguard components
• Ideal for electrical panels in commercial settings
• Utilised in machinery where high current reliability is essential
• Effective in mechanical equipment circuits to safeguard components
What are the implications of high rupture capacity in operational settings?
The high rupture capacity enables the fuse to manage sudden overloads without failing catastrophically, ensuring that equipment remains protected and operational stability is maintained. This feature is crucial in high-demand environments where equipment can experience unexpected surge currents.
How does the material selection affect the durability of the fuse?
The fuse's body is made from corrosion-resistant aluminium, coupled with steel screws that resist degradation. This choice of materials ensures a longer service life and reliable performance even in harsh conditions.
What specific advantages does the DIN NH01 size provide for installations?
The DIN NH01 size is standardised for compatibility with a wide range of fuse holders and bases, streamlining installations and maintenance across various setups, thus enhancing operational efficiency.
Note
Eaton formerly known as Bussmann
