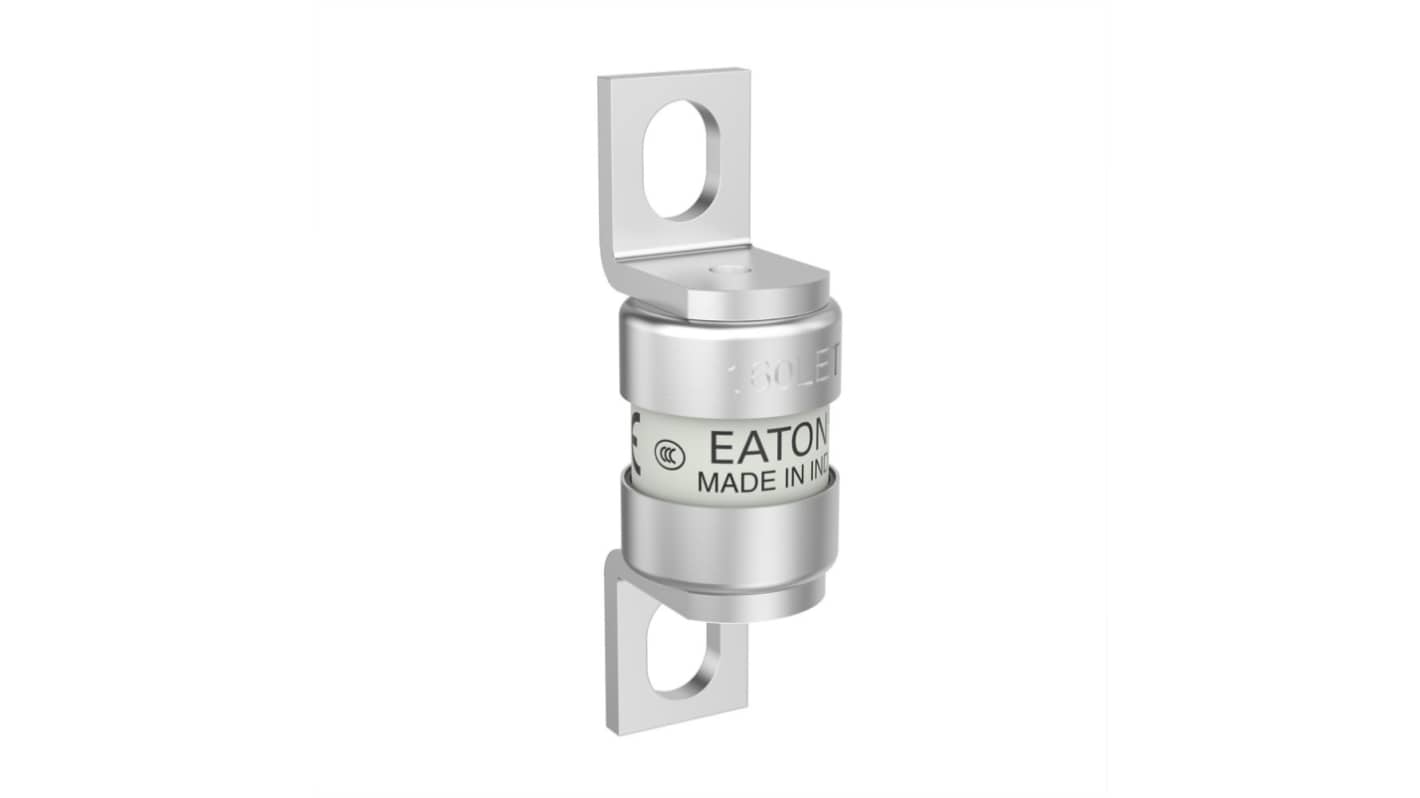

Eaton 160A Bolted Tag Fuse, 18 x 56mm, 240 V ac, 150V dc, 41.8mm
- RS Stock No.:
- 182-1605
- Mfr. Part No.:
- 160LET
- Brand:
- Eaton
Bulk discount available
Subtotal (1 unit)*
£21.20
(exc. VAT)
£25.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 41 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
- Plus 6 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £21.20 |
5 - 9 | £20.15 |
10 + | £18.87 |
*price indicative
- RS Stock No.:
- 182-1605
- Mfr. Part No.:
- 160LET
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Current Rating | 160A | |
Fuse Size | 18 x 56mm | |
Voltage Rating | 240 V ac, 150V dc | |
Fuse Standard | BS88, IEC 269-4 | |
Fixing Centres | 41.8mm | |
Application Category | aR | |
Tag Width | 12.7mm | |
High Rupture Capacity | Yes | |
Overall Length | 56mm | |
Tag Type | Bolted | |
Body Diameter | 17.7mm | |
Tag Orientation | Offset | |
Body Length | 26.2mm | |
Body Height | 19.1mm | |
Fuse Dimensions | 17.7 x 26.2mm | |
Series | Eaton Bussmann | |
Select all | ||
---|---|---|
Brand Eaton | ||
Current Rating 160A | ||
Fuse Size 18 x 56mm | ||
Voltage Rating 240 V ac, 150V dc | ||
Fuse Standard BS88, IEC 269-4 | ||
Fixing Centres 41.8mm | ||
Application Category aR | ||
Tag Width 12.7mm | ||
High Rupture Capacity Yes | ||
Overall Length 56mm | ||
Tag Type Bolted | ||
Body Diameter 17.7mm | ||
Tag Orientation Offset | ||
Body Length 26.2mm | ||
Body Height 19.1mm | ||
Fuse Dimensions 17.7 x 26.2mm | ||
Series Eaton Bussmann | ||
- COO (Country of Origin):
- IN
Eaton British Standard Fuse, 160A Current Rating, 240V AC Voltage Rating - 160LET
This British Standard Fuse is designed for high-speed protection in various electrical applications. This fuse boasts a current rating of 160A and meets the BS 88 and IEC 269-4 standards. With a compact size of 55 x 18 x 18 mm, it features an offset bolted tag design, ensuring secure mounting and reliable performance.
Features & Benefits
• High rupture capacity allows for robust protection against faults
• Rated for both 280V AC and 150V DC use for versatility
• Designed with a 41.5mm centre-to-centre distance for easy installation
• Utilisation category aR offers semiconductor protection
• Suitable for various applications, including power converters and drives
• Rated for both 280V AC and 150V DC use for versatility
• Designed with a 41.5mm centre-to-centre distance for easy installation
• Utilisation category aR offers semiconductor protection
• Suitable for various applications, including power converters and drives
Applications
• Utilised in semiconductor environments to manage power distribution
• Ideal for connecting DC drives and common bus systems
• Implemented in power converters and rectifiers for efficient operation
• Ideal for connecting DC drives and common bus systems
• Implemented in power converters and rectifiers for efficient operation
What are the advantages of using this type of electrical component?
The design offers high rupture capacity, enhancing safety in electrical systems by effectively managing fault conditions and preventing damage to other components.
How does the breaking capacity influence performance in real-world situations?
With a breaking capacity of 200kA, it can handle significant fault currents, ensuring protection during unexpected overload scenarios, thus safeguarding connected equipment.
What connections are compatible with this fuse model?
The fuse supports blade end connections, making it versatile for various installation needs, facilitating seamless integration into existing electrical setups.
Note
Eaton formerly known as Bussmann
