Subtotal (1 box of 20 units)*
£105.83
(exc. VAT)
£127.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 999,999,998 unit(s) shipping from 11 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £105.83 | £5.292 |
*price indicative
- RS Stock No.:
- 181-8530
- Mfr. Part No.:
- ESD6
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Current Rating | 6A | |
| Fuse Size | F2 | |
| Voltage Rating | 550V ac | |
| Fuse Standard | BS88, IEC 60269 | |
| Application Category | gG | |
| Tag Width | 15mm | |
| High Rupture Capacity | Yes | |
| Overall Length | 68mm | |
| Tag Type | Blade | |
| Body Diameter | 13.8mm | |
| Body Length | 35.5mm | |
| Tag Orientation | Offset | |
| Fuse Dimensions | 13.8 x 35.5mm | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Current Rating 6A | ||
Fuse Size F2 | ||
Voltage Rating 550V ac | ||
Fuse Standard BS88, IEC 60269 | ||
Application Category gG | ||
Tag Width 15mm | ||
High Rupture Capacity Yes | ||
Overall Length 68mm | ||
Tag Type Blade | ||
Body Diameter 13.8mm | ||
Body Length 35.5mm | ||
Tag Orientation Offset | ||
Fuse Dimensions 13.8 x 35.5mm | ||
- COO (Country of Origin):
- IN

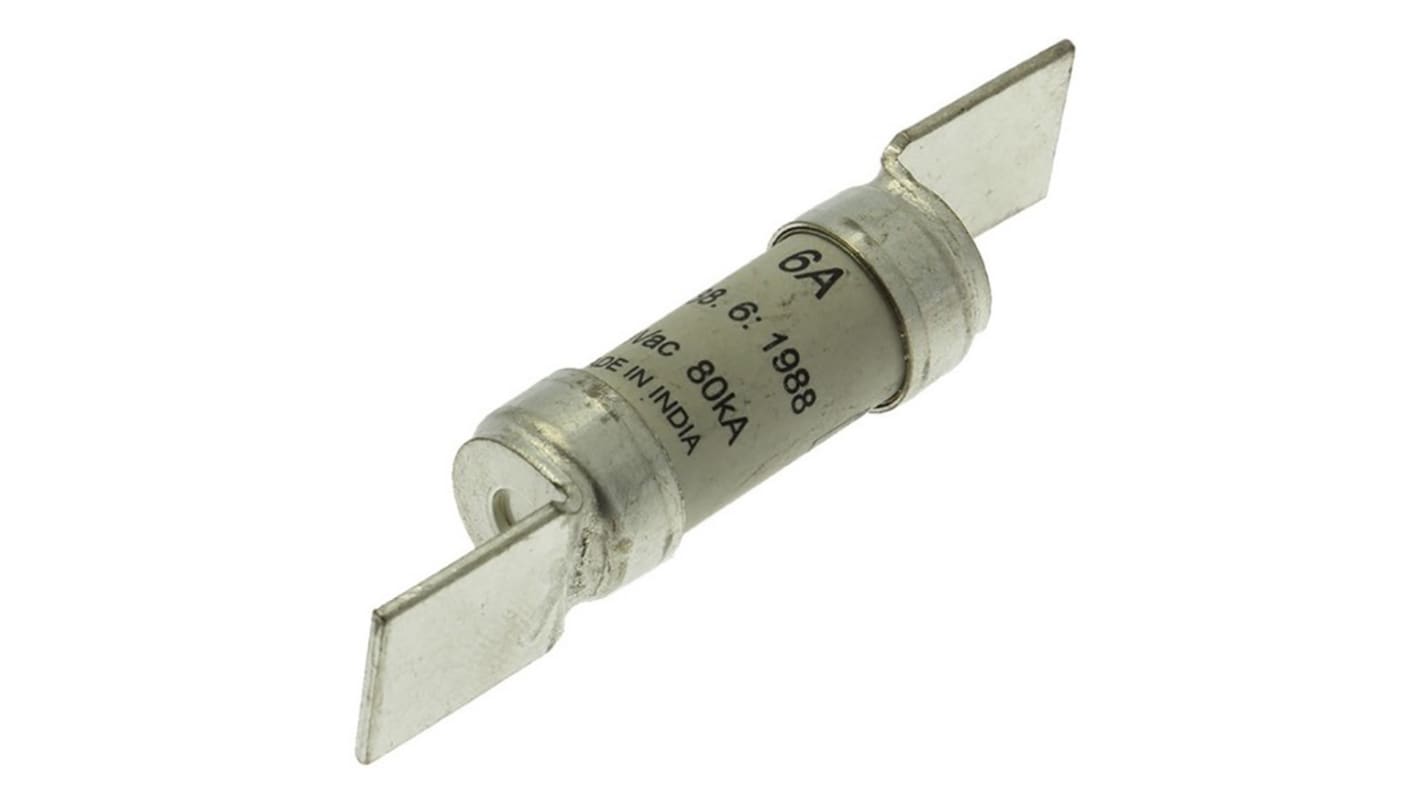

Eaton Bolted Tag Fuse, 6A Current Rating, 550V AC Voltage Rating - ESD6
This bolted tag fuse is designed for low-voltage applications, providing reliable protection in electrical circuits. With a current rating of 6A and a voltage rating of 550V AC, it meets the BS88 and IEC 60269 standards. The fuse dimensions are compact, featuring an offset blade tag design for ease of installation.
Features & Benefits
• High rupture capacity fuse effectively safeguards electrical circuits
• Rated for 6A current ensures compatibility with various devices
• Designed for AC applications up to 550V for versatile use
• Constructed from durable ceramic material for enhanced reliability
• Meets BS88 and IEC 60269 standards for compliance assurance
• Offset tag design allows for easy integration in equipment
• Rated for 6A current ensures compatibility with various devices
• Designed for AC applications up to 550V for versatile use
• Constructed from durable ceramic material for enhanced reliability
• Meets BS88 and IEC 60269 standards for compliance assurance
• Offset tag design allows for easy integration in equipment
Applications
• Suitable for general industrial in electrical installations
• Ideal for protecting motors and transformers in automation systems
• Useful in circuit protection for machines in mechanical setups
• Applicable in low voltage setups within the electrical engineering field
• Ideal for protecting motors and transformers in automation systems
• Useful in circuit protection for machines in mechanical setups
• Applicable in low voltage setups within the electrical engineering field
What is the significance of the high rupture capacity in this fuse?
The high rupture capacity allows the fuse to interrupt high fault currents, preventing equipment damage and ensuring safety in electrical systems.
How does the offset tag design enhance usability?
The offset tag design enables easier connections within compact spaces, resulting in an efficient installation process and better fitting in applications.
What kind of environments can this fuse be utilised in?
It is suitable for a variety of environments, particularly in industrial settings where low voltage and high-performance electrical protection are required.
What are the benefits of using a ceramic body in this fuse?
The ceramic body provides superior thermal resistance and durability, enhancing the fuse's performance and longevity under high-stress conditions.
How does this fuse support compliance with industry standards?
It adheres to BS88 and IEC 60269 standards, ensuring it meets the necessary safety and efficacy requirements for low voltage applications, making it reliable for use across various sectors.
Note
Eaton formerly known as Bussmann
