- RS Stock No.:
- 181-8502
- Mfr. Part No.:
- CD100
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Current Rating | 100A | |
Fuse Size | B1 | |
Voltage Rating | 500V ac | |
Fuse Standard | BS88, IEC 60269 | |
Fixing Centres | 111mm | |
Application Category | gG | |
Tag Width | 14.3mm | |
High Rupture Capacity | Yes | |
Overall Length | 126mm | |
Body Diameter | 21mm | |
Tag Type | Bolted | |
Body Length | 58.5mm | |
Tag Orientation | Centred | |
Body Width | 21mm | |
Body Height | 21mm | |
Fuse Dimensions | 21 x 126 mm | |
Select all | ||
---|---|---|
Brand Eaton | ||
Current Rating 100A | ||
Fuse Size B1 | ||
Voltage Rating 500V ac | ||
Fuse Standard BS88, IEC 60269 | ||
Fixing Centres 111mm | ||
Application Category gG | ||
Tag Width 14.3mm | ||
High Rupture Capacity Yes | ||
Overall Length 126mm | ||
Body Diameter 21mm | ||
Tag Type Bolted | ||
Body Length 58.5mm | ||
Tag Orientation Centred | ||
Body Width 21mm | ||
Body Height 21mm | ||
Fuse Dimensions 21 x 126 mm | ||
- COO (Country of Origin):
- IN

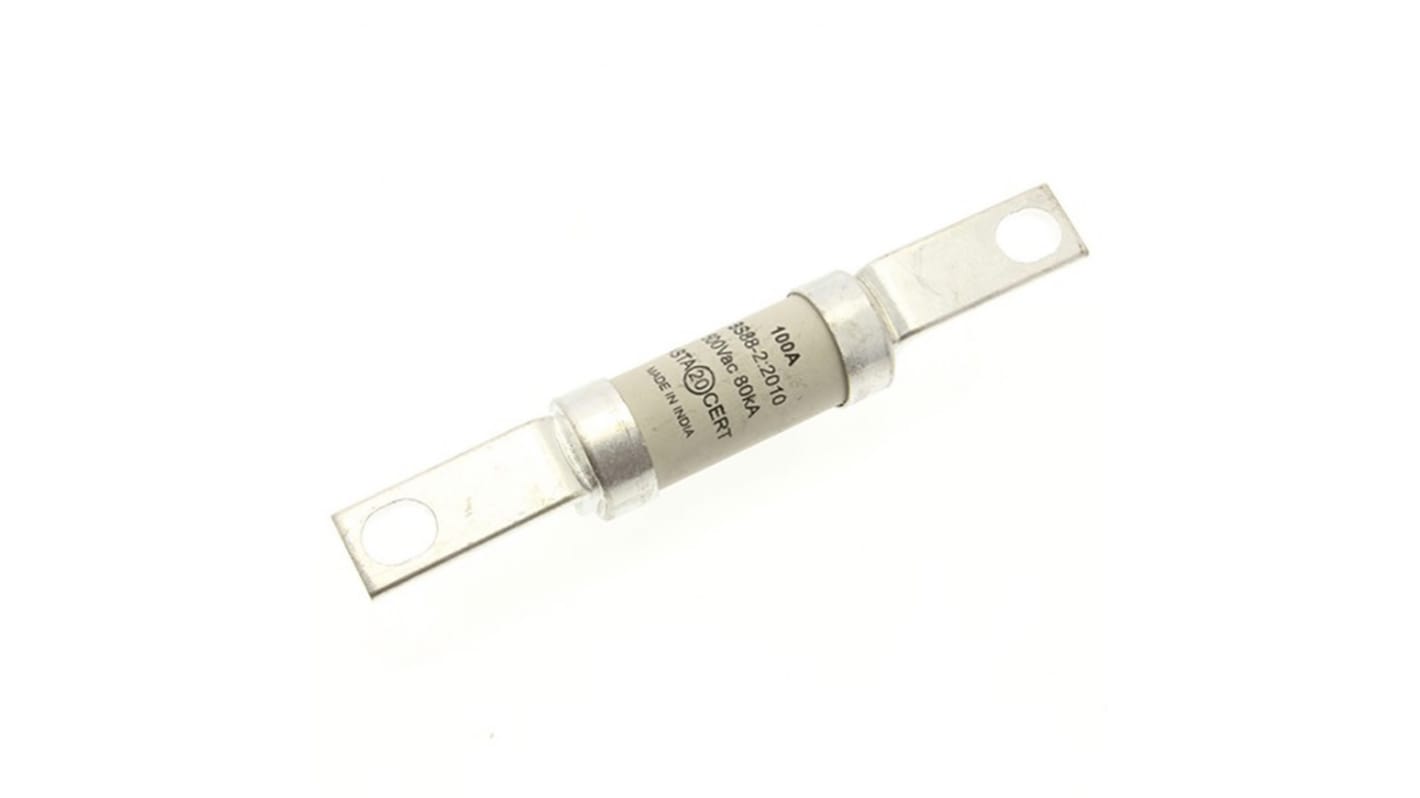

Eaton Bolted Tag Fuse, 100A, 500V AC CD100
Protect your appliances from current overloads with this bolted tag fuse from Eaton. It's secured by brackets that latch it onto the fuse holder and won't be shaken loose during vibration, providing stability in heavy-duty systems. The unit has a rated switching capacity of 80kA, which means it can operate safely within a wide current threshold. With a current rating of 100A, you can rely on it for use in medium-voltage applications. Fuses like this are used in general industrial appliances in need of cable protection.
• Centred tag orientation for quick and easy fitting and replacement
• Compact dimensions of 126 (L) x 21mm (D) for installation in cramped enclosures
• Conductive metal brackets for a reliable connection and corrosion resistance
• Compact dimensions of 126 (L) x 21mm (D) for installation in cramped enclosures
• Conductive metal brackets for a reliable connection and corrosion resistance
What's the rupture capacity for this fuse?
This fuse has a high rupture capacity of 80,000A to interrupt short-circuit and overload currents and provide safety against equipment damages.
What does the gG application category mean?
Good peak let-through current limitation
1:1:6 Selective coordination ratio between minor and major fuse
gG characteristics for cable protection and gM for motor protection applications
1:1:6 Selective coordination ratio between minor and major fuse
gG characteristics for cable protection and gM for motor protection applications
The gG application category means this is a general-purpose fuse that will protect equipment from short-circuit faults.
Note
Eaton formerly known as Bussmann
