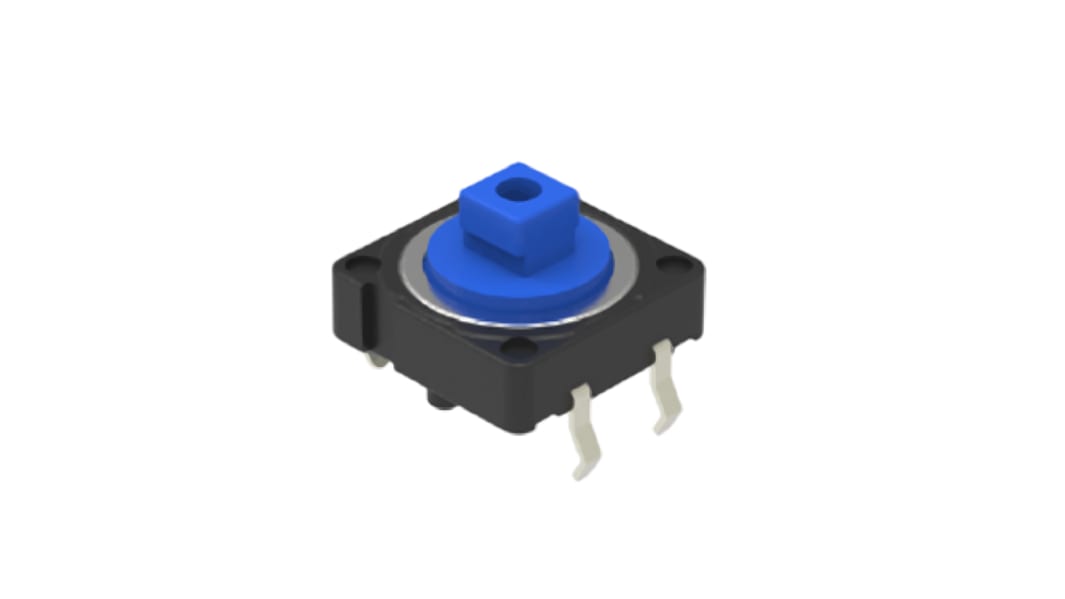

Blue Cap Tactile Switch, SPST 50 mA 3mm Snap-In
- RS Stock No.:
- 917-3851
- Mfr. Part No.:
- SKHCBJA010
- Brand:
- Alps Alpine
170 In stock - FREE next working day delivery available
Added
Price Each (In a Bag of 10)
£0.837
(exc. VAT)
£1.004
(inc. VAT)
| Units | Per unit | Per Bag* |
| 10 - 40 | £0.837 | £8.37 |
| 50 - 90 | £0.635 | £6.35 |
| 100 - 240 | £0.618 | £6.18 |
| 250 - 490 | £0.601 | £6.01 |
| 500 + | £0.584 | £5.84 |
| *price indicative | ||
- RS Stock No.:
- 917-3851
- Mfr. Part No.:
- SKHCBJA010
- Brand:
- Alps Alpine
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Alps SKHC Series Tactile Switch
Alps Tactile or Tact switches are SPST snap action switches to be used with small currents. This series also provide a minimum rating of 10 μA at 1 V dc and a maximum rating of 50 mA at 12 V dc. These Tact switches have SMT terminals, low contact resistance, high contact reliability and come in a wide selection of operating forces and switching travels.
Suitable for use in a wide variety of applications, such as audio & visual equipment and automotive applications.
Available in various actuator types, such as flat stems & joint stems.
Various actuator colours are also available, to ensure your application is covered.
Available in various actuator types, such as flat stems & joint stems.
Various actuator colours are also available, to ensure your application is covered.
Tactile
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Terminal Type | Pc Pin |
| Switch Operation | Momentary |
| Actuator Length | 3mm |
| Actuator Colour | Blue |
| Actuator Type | Cap |
| Length | 12mm |
| Width | 12mm |
| Dimensions | 12 x 12mm |
| Mounting Type | Snap-In |
| Contact Current Rating | 50 mA |
| Operating Force | 0.7 N |
| Height | 7.3mm |
| Voltage Rating | 12V dc |
| Mechanical Life | 500000Cycles |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +85°C |
