Black Button Tactile Switch, Single Pole Single Throw (SPST) 50 mA 3.4mm Through Hole

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

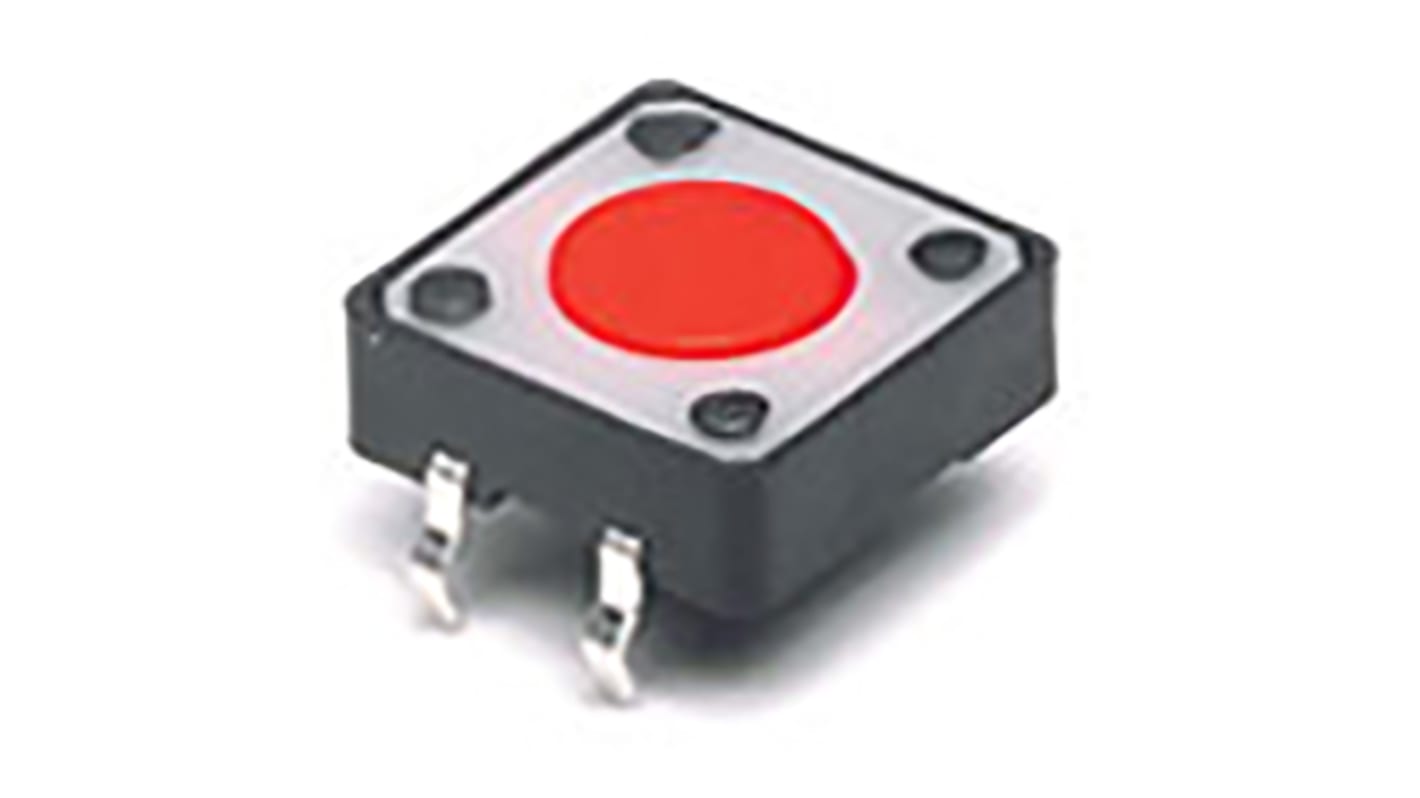

TE Connectivity FSM Series Tactile Switches

TE Connectivity brings you a range of professional and brilliant tactile switches. The FSM series of tactile switches are housed in a strong 'Nylon 66' material and feature a moving contact of copper alloy-silver. These tactile switches are great use for mounting on your PCB to close a circuit. The small tactile switches come in THT & SMT mounting styles and excellent quality.

Features and benefits:

• Up to 1 Million operations
• Actuation force of 1.6N to 2.5N
• Small PCB footprint
• Low profile
• 0.25 Actuation travel
• Operating temperatures of -35° up to +85°

Applications:

• Keyboards
• Keypads
• Telephones
• Radios
• General consumer electronics
• Closing the circuit on a PCV

Tactile

Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Terminal Type Pc Pin
Switch Operation Momentary
Actuator Length 3.4mm
Actuator Colour Black
Actuator Type Button
Length 12mm
Width 12mm
Dimensions 12 x 12 x 7.28mm
Mounting Type Through Hole
Contact Current Rating 50 mA
Operating Force 160 g
Voltage Rating 24V dc
Minimum Operating Temperature -35°C
Contact Material Brass (Fixed Contact), Phosphor Bronze (Movable)
Operating Temperature Range -35 → +85°C
Maximum Operating Temperature +85°C
Height 7.28mm
Mechanical Life 100000Cycles
Available to back order for despatch 10/12/2019
Price 1 Pack of 8000
£ 1,864.35
(exc. VAT)
£ 2,237.22
(inc. VAT)
Pack(s)
Per Pack
Per unit*
1 +
£1,864.35
£0.233
*price indicative
