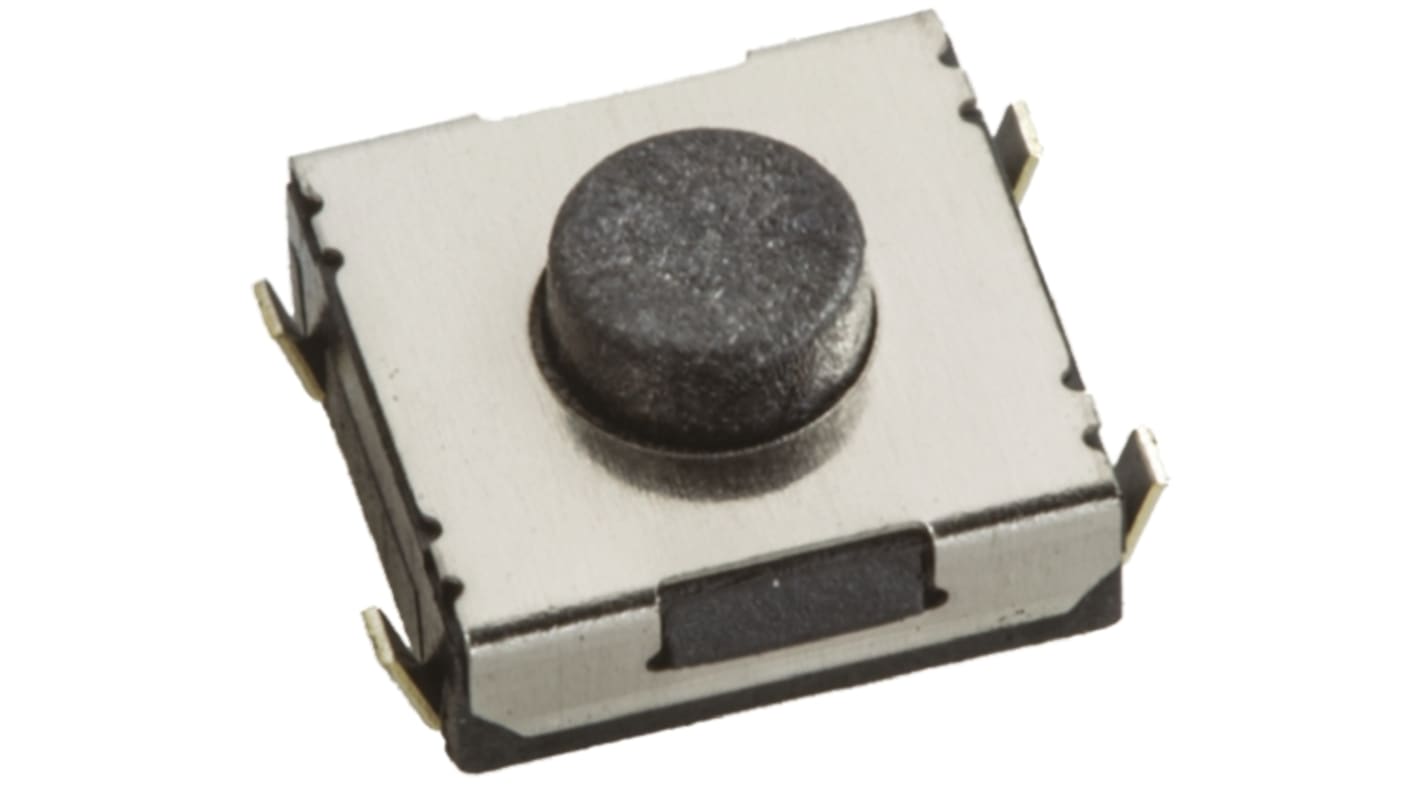

Wurth Elektronik Black Tactile Switch, SPST 50 mA @ 12 V dc 1.1mm Surface Mount
- RS Stock No.:
- 785-6355
- Mfr. Part No.:
- 430483031816
- Brand:
- Wurth Elektronik
Bulk discount available
Subtotal (1 unit)*
£0.46
(exc. VAT)
£0.55
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 10 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 9 | £0.46 |
| 10 - 24 | £0.41 |
| 25 - 49 | £0.38 |
| 50 - 99 | £0.35 |
| 100 + | £0.32 |
*price indicative
- RS Stock No.:
- 785-6355
- Mfr. Part No.:
- 430483031816
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Contact Configuration | SPST | |
| Terminal Type | Solder | |
| Switch Operation | Momentary | |
| Actuator Length | 1.1mm | |
| Actuator Colour | Black | |
| Actuator Type | Tactile | |
| Length | 6.2mm | |
| Width | 6.2mm | |
| Dimensions | 6.2 x 6.2mm | |
| Illuminated | No | |
| Mounting Type | Surface Mount | |
| Contact Current Rating | 50 mA @ 12 V dc | |
| Voltage Rating | 12V dc | |
| Operating Force | 1.57 N | |
| Height | 3.1mm | |
| Mechanical Life | 1000000Cycles | |
| Operating Temperature Range | -40 → +85°C | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +85°C | |
| Contact Material | Stainless Steel | |
Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Contact Configuration SPST | ||
Terminal Type Solder | ||
Switch Operation Momentary | ||
Actuator Length 1.1mm | ||
Actuator Colour Black | ||
Actuator Type Tactile | ||
Length 6.2mm | ||
Width 6.2mm | ||
Dimensions 6.2 x 6.2mm | ||
Illuminated No | ||
Mounting Type Surface Mount | ||
Contact Current Rating 50 mA @ 12 V dc | ||
Voltage Rating 12V dc | ||
Operating Force 1.57 N | ||
Height 3.1mm | ||
Mechanical Life 1000000Cycles | ||
Operating Temperature Range -40 → +85°C | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Contact Material Stainless Steel | ||
- COO (Country of Origin):
- CN
Tactile Switch Washable SMD
Stainless Steel contacts with silver cladding
Polyimide Tape seal
Stainless Steel cover
Polyimide Tape seal
Stainless Steel cover
Tactile
