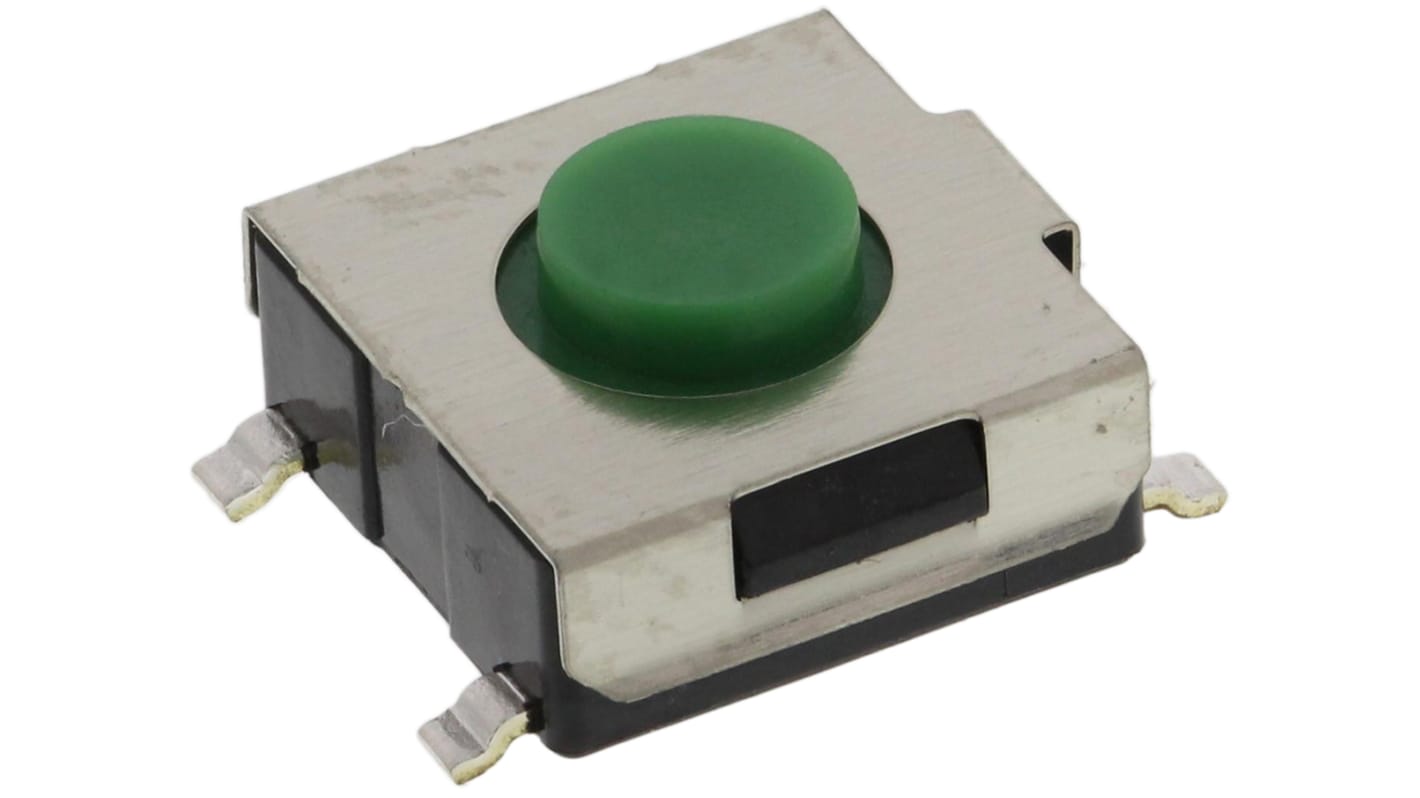

Green Stem Tactile Switch, SPST 50 mA @ 12 V dc 3.1mm Surface Mount
- RS Stock No.:
- 758-2032
- Mfr. Part No.:
- SKHMQLE010
- Brand:
- Alps Alpine
350 In stock - FREE next working day delivery available
110 available from Europe for delivery within 5 working day(s).
Added
Price Each (In a Pack of 10)
£0.523
(exc. VAT)
£0.628
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 240 | £0.523 | £5.23 |
| 250 - 990 | £0.499 | £4.99 |
| 1000 - 4990 | £0.47 | £4.70 |
| 5000 - 9990 | £0.441 | £4.41 |
| 10000 + | £0.418 | £4.18 |
| *price indicative | ||
- RS Stock No.:
- 758-2032
- Mfr. Part No.:
- SKHMQLE010
- Brand:
- Alps Alpine
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Alps SMT Tact Switches - SKHM, SKPM, SKQG & SKRA Series
Alps Tactile or Tact switches are SPST snap action switches to be used with small currents. This series also provide a minimum rating of 10 μA at 1 V dc and a maximum rating of 50 mA at 12 V dc. These Tact switches have SMT terminals, low contact resistance, high contact reliability and come in a wide selection of operating forces and switching travels.
The SKPM series of Tact switches have a soft operating feel while the SKHM, SKQG and the SKRA series have a sharp operating feel.
The SKPM series of Tact switches have a soft operating feel while the SKHM, SKQG and the SKRA series have a sharp operating feel.
Wide range of operating forces
Vertical operating direction
Long life
Low contact resistance 100mΩ
Insulation resistance >100MΩ at 100Vdc
SKHM series are fitted with a ground terminal
SKPM, SKQG and SKRA series are suitable for use in automotive applications
Vertical operating direction
Long life
Low contact resistance 100mΩ
Insulation resistance >100MΩ at 100Vdc
SKHM series are fitted with a ground terminal
SKPM, SKQG and SKRA series are suitable for use in automotive applications
Tactile
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Terminal Type | Surface Mount |
| Switch Operation | Momentary |
| Actuator Length | 3.1mm |
| Actuator Colour | Green |
| Actuator Type | Stem |
| Length | 6.5mm |
| Width | 6.2mm |
| Dimensions | 6.5 x 6.2 x 3.1mm |
| Mounting Type | Surface Mount |
| Contact Current Rating | 50 mA @ 12 V dc |
| Operating Force | 1.57 N |
| Height | 3.1mm |
| Voltage Rating | 12V dc |
| Minimum Operating Temperature | -30°C |
| Operating Temperature Range | -30 → +85°C |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 300000Cycles |
