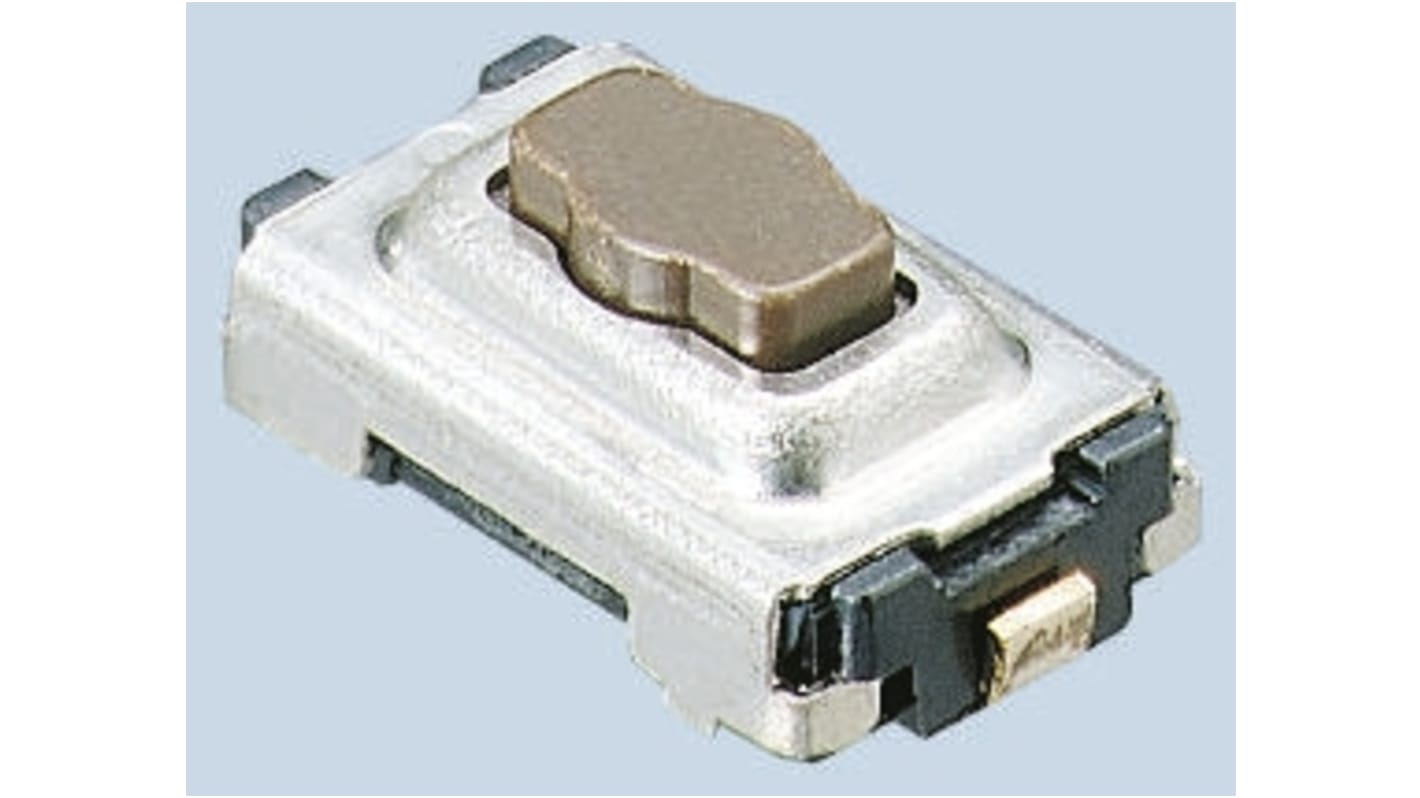

Alps Alpine Tactile Switch Plunger, SPST 50mA 12 V dc, Surface
- RS Stock No.:
- 336-7457
- Mfr. Part No.:
- SKQYAA
- Brand:
- Alps Alpine
Image representative of range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 336-7457
- Mfr. Part No.:
- SKQYAA
- Brand:
- Alps Alpine
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alps Alpine | |
| Contact Configuration | SPST | |
| Product Type | Tactile Switch | |
| Terminal Type | Surface Mount | |
| Switch Operation | Momentary | |
| Length | 6.1mm | |
| Width | 3.7mm | |
| Actuator Orientation | Vertical | |
| Minimum Operating Temperature | -30°C | |
| Actuator Style | Plunger | |
| Contact DC Voltage | 12V dc | |
| Mount Type | Surface | |
| Maximum Operating Temperature | 85°C | |
| Switch Contact Current | 50mA | |
| Series | SKQY | |
| Standards/Approvals | No | |
| Operating Force | 1.57N | |
| Height | 2.5mm | |
| Mechanical Life | 50000Operations | |
| Select all | ||
|---|---|---|
Brand Alps Alpine | ||
Contact Configuration SPST | ||
Product Type Tactile Switch | ||
Terminal Type Surface Mount | ||
Switch Operation Momentary | ||
Length 6.1mm | ||
Width 3.7mm | ||
Actuator Orientation Vertical | ||
Minimum Operating Temperature -30°C | ||
Actuator Style Plunger | ||
Contact DC Voltage 12V dc | ||
Mount Type Surface | ||
Maximum Operating Temperature 85°C | ||
Switch Contact Current 50mA | ||
Series SKQY | ||
Standards/Approvals No | ||
Operating Force 1.57N | ||
Height 2.5mm | ||
Mechanical Life 50000Operations | ||
- COO (Country of Origin):
- JP
SKQY Series
High density surface mount tactile switches (3.7x6.1x2.5)
Enlarged stem top surface enhances mounting speed
Contact-sealed structure provides high reliability
J-Bend terminal reduces mounting patterns
Tactile
