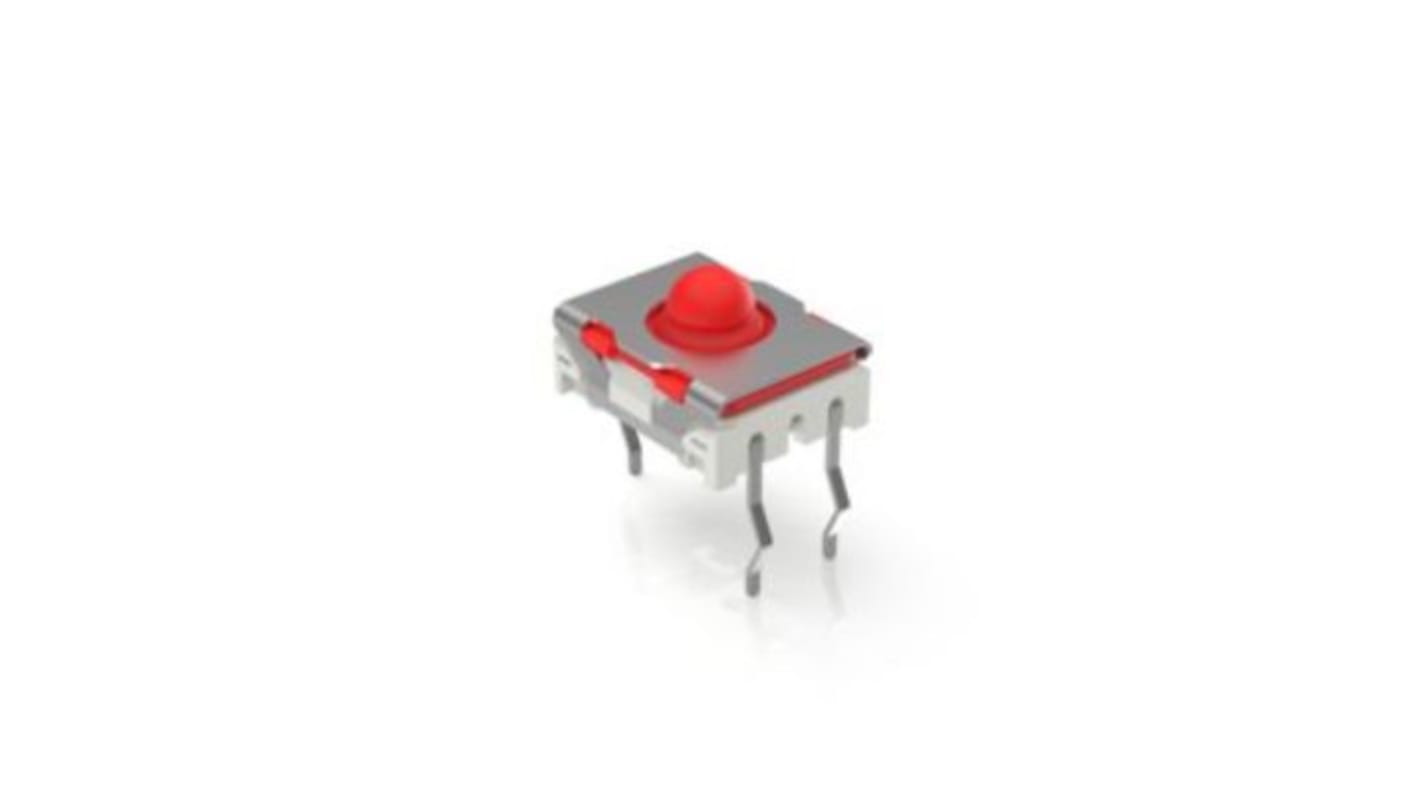

RAFI Orange Tactile Switch Momentary, 1 NO 100mA, Surface
- RS Stock No.:
- 271-9094
- Mfr. Part No.:
- 1.14.002.116/0000
- Brand:
- RAFI
Subtotal (1 unit)*
£1.30
(exc. VAT)
£1.56
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 248 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1.30 |
*price indicative
- RS Stock No.:
- 271-9094
- Mfr. Part No.:
- 1.14.002.116/0000
- Brand:
- RAFI
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RAFI | |
| Product Type | Tactile Switch | |
| Contact Configuration | 1 NO | |
| Terminal Type | Solder | |
| Switch Operation | NO | |
| Actuator Colour | Orange | |
| Length | 6.4mm | |
| Width | 5.1mm | |
| Illuminated | No | |
| Actuator Style | Momentary | |
| Minimum Operating Temperature | -40°C | |
| Mount Type | Surface | |
| Maximum Operating Temperature | 90°C | |
| Switch Configuration | 1 NO | |
| Switch Contact Current | 100mA | |
| Standards/Approvals | DIN EN 60068-2-20 | |
| Series | MICON 5 | |
| Operating Force | 8N | |
| Mechanical Life | 10000000Cycles | |
| Select all | ||
|---|---|---|
Brand RAFI | ||
Product Type Tactile Switch | ||
Contact Configuration 1 NO | ||
Terminal Type Solder | ||
Switch Operation NO | ||
Actuator Colour Orange | ||
Length 6.4mm | ||
Width 5.1mm | ||
Illuminated No | ||
Actuator Style Momentary | ||
Minimum Operating Temperature -40°C | ||
Mount Type Surface | ||
Maximum Operating Temperature 90°C | ||
Switch Configuration 1 NO | ||
Switch Contact Current 100mA | ||
Standards/Approvals DIN EN 60068-2-20 | ||
Series MICON 5 | ||
Operating Force 8N | ||
Mechanical Life 10000000Cycles | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
The RAFI MICON 5 tactile switches offer extreme switching reliability, with a very small space requirement. They can be arranged individually, in rows or as key blocks. For use beneath overlays, it is recommended to combine the MICON 5 tactile switches wi
Different operating forces
Traceability through product identification in accordance with DIN EN ISO 9001
Special tactile feedback
Different operating forces
Variable overall heights due to plunger
