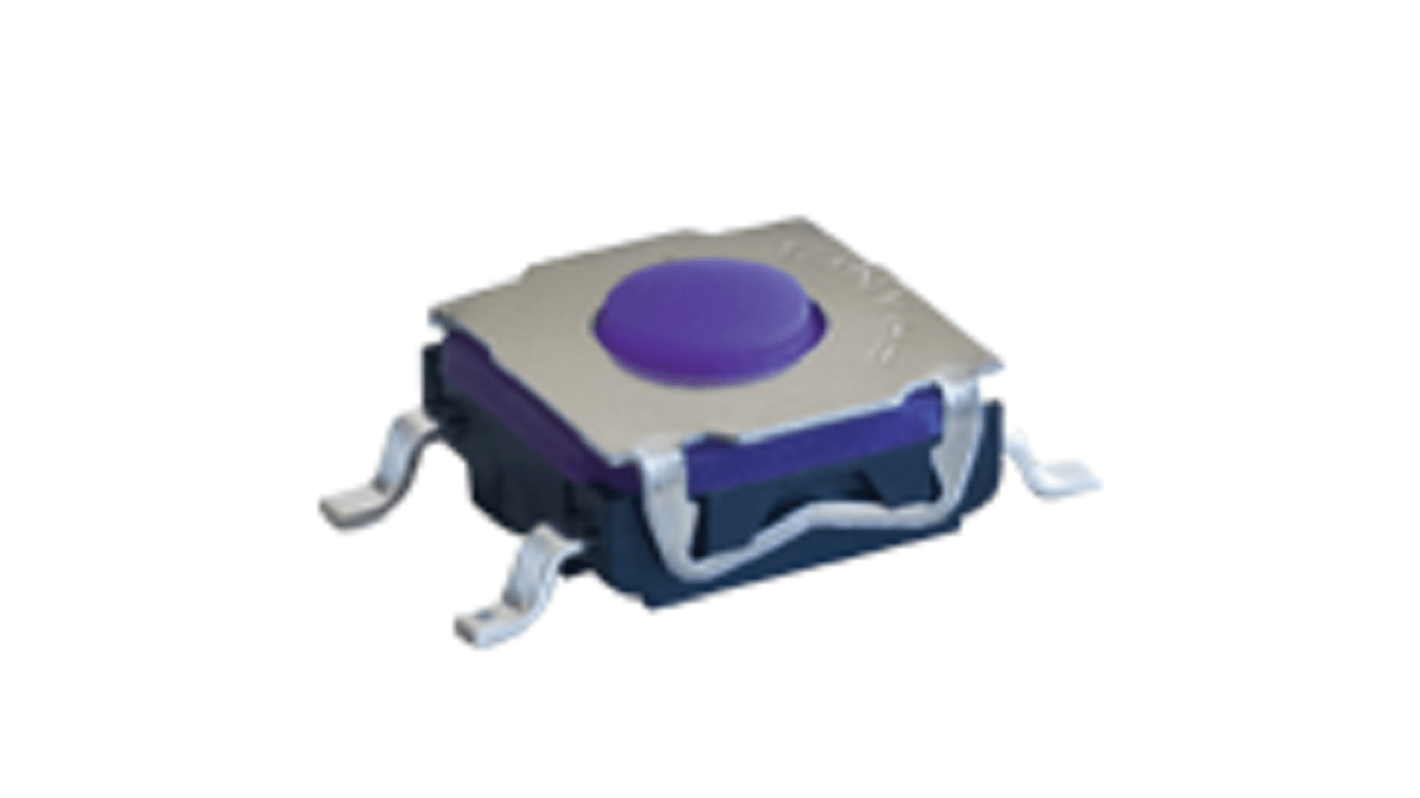

C & K IP67 Silver Tactile Switch Standard, 3.1 mm, SPST 20mA 32 V dc, Surface
- RS Stock No.:
- 257-0657P
- Mfr. Part No.:
- KSEM31GLFS
- Brand:
- C & K
Bulk discount available
View bulk pricing optionsSubtotal 100 units (supplied on a continuous strip)*
£35.90
(exc. VAT)
£43.10
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 100 - 240 | £0.359 |
| 250 - 490 | £0.338 |
| 500 - 990 | £0.32 |
| 1000 + | £0.306 |
*price indicative
- RS Stock No.:
- 257-0657P
- Mfr. Part No.:
- KSEM31GLFS
- Brand:
- C & K
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | C & K | |
| Product Type | Tactile Switch | |
| Contact Configuration | SPST | |
| Terminal Type | Gull Wing | |
| Switch Operation | (On)-Off | |
| Actuator Colour | Silver | |
| Actuator Length | 3.1mm | |
| Width | 6.2mm | |
| Illuminated | No | |
| Minimum Operating Temperature | -40°C | |
| Actuator Style | Standard | |
| Contact DC Voltage | 32V dc | |
| Mount Type | Surface | |
| Switch Configuration | SPST NC | |
| Maximum Operating Temperature | 85°C | |
| Switch Contact Current | 20mA | |
| IP Rating | IP67 | |
| Series | KSE | |
| Standards/Approvals | RoHS | |
| Operating Force | 1.5N | |
| Height | 3.1mm | |
| Mechanical Life | 300000Cycles | |
| Select all | ||
|---|---|---|
Brand C & K | ||
Product Type Tactile Switch | ||
Contact Configuration SPST | ||
Terminal Type Gull Wing | ||
Switch Operation (On)-Off | ||
Actuator Colour Silver | ||
Actuator Length 3.1mm | ||
Width 6.2mm | ||
Illuminated No | ||
Minimum Operating Temperature -40°C | ||
Actuator Style Standard | ||
Contact DC Voltage 32V dc | ||
Mount Type Surface | ||
Switch Configuration SPST NC | ||
Maximum Operating Temperature 85°C | ||
Switch Contact Current 20mA | ||
IP Rating IP67 | ||
Series KSE | ||
Standards/Approvals RoHS | ||
Operating Force 1.5N | ||
Height 3.1mm | ||
Mechanical Life 300000Cycles | ||
- COO (Country of Origin):
- FR
The C & K tactile switch has standard actuator type, 50 mA current rating and 32 VDC voltage rating, SPST-NO contact configuration with SMT mounting type.
Cost efficient
Low profile
IP67 degree of protection
