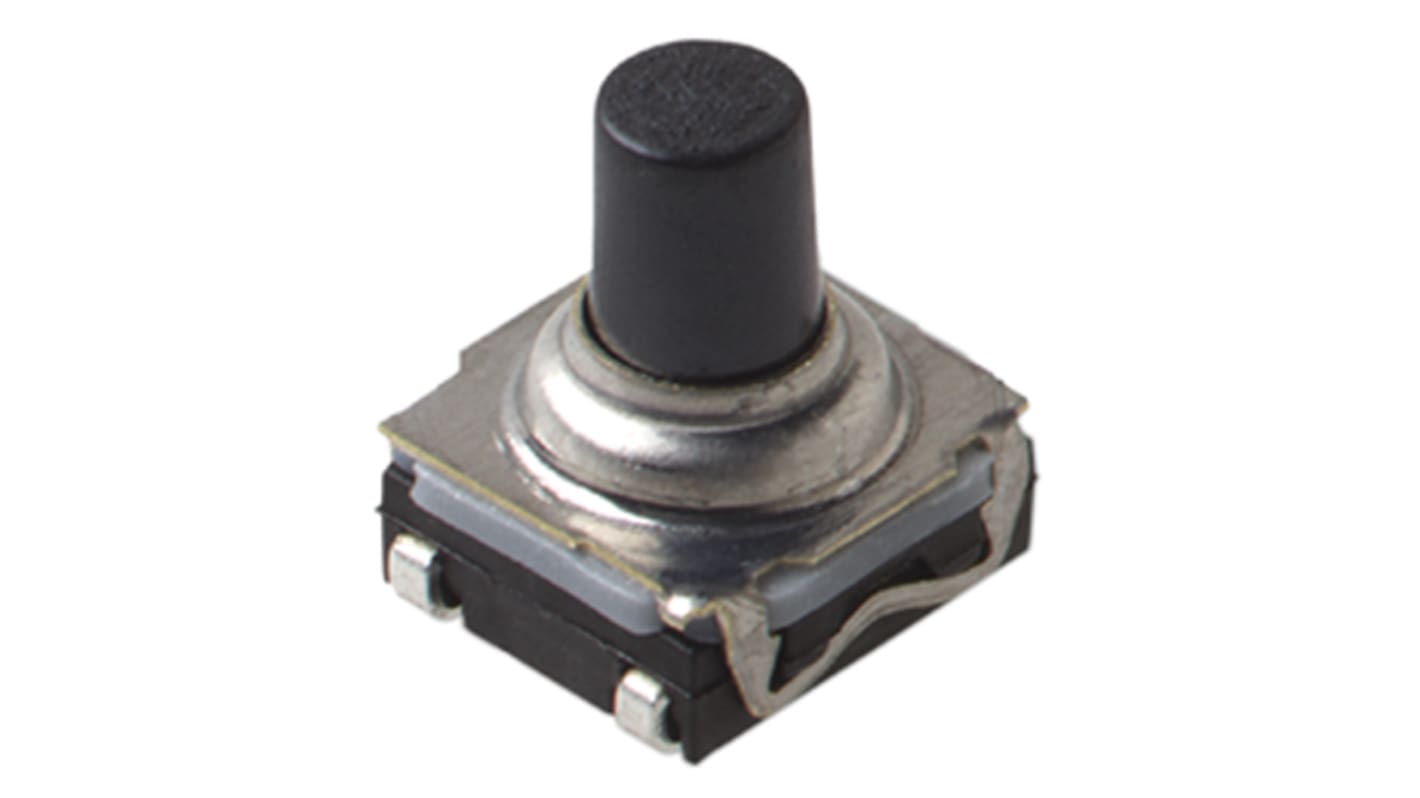

C & K IP67 Black Tactile Switch Button, SPST 10mA 32 V dc, Surface
- RS Stock No.:
- 135-9568P
- Mfr. Part No.:
- KSC623J LFG
- Brand:
- C & K
Bulk discount available
View bulk pricing optionsSubtotal 100 units (supplied on a continuous strip)*
£50.80
(exc. VAT)
£61.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 01 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 100 - 180 | £0.508 |
| 200 - 480 | £0.421 |
| 500 + | £0.389 |
*price indicative
- RS Stock No.:
- 135-9568P
- Mfr. Part No.:
- KSC623J LFG
- Brand:
- C & K
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | C & K | |
| Product Type | Tactile Switch | |
| Contact Configuration | SPST | |
| Terminal Type | J Bend | |
| Switch Operation | Momentary | |
| Actuator Colour | Black | |
| Length | 6.8mm | |
| Width | 6.8mm | |
| Illuminated | No | |
| Actuator Orientation | Straight | |
| Actuator Style | Button | |
| Mount Type | Surface | |
| Contact DC Voltage | 32V dc | |
| Minimum Operating Temperature | -40°C | |
| Switch Configuration | (On)-Off | |
| Maximum Operating Temperature | 125°C | |
| Switch Contact Current | 10mA | |
| Series | KSC | |
| Standards/Approvals | RoHS | |
| IP Rating | IP67 | |
| Operating Force | 1.7N | |
| Height | 3.5mm | |
| Mechanical Life | 300000Cycles | |
| Select all | ||
|---|---|---|
Brand C & K | ||
Product Type Tactile Switch | ||
Contact Configuration SPST | ||
Terminal Type J Bend | ||
Switch Operation Momentary | ||
Actuator Colour Black | ||
Length 6.8mm | ||
Width 6.8mm | ||
Illuminated No | ||
Actuator Orientation Straight | ||
Actuator Style Button | ||
Mount Type Surface | ||
Contact DC Voltage 32V dc | ||
Minimum Operating Temperature -40°C | ||
Switch Configuration (On)-Off | ||
Maximum Operating Temperature 125°C | ||
Switch Contact Current 10mA | ||
Series KSC | ||
Standards/Approvals RoHS | ||
IP Rating IP67 | ||
Operating Force 1.7N | ||
Height 3.5mm | ||
Mechanical Life 300000Cycles | ||
- COO (Country of Origin):
- FR
C&K KSC6 Series Tactile Switches
From C & K Switches, a range of IP67 sealed tactile switches for surface mounting. The KSC6 range of switches are 7.7 mm in height with a hard actuator, making them Ideal for printed circuit boards where space is limited. Switches in the KSC6 series have SPST-NO momentary gold contacts and J bend terminations. Available in various operating forces catering for a wide variety of applications.
Features and Benefits
• IP67 sealed
• J bend termination
• Small footprint
• Positive tactile feeling
• Low current
Applications
• Automotive
• Mobile phones
• Lifts
• Network infrastructure and IT
• Industrial electronics
