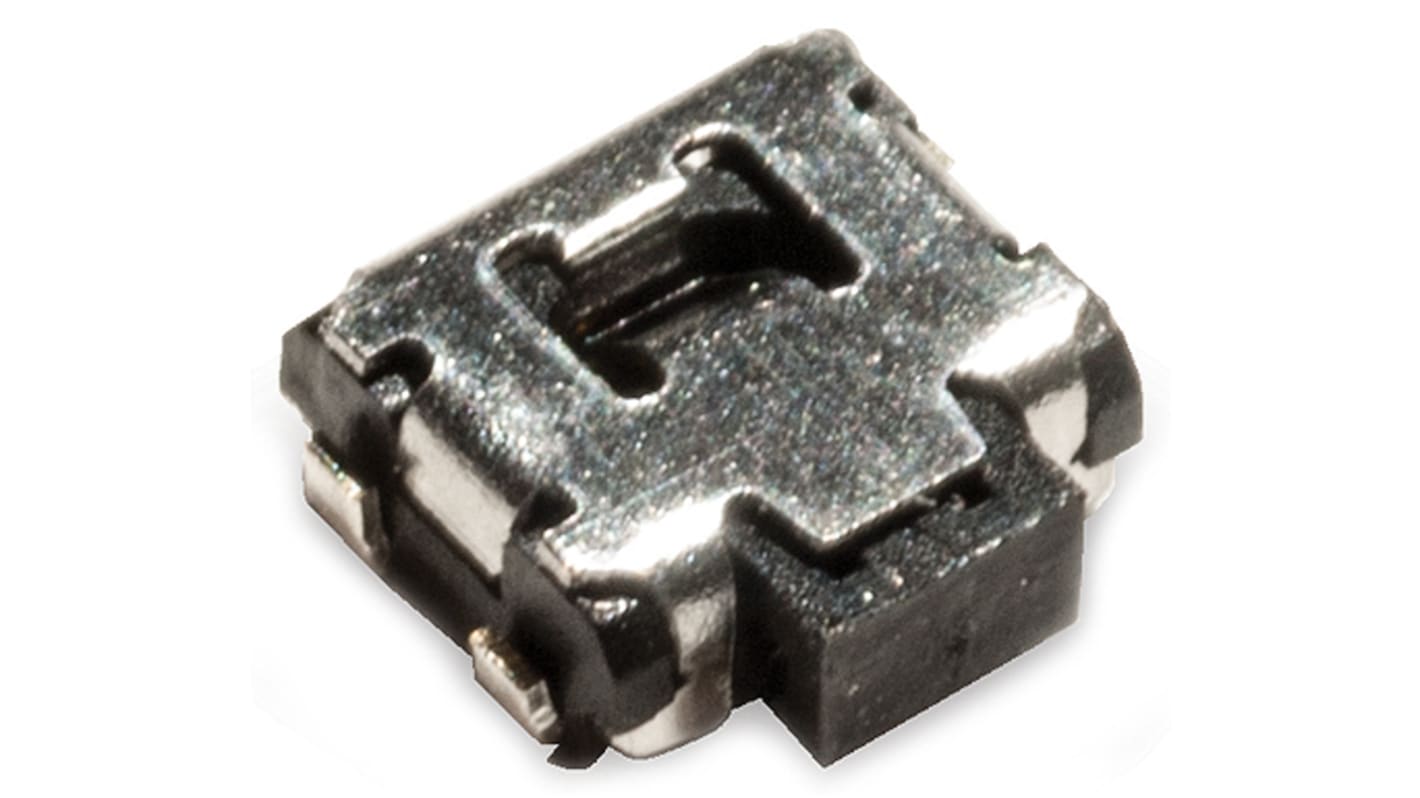

C & K IP40 Black Tactile Switch Button, 1.7 mm, SPST 50 mA 12 V dc, Surface
- RS Stock No.:
- 135-9210
- Mfr. Part No.:
- PTS840 PM SMTR LFS
- Brand:
- C & K
Subtotal (1 reel of 3500 units)*
£1,045.03
(exc. VAT)
£1,254.04
(inc. VAT)
Stock information currently inaccessible - Please check back later
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | £1,045.03 | £0.299 |
*price indicative
- RS Stock No.:
- 135-9210
- Mfr. Part No.:
- PTS840 PM SMTR LFS
- Brand:
- C & K
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | C & K | |
| Contact Configuration | SPST | |
| Product Type | Tactile Switch | |
| Terminal Type | Gull Wing | |
| Switch Operation | Momentary | |
| Actuator Colour | Black | |
| Length | 3.5mm | |
| Actuator Length | 1.7mm | |
| Illuminated | No | |
| Actuator Orientation | Straight | |
| Contact DC Voltage | 12V dc | |
| Mount Type | Surface | |
| Actuator Style | Button | |
| Minimum Operating Temperature | -40°C | |
| Switch Configuration | Off-Mom | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| IP Rating | IP40 | |
| Series | PTS | |
| Operating Force | 1.6N | |
| Height | 2mm | |
| Mechanical Life | 100000Cycles | |
| Select all | ||
|---|---|---|
Brand C & K | ||
Contact Configuration SPST | ||
Product Type Tactile Switch | ||
Terminal Type Gull Wing | ||
Switch Operation Momentary | ||
Actuator Colour Black | ||
Length 3.5mm | ||
Actuator Length 1.7mm | ||
Illuminated No | ||
Actuator Orientation Straight | ||
Contact DC Voltage 12V dc | ||
Mount Type Surface | ||
Actuator Style Button | ||
Minimum Operating Temperature -40°C | ||
Switch Configuration Off-Mom | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
IP Rating IP40 | ||
Series PTS | ||
Operating Force 1.6N | ||
Height 2mm | ||
Mechanical Life 100000Cycles | ||
- COO (Country of Origin):
- CN
C&K PTS840 Series Tactile Switches
From C & K Switches, a range of Micro-miniature side actuated SMT tactile switches. The Compact PTS840 series of switches have a 3.5 x 3.55 mm footprint making them Ideal for applications where PCB board space is limited. These tactile switches are available with rectangular side actuated buttons. The IP40 switches in the PTS840 family have a momentary function with SPST-NO silver plated Gullwing or front PIP SMT terminations.
Features and Benefits
• IP40
• 3.5 x 3.55 mm footprint
• ESD pin option
• Silver plated contacts
• Front PIP leads options for strong shear resistance
Applications
• Remote controls
• Nomad devices
• Consumer electronics
• Personal health diagnostics
Tactile
