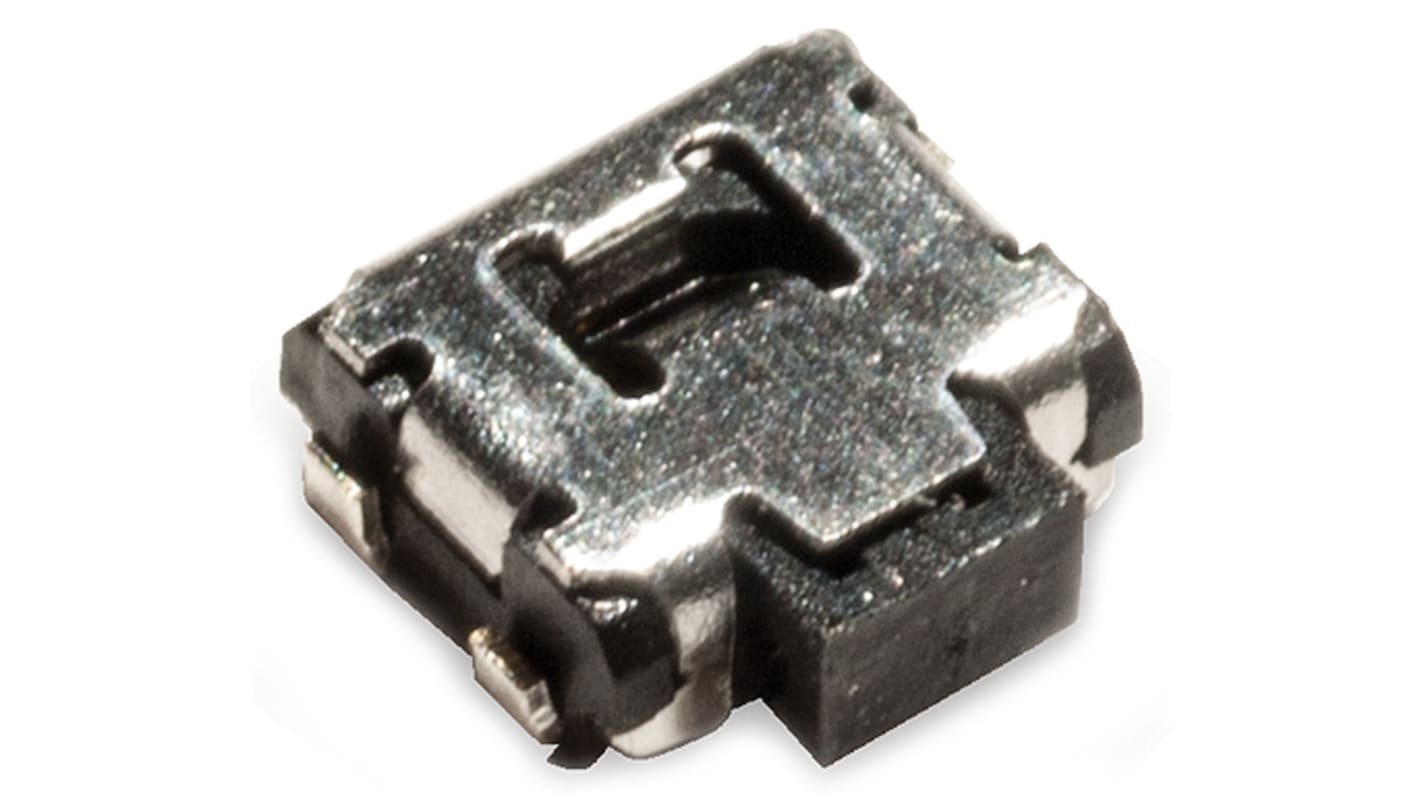

C & K IP40 Black Button Tactile Switch, SPST 50 mA 1.7mm Surface Mount
- RS Stock No.:
- 135-9207
- Mfr. Part No.:
- PTS840 ESD GKP SMTR LFS
- Brand:
- C & K
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 135-9207
- Mfr. Part No.:
- PTS840 ESD GKP SMTR LFS
- Brand:
- C & K
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | C & K | |
| Contact Configuration | SPST | |
| Terminal Type | Gull Wing | |
| Switch Operation | Momentary | |
| Actuator Length | 1.7mm | |
| Actuator Colour | Black | |
| Actuator Type | Button | |
| Length | 3.5mm | |
| Width | 3.55mm | |
| Dimensions | 3.55 x 3.5mm | |
| Mounting Type | Surface Mount | |
| Contact Current Rating | 50 mA | |
| IP Rating | IP40 | |
| Operating Force | 2.2 N | |
| Voltage Rating | 12V dc | |
| Minimum Operating Temperature | -40°C | |
| Operating Temperature Range | -40 → +85°C | |
| Maximum Operating Temperature | +85°C | |
| Contact Material | Silver Plated | |
Select all | ||
|---|---|---|
Brand C & K | ||
Contact Configuration SPST | ||
Terminal Type Gull Wing | ||
Switch Operation Momentary | ||
Actuator Length 1.7mm | ||
Actuator Colour Black | ||
Actuator Type Button | ||
Length 3.5mm | ||
Width 3.55mm | ||
Dimensions 3.55 x 3.5mm | ||
Mounting Type Surface Mount | ||
Contact Current Rating 50 mA | ||
IP Rating IP40 | ||
Operating Force 2.2 N | ||
Voltage Rating 12V dc | ||
Minimum Operating Temperature -40°C | ||
Operating Temperature Range -40 → +85°C | ||
Maximum Operating Temperature +85°C | ||
Contact Material Silver Plated | ||
