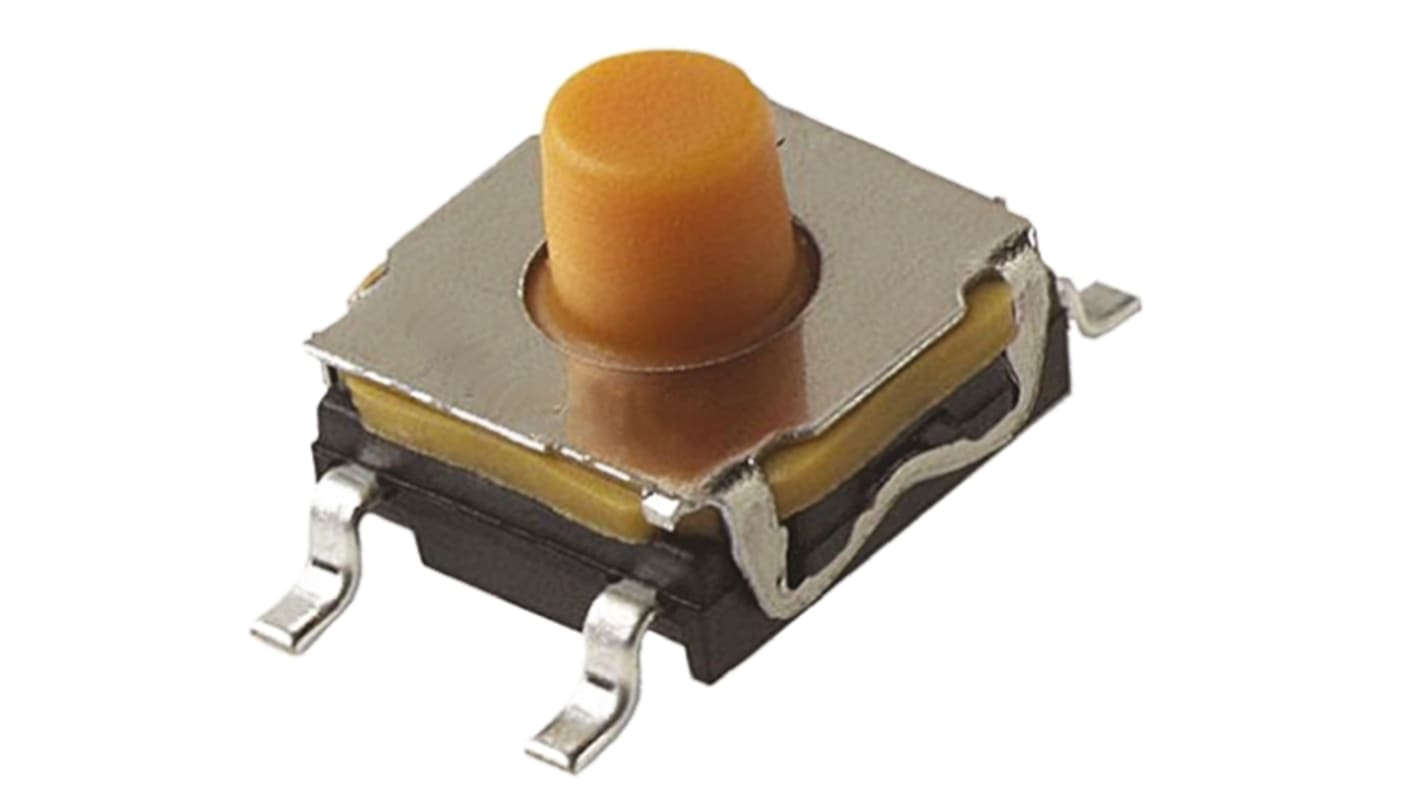

C & K IP67 Button Tactile Switch, SPST 50 mA @ 32 V dc 2.6mm
- RS Stock No.:
- 516-338
- Mfr. Part No.:
- KSC441G ST1 LFS
- Brand:
- C & K
Discontinued
- 100 unit(s) shipping from 20 November 2025
- RS Stock No.:
- 516-338
- Mfr. Part No.:
- KSC441G ST1 LFS
- Brand:
- C & K
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | C & K | |
| Contact Configuration | SPST | |
| Terminal Type | Surface Mount | |
| Switch Operation | Momentary | |
| Actuator Length | 2.6mm | |
| Actuator Type | Button | |
| Dimensions | 6.2 x 6.2 x 5.2mm | |
| Illuminated | No | |
| Contact Current Rating | 50 mA @ 32 V dc | |
| IP Rating | IP67 | |
| Operating Force | 3.4 N | |
| Height | 5.2mm | |
| Voltage Rating | 32V dc | |
| Contact Material | Silver | |
| Maximum Operating Temperature | +85°C | |
| Mechanical Life | 300000Operations | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand C & K | ||
Contact Configuration SPST | ||
Terminal Type Surface Mount | ||
Switch Operation Momentary | ||
Actuator Length 2.6mm | ||
Actuator Type Button | ||
Dimensions 6.2 x 6.2 x 5.2mm | ||
Illuminated No | ||
Contact Current Rating 50 mA @ 32 V dc | ||
IP Rating IP67 | ||
Operating Force 3.4 N | ||
Height 5.2mm | ||
Voltage Rating 32V dc | ||
Contact Material Silver | ||
Maximum Operating Temperature +85°C | ||
Mechanical Life 300000Operations | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- FR
KSC-ST series, Sound tuneable tactile switches
Positive tactile feeling
Available with 2 sound intensities (<30dBA & >50dBA)
SMT J bend or Gullwing terminations
IP67
Silver contacts
Momentary action
Operarting force 3.4N, travel 0.7mm (>50dBA) , 0.35mm (<30dBA)
Typical applications include automotive, Industrial electronics, Keyboards & Medical equipment
Available with 2 sound intensities (<30dBA & >50dBA)
SMT J bend or Gullwing terminations
IP67
Silver contacts
Momentary action
Operarting force 3.4N, travel 0.7mm (>50dBA) , 0.35mm (<30dBA)
Typical applications include automotive, Industrial electronics, Keyboards & Medical equipment
Tactile
