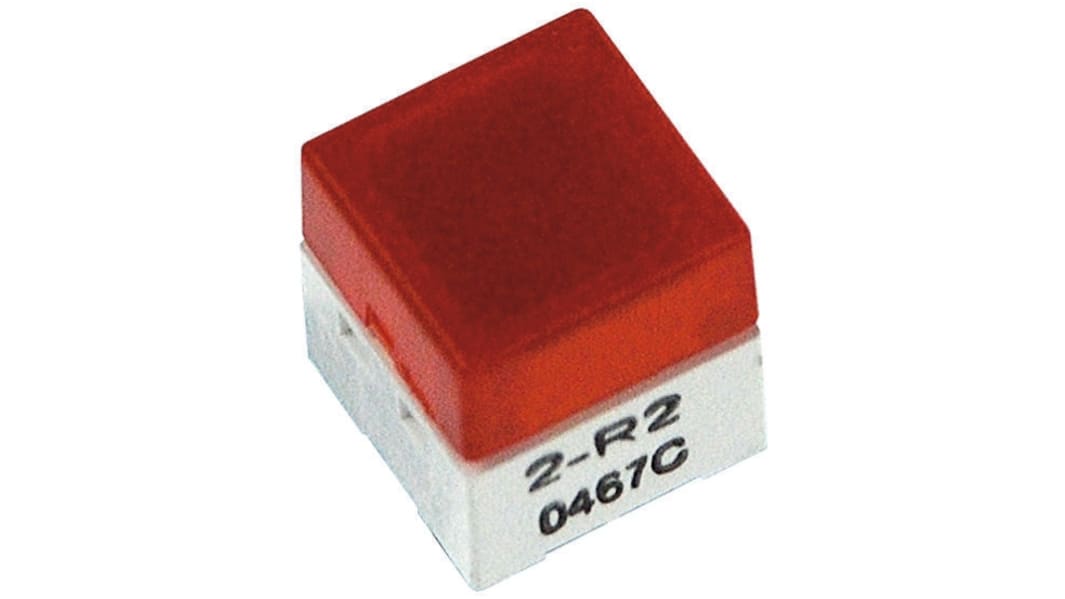

Omron IP00 Red Tactile Switch Cap, SPST-NO 50mA 24 V dc, PCB
- RS Stock No.:
- 492-816
- Distrelec Article No.:
- 110-88-915
- Mfr. Part No.:
- B3W9000R1RBYOMZ
- Brand:
- Omron
Subtotal (1 unit)*
£1.41
(exc. VAT)
£1.69
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Plus 50 unit(s) shipping from 10 August 2026
- Final 112 unit(s) shipping from 14 August 2026
Units | Per unit |
|---|---|
| 1 + | £1.41 |
*price indicative
- RS Stock No.:
- 492-816
- Distrelec Article No.:
- 110-88-915
- Mfr. Part No.:
- B3W9000R1RBYOMZ
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Tactile Switch | |
| Contact Configuration | SPST-NO | |
| Terminal Type | Solder | |
| Switch Operation | Momentary | |
| Actuator Colour | Red | |
| Length | 10mm | |
| Width | 10mm | |
| Illuminated | Yes | |
| Actuator Orientation | Straight | |
| Actuator Style | Cap | |
| Minimum Operating Temperature | -25°C | |
| Contact DC Voltage | 24V dc | |
| Mount Type | PCB | |
| Switch Contact Current | 50mA | |
| Switch Configuration | Off-On | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS | |
| Series | B3W | |
| IP Rating | IP00 | |
| Operating Force | 1.57N | |
| Height | 10.2mm | |
| Mechanical Life | 1000000Operations | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Tactile Switch | ||
Contact Configuration SPST-NO | ||
Terminal Type Solder | ||
Switch Operation Momentary | ||
Actuator Colour Red | ||
Length 10mm | ||
Width 10mm | ||
Illuminated Yes | ||
Actuator Orientation Straight | ||
Actuator Style Cap | ||
Minimum Operating Temperature -25°C | ||
Contact DC Voltage 24V dc | ||
Mount Type PCB | ||
Switch Contact Current 50mA | ||
Switch Configuration Off-On | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS | ||
Series B3W | ||
IP Rating IP00 | ||
Operating Force 1.57N | ||
Height 10.2mm | ||
Mechanical Life 1000000Operations | ||
- COO (Country of Origin):
- CN
Illuminated Tactile Switches (B3W-9)
Compact construction (10x10x11mm height)
Bright and uniform colour via uniquely constructed diffusion panel
Sealed switch part provides high contact reliability against dust
Available with single or twin blue, green, red or yellow LED's fitted with a variety of cap colours
Momentary, SPST-NO, switching capacity 1 to 50mA, 5 to 24Vdc
Operating force 1.57N
Recommended LED forward current for red, green and yellow (20mA) and for bright green and blue (10mA)
Operating temperature range of -25 to 70°C @ 60 percent maximum humidity (with no icing or condensation)
