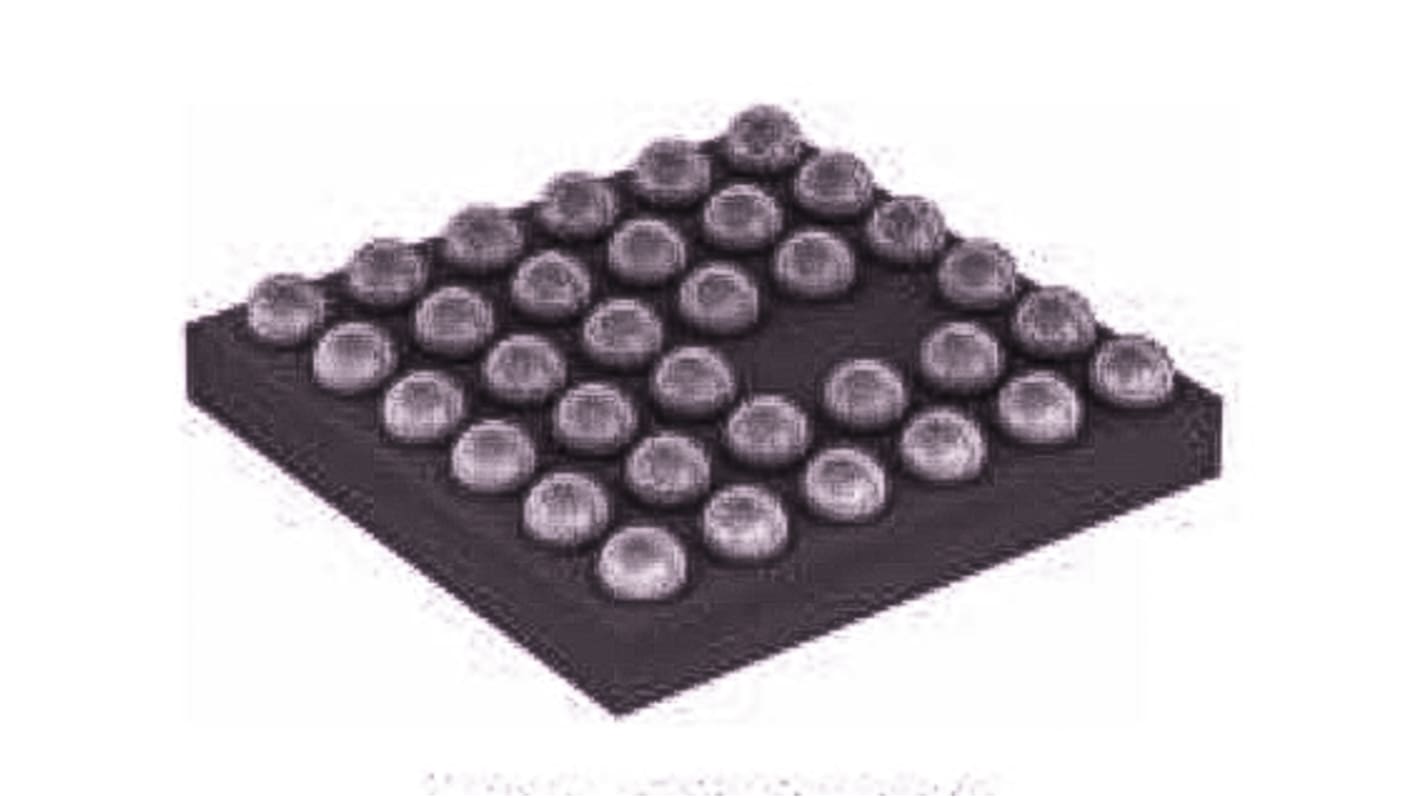

STMicroelectronics BLUENRG-134, ARM Cortex Bluetooth System On Chip SOC 34-Pin WLCSP

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

The BlueNRG-1 is a very low power Bluetooth low energy (BLE) single-mode system-on-chip, compliant with Bluetooth specification.The BlueNRG-1 extends the features of award-winning BlueNRG network processor, enabling the usage of the embedded Cortex M0 for running the user application code.The BlueNRG-1 includes 160 KB of programming Flash memory, 24 KB of static RAM memory with retention (two 12 KB banks) and SPI, UART, I²C standard communication interface peripherals. It also features multifunction timers, watchdog, RTC and DMA controller.

Bluetooth specification compliant master, slave and multiple roles simultaneously, single-mode Bluetooth low energy system-on-chip
Integrated linear regulator and DC-DC step-down converter
High performance, ultra-low power Cortex-M0 32-bit based architecture core
Programmable 160 KB Flash
24 KB RAM with retention (two 12 KB banks)
DMA controller
PDM stream processor
Battery voltage monitor and temperature sensor
Accurate RSSI to allow power control

Specifications
Attribute Value
Processing Unit Bluetooth
Technology ARM Cortex
Mounting Type Surface Mount
Package Type WLCSP
Pin Count 34
Dimensions 2.68 x 2.58 x 0.2mm
Height 0.2mm
Length 2.68mm
Maximum Operating Supply Voltage 3.6 V
Maximum Operating Temperature +105 °C
Minimum Operating Supply Voltage 1.7 V
Minimum Operating Temperature -40 °C
Width 2.58mm
Available to back order for despatch 26/02/2020
Price Each (On a Reel of 2500)
£ 1.394
(exc. VAT)
£ 1.673
(inc. VAT)
Units
Per unit
Per Reel*
2500 +
£1.394
£3,485.00
*price indicative
