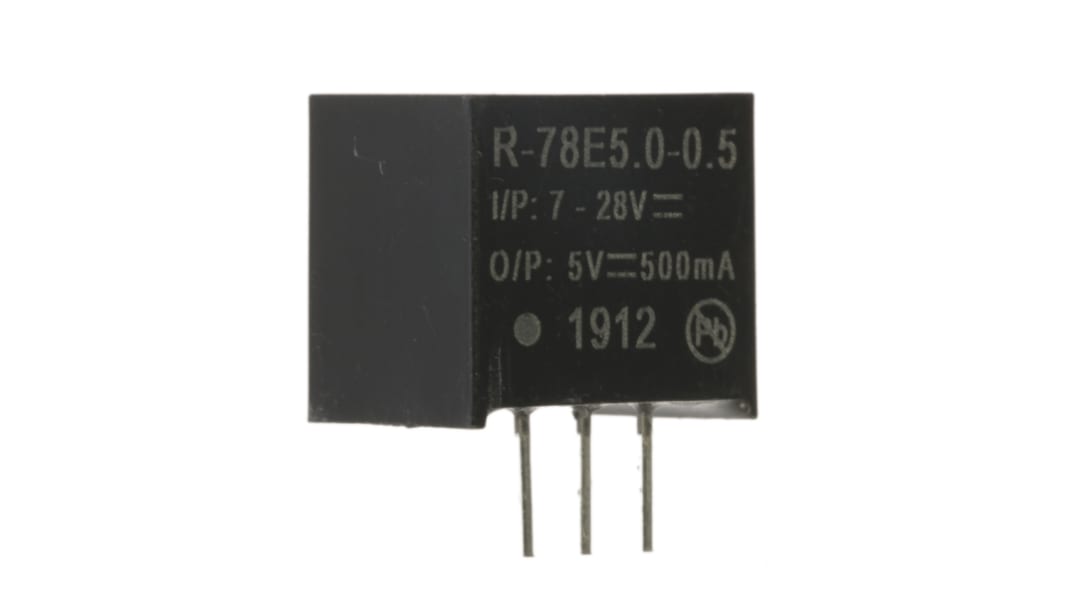

Recom Switching Regulator, 7 → 28V dc Input, 5V dc Output, 500mA

  • RS Stock No. 757-7239
  • Mfr. Part No. R-78E5.0-0.5
  • Brand Recom
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

Recom INNOLINE PCB Mount 0.5A Switching Regulator - R-78E Series

INNOLINE R-78E5.0 series PCB mount 0.5A switching regulator with single output and a high efficiency. These R-78E5.0 series PCB mount switching regulators are pin compatible with 78 series regulators.

High efficiency of up to 92% at 7Vdc input
Pin compatible with 78 series regulators
5V, 500mA output
Short circuit protection

Note

Power derates above 70°C

Specifications
Attribute Value
Input Voltage 7 → 28V dc
Output Voltage 5V dc
Number of Outputs 1
Output Current 500mA
Power Rating 2.5W
Mounting Type Through Hole
Package SIP
Minimum Temperature -40°C
Maximum Temperature +85°C
Efficiency 92%
MTBF 4185000h
Load Regulation ±1%
Line Regulation ±0.5%
Ripple And Noise 50mV Pk-Pk
Width 8.5mm
Depth 8.5mm
Weight 1.9g
Length 11.6mm
993 In stock for FREE next working day delivery
Price Each
£ 2.12
(exc. VAT)
£ 2.54
(inc. VAT)
Units
Per unit
1 - 4
£2.12
5 - 9
£2.03
10 - 24
£1.99
25 - 49
£1.94
50 +
£1.90
