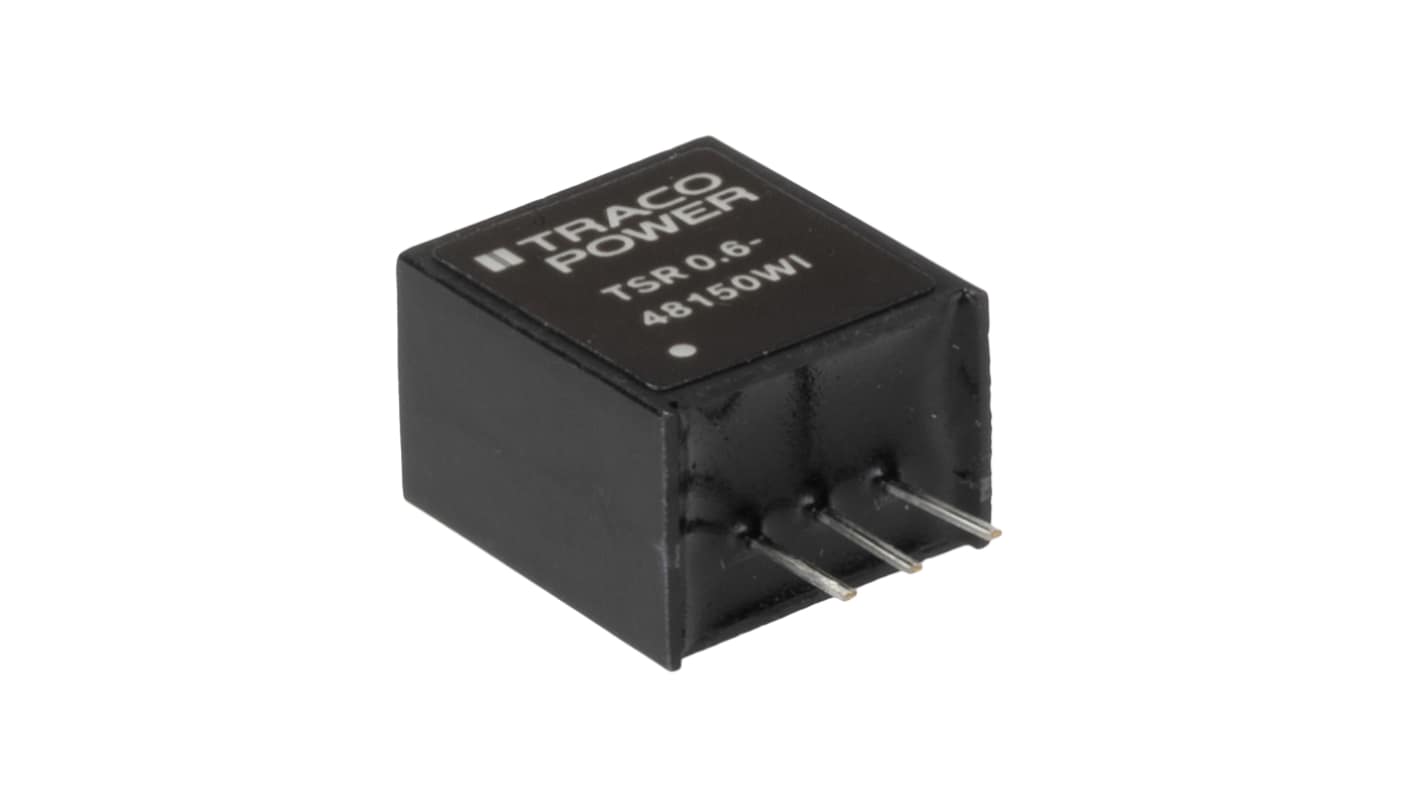

TRACOPOWER Non-Isolated DC-DC Converter, Through Hole, 15V dc Output Voltage, 20 → 72V dc Input Voltage, 600mA

View all Switching Regulators
Bulk discount available

Subtotal (1 unit)*

£10.36

(exc. VAT)

£12.43

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 15 unit(s) ready to ship
  • Plus 3 unit(s) ready to ship from another location
  • Plus 20 unit(s) shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£10.36
5 - 9£10.05
10 - 24£9.73
25 - 49£9.32
50 +£8.92

*price indicative

RS Stock No.:
193-2042
Mfr. Part No.:
TSR 0.6-48150WI
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage

15V dc

Output Current

600mA

Input Voltage

20 → 72V dc

Mounting Type

Through Hole

Number of Outputs

1

Package

SIP

Efficiency

94 (Typ.)%

Ripple And Noise

50 (Typ.)mV Pk-Pk

Maximum Temperature

+85°C

Minimum Temperature

-40°C

Series

TSR 0.6WI

Line Regulation

0.6%

Weight

3g

Protection Features

Over Temperature Protection, Over Voltage Protection, Short Circuit Protection

Special Features

Overvoltage and Short Circuit Protection

Switching Frequency Range

293 → 608kHz

Load Regulation

0.9%

Length

12mm

MTBF

18160000h

Maximum Input Current

3 (Typ.)mA

Depth

13.4mm

Width

8.6mm

Power Signal Conversion Type

DC-DC

COO (Country of Origin):
TW

TRACOPOWER TSR 0.6WI Series Non-Isolated DC-DC Converter, 293 to 608kHz Switching Frequency Range, 8.6mm Width - TSR 0.6-48150WI


This non-isolated DC-DC converter provides an efficient solution for applications requiring a steady 15V output. With compact dimensions of 12mm in length, 8.6mm in width, and 13.4mm in depth, it is well-suited for PCB mounting in constrained spaces. It operates within an input voltage range of 20V to 72V, making it suitable for battery-powered systems and a variety of power applications.

Features & Benefits


• Efficiency of 94% minimises energy losses
• Overvoltage and overload protection for user safety
• Low standby current optimises power consumption
• Compact SIP package facilitates ease of integration

Applications


• Suitable for battery-powered electronic systems
• Ideal for distributed power system designs
• Effective in automation and control circuits
• Appropriate for low-profile electronics and devices

Can it handle varying input voltages efficiently?


Yes, this converter accepts input voltages between 20V and 72V.

Will it protect against short circuits?


Yes, it includes short circuit protection features.

Can I use it to replace linear regulators?


Yes, it serves as an effective alternative to less efficient linear regulators.
