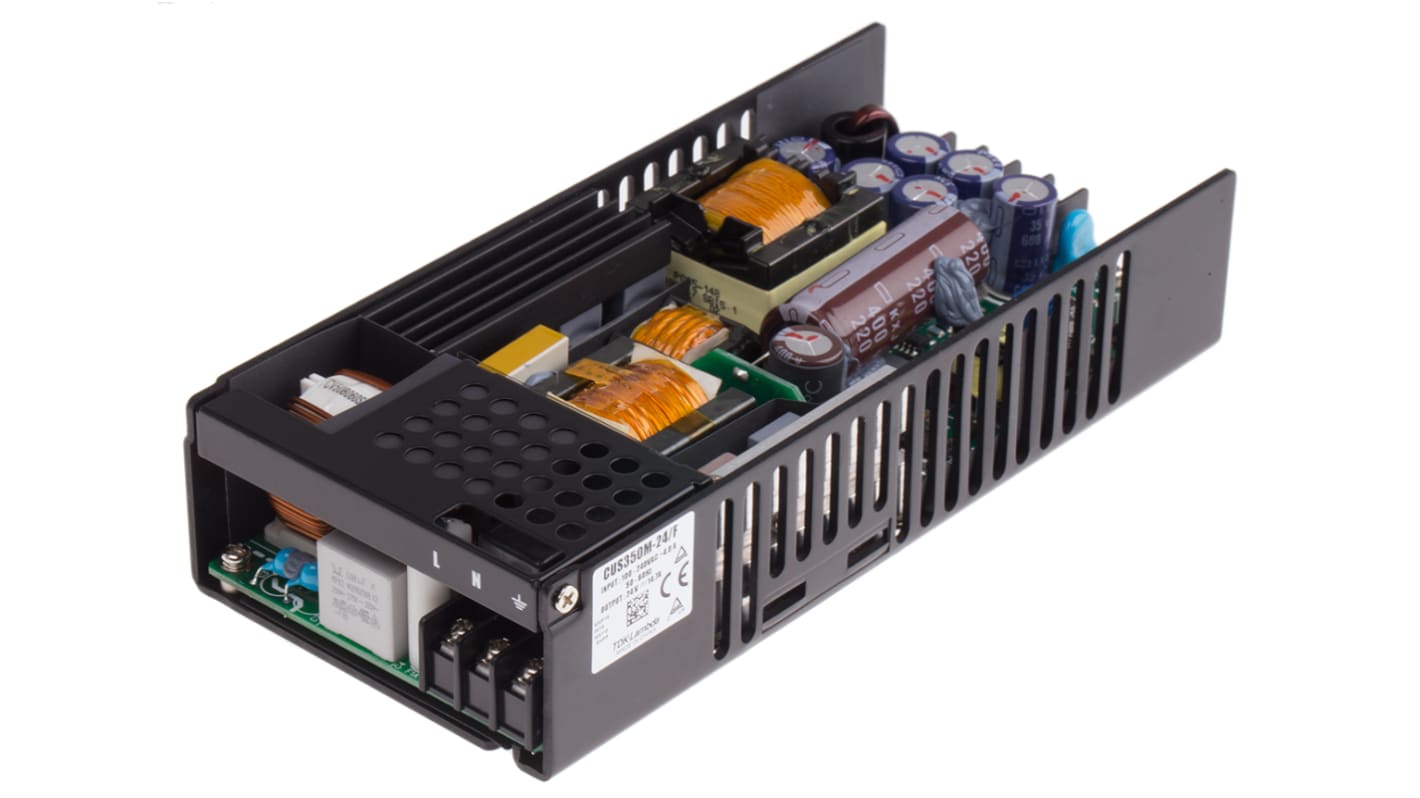

TDK-Lambda Switching Power Supply, CUS350M-24/F 24V dc, 14.7A, 352.8 W, Input 85V ac to 370 V dc, 265V ac

View all Switching Power Supplies
Bulk discount available

Subtotal (1 unit)*

£255.32

(exc. VAT)

£306.38

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 30 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£255.32
5 - 9£247.66
10 - 24£240.00
25 - 49£232.34
50 +£224.68

*price indicative

RS Stock No.:
914-7192
Distrelec Article No.:
301-36-570
Mfr. Part No.:
CUS350M-24/F
Brand:
TDK-Lambda
Find similar products by selecting one or more attributes.
Select all

Brand

TDK-Lambda

Product Type

Switching Power Supply

Maximum Output Voltage

24V dc

Number of Outputs

1

Mount Type

Rack

Power

352.8W

SMPS Output Current

14.7A

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

70°C

Standards/Approvals

CE, EN 55022-B, FCC-B, IEC 61000-4-11, IEC 61000-4-2 (lv 2,3), IEC 61000-4-3 (lv3), IEC 61000-4-4 (lv 3), IEC 61000-4-5 (lv 3,4), IEC 61000-4-6 (lv 3), IEC 61000-4-8 (lv 4), IEC/UL/CSA/EN 62368-1

Depth

40mm

Length

190mm

Width

87mm

Weight

850g

Maximum Input Voltage

370, 265V dc

Series

CUS350M

Efficiency

90%

Hazardous Area Certification

NO

Minimum Input Voltage

85V ac

Output Current

14.7A

COO (Country of Origin):
CN

TDK Lambda CS Series 35 to 600 W Switch Mode Industrial Power Supplies


The TDK-Lambda CS series is a range of reliable & cost effective Industrial power supplies. The CS series uses high temperature, long life electrolytic capacitors.

These Switch Mode power supplies can operate stably for a long time, offering an average life of up to 5 years and a low fail rate. The CS series power supplies are also very cost effective for common industrial use, thanks to the optimisation of components selection and circuit design. These TDK Lambda Switch mode Power Supplies can also operate in critical environments.

Providing a power solution for an operating temperature range of -20°C to 70°C and guaranteed to start up at -30°C at full load condition. The CS series Power Supplies can withstand 300 V ac input Voltage without damage.

High reliability and Very cost effective Power supply

Wide operating temperature range from -20°C to 70°C

Low temperature start up at -30°C

Operating input up to 280 Vac, no damage at 300 Vac

Over voltage, over current protected

Over temperature protected (300 W version)

EMI designed to meet: FCC-Class B, EN55011/EN55022-B

EMC designed to EN61000-4-2,-3,-4,-5,-6,-8,-11

Switch Mode - TDK-Lambda
