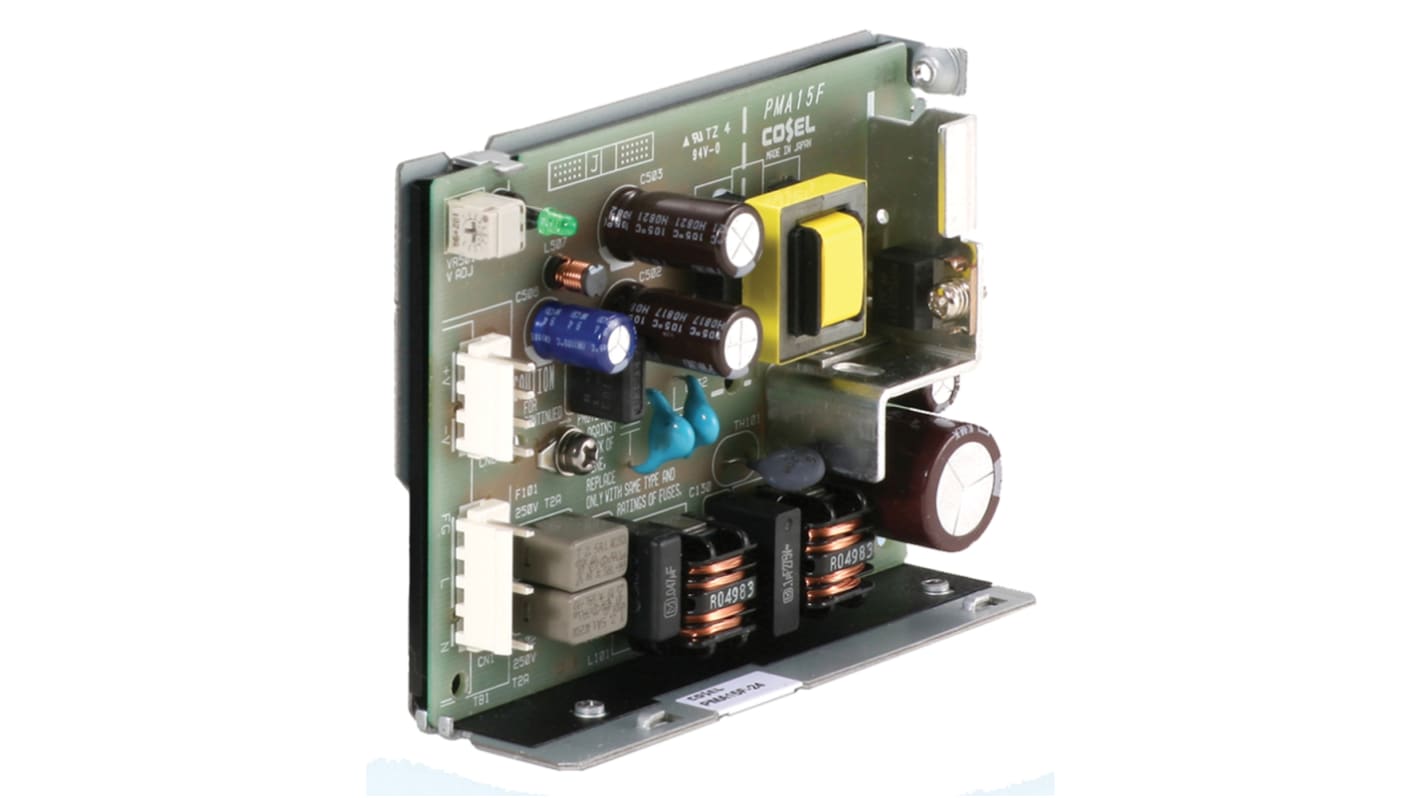

Cosel, PMA15F-5 Switching Power Supply 5V dc, 15 W 264V ac
- RS Stock No.:
- 828-8609
- Mfr. Part No.:
- PMA15F-5
- Brand:
- Cosel
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 828-8609
- Mfr. Part No.:
- PMA15F-5
- Brand:
- Cosel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 5V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis | |
| Power | 15W | |
| Minimum Operating Temperature | -10°C | |
| SMPS Output Current | 3A | |
| Maximum Operating Temperature | 70°C | |
| Weight | 230g | |
| Length | 103mm | |
| Depth | 78mm | |
| Width | 34.5mm | |
| Standards/Approvals | CE, cURus, RoHS | |
| Efficiency | 74% | |
| Maximum Input Voltage | 264V ac | |
| Series | PMA15F | |
| Minimum Input Voltage | 85V ac | |
| Output Current | 3A | |
| Hazardous Area Certification | No | |
| Select all | ||
|---|---|---|
Brand Cosel | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 5V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis | ||
Power 15W | ||
Minimum Operating Temperature -10°C | ||
SMPS Output Current 3A | ||
Maximum Operating Temperature 70°C | ||
Weight 230g | ||
Length 103mm | ||
Depth 78mm | ||
Width 34.5mm | ||
Standards/Approvals CE, cURus, RoHS | ||
Efficiency 74% | ||
Maximum Input Voltage 264V ac | ||
Series PMA15F | ||
Minimum Input Voltage 85V ac | ||
Output Current 3A | ||
Hazardous Area Certification No | ||
- COO (Country of Origin):
- JP
PMA Series
The PMA series of Cosel Power Supplies. Models come in a variety of specifications, including a current rating ranging from 0.7A to 20A. All Power supplies are open frame and come with a universal input. These power supplies are highly reliable, but the stress to P.C.B, such as twisting or bending may cause the defect of the unit, so handle the unit with care.
Features:
For medical electric equipment
Internal dual fuses
Harmonic attenuator (Complies with IEC61000-3-2)
Universal input 85 to 264 Vac
Efficiency increased with synchronous rectification technology (PMA60F, PMA100F)
Variety of option
Switch Mode Cosel Open Frame
Standards
UL60601-1, C-UL (CSA-C22.2 No.601.1), EN60601-1
