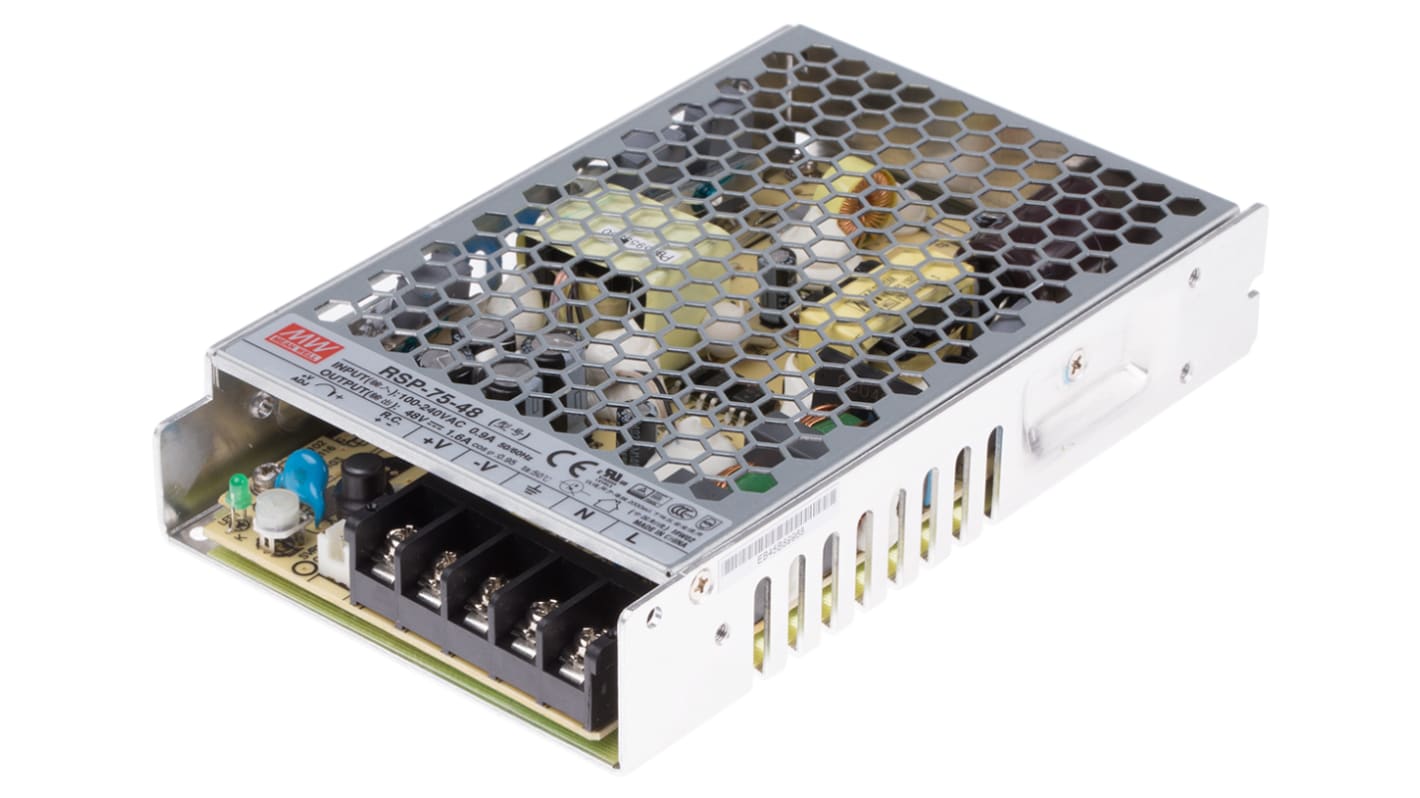

MEAN WELL Switching Power Supply, RSP-75-48 48V dc, 1.6A, 76.8 W, Input 85V ac to 370 V dc, 264V ac
- RS Stock No.:
- 815-7435
- Distrelec Article No.:
- 301-57-004
- Mfr. Part No.:
- RSP-75-48
- Brand:
- MEAN WELL
Bulk discount available
Subtotal (1 unit)*
£52.57
(exc. VAT)
£63.08
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 5 unit(s) shipping from 25 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £52.57 |
| 5 - 9 | £49.98 |
| 10 - 24 | £47.30 |
| 25 - 49 | £44.68 |
| 50 + | £42.05 |
*price indicative
- RS Stock No.:
- 815-7435
- Distrelec Article No.:
- 301-57-004
- Mfr. Part No.:
- RSP-75-48
- Brand:
- MEAN WELL
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MEAN WELL | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 48V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis | |
| Power | 76.8W | |
| SMPS Output Current | 1.6A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 70°C | |
| Width | 30mm | |
| Length | 159mm | |
| Depth | 30mm | |
| Weight | 440g | |
| Standards/Approvals | CSA C22.2 No. 62368-1, AS/NZS62368.1, BSMI CNS143361, CCCGB4943.1, TUV BS EN/EN 62368-1, IS 13252(Part1)/IEC 60950-1, EAC TP TC 00, UL 62368-1 | |
| Maximum Input Voltage | 370, 264V dc | |
| Series | RSP-75 | |
| Efficiency | 89% | |
| Output Current | 1.6A | |
| Minimum Input Voltage | 85V ac | |
| Hazardous Area Certification | NO | |
| Select all | ||
|---|---|---|
Brand MEAN WELL | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 48V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis | ||
Power 76.8W | ||
SMPS Output Current 1.6A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 70°C | ||
Width 30mm | ||
Length 159mm | ||
Depth 30mm | ||
Weight 440g | ||
Standards/Approvals CSA C22.2 No. 62368-1, AS/NZS62368.1, BSMI CNS143361, CCCGB4943.1, TUV BS EN/EN 62368-1, IS 13252(Part1)/IEC 60950-1, EAC TP TC 00, UL 62368-1 | ||
Maximum Input Voltage 370, 264V dc | ||
Series RSP-75 | ||
Efficiency 89% | ||
Output Current 1.6A | ||
Minimum Input Voltage 85V ac | ||
Hazardous Area Certification NO | ||
Mean Well RSP-75 Series 75W AC-DC Enclosed Switch Mode Power Suuplies
The Mean Well RSP-75 Series is a range of 75W AC/DC low profile, single output, enclosed type, switching power supply. The RSP-75 features up to date high performance circuit topology, PFC function and possess up to 89% high efficiency. This enclosed power supply can be cooled by free air convection from -30°C to +40°C, or +50°C ambient temperature under full load condition and even +70°C by suitable derating. The RSP-75 features a remote ON/OFF control, short circuit, overload, over voltage and over temperature protection. This AC/DC power supply complies with global requirements for UL, CUL, TUV, CCC, CB and CE regulations and also the TUV EN61558-2-16 and certificate, fulfilling the household electrical appliance requirements. Applications include industrial automation system, mechanical and electrical equipment, household appliance, instruments, or any systems that require 1U low profile installations.
30mm low profile design, suitable for 1U installation
Universal AC input range 85 to 264V
Built-in active PFC function
High efficiency up to 89%
Fan-less design, cooling by free air convection
-25 to+70°C operating range
Protection: Short circuit / Overload / Over voltage
Built-in constant current limiting circuit
Remote ON/OFF control
LED indicator for power on
Switch Mode - Mean Well Conformal Coated AC/DC Power Supplies
Note
Available on EPLAN.
Approvals
UL / CUL / TUV / CCC / CB / CE
Standards
UL60950-1, UL62368-1 / TUV EN60950-1, EN61558-1, EN61558-2-16 / CCC GB4943 / CB IEC60950-1, IEC62368-1
