TRACOPOWER Switching Power Supply, TMSB 2-124, 24V dc, 83mA, 2W, 1 Output, 120 → 370 V dc, 90 → 264 V ac

View all Switching Power Supplies
Bulk discount available

Subtotal (1 unit)*

£14.65

(exc. VAT)

£17.58

(inc. VAT)

Add to Basket
Select or type quantity
Being discontinued
  • Final 1 unit(s), ready to ship
Units
Per unit
1 - 4£14.65
5 - 9£14.21
10 - 24£13.77
25 - 49£13.18
50 +£12.59

*price indicative

RS Stock No.:
812-5078
Mfr. Part No.:
TMSB 2-124
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage

24V dc

Output Current

83mA

Power Rating

2W

Number of Outputs

1

Input Voltage

120 → 370 V dc, 90 → 264 V ac

Mounting Type

PCB Mount

Package Type

Encapsulated

Length

36.5mm

Width

28.4mm

Depth

14.8mm

Efficiency

76%

Minimum Temperature

-30°C

Maximum Temperature

+70°C

Weight

50g

COO (Country of Origin):
TW

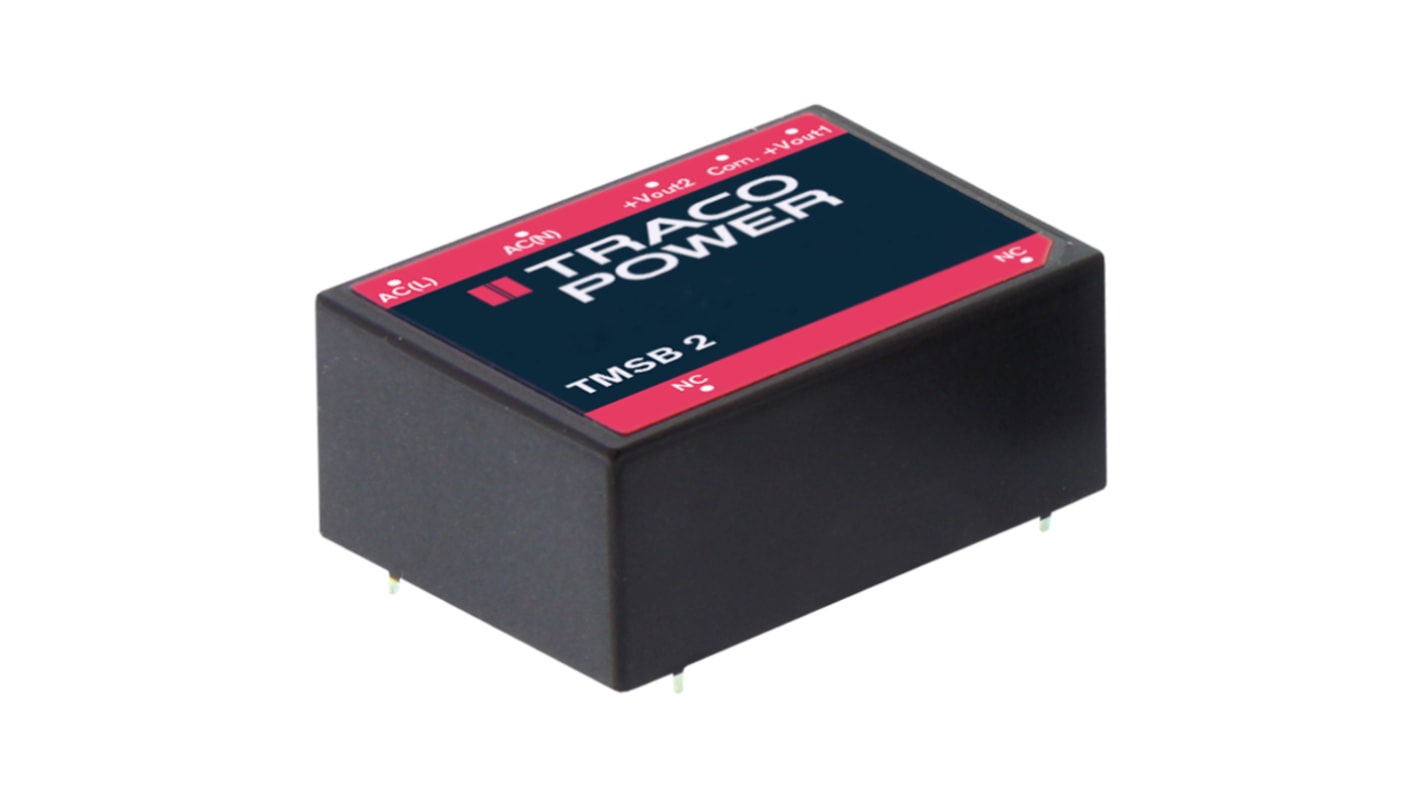

Traco 2W Encapsulated AC/DC Power Supply - TMSB 2 Series


The Tracopower TMSB-2 is a series of ultra-compact encapsulated AC-DC power supplies. The TMSB-2 series of AC-DC modules comes with the latest medical safety approvals, 2 x MOPP end a temperature range of -40°C to 80°C which qualifies them to be used everywhere in the world. This series of AC-DC power supplies is an interesting solution for space critical applications in medical, commercial and industrial electronic equipment. The TMSB-2 series also complies with the latest European ErP directive.

Standby power module to comply with ErP directive
No load input power ˂ 30mW
Constant power characteristics at 2W (no current limitation)
Suitable to drive relays, selenoids, capacitive loads and LED’s
Constant voltage auxiliary outputs 3.3 and 5 VDC
Operating temperature range –30°C to +70°C
EMI meets EN 55022, class B and FCC, level B
Short circuit and overload protection

Standards

IEC/EN 60950-1, UL 60950-1, EN 60335-1

Approvals

CB certificate for IEC 60950-1
UL/cUL 60950-1 / UL/cUL 60601-1


Switch Mode - Traco, TMSB 2 Series
