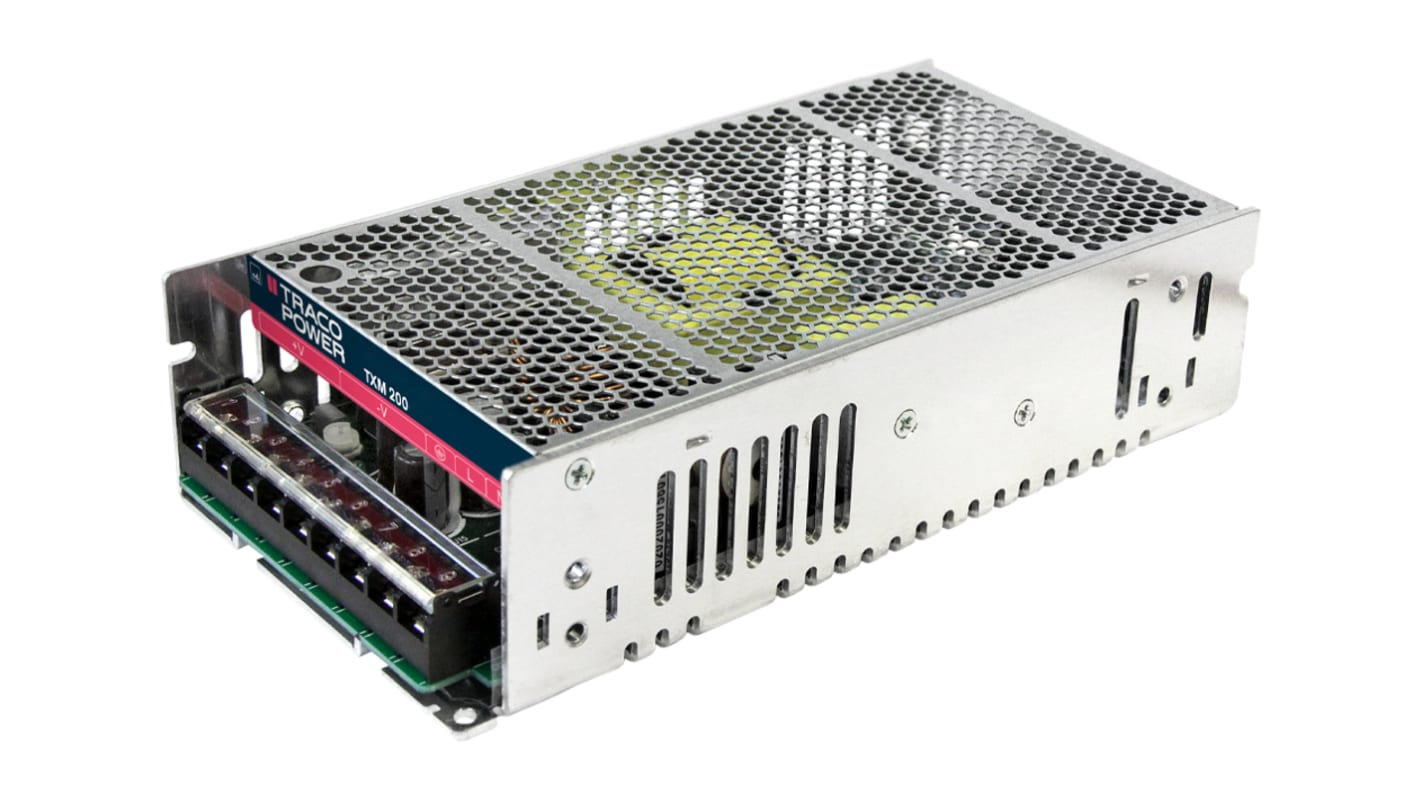

TRACOPOWER Switching Power Supply, TXM 200-124 24V dc, 8.4A, 40 W, Input 120 V dc, 90V ac to 264V ac
- RS Stock No.:
- 177-8068
- Distrelec Article No.:
- 301-40-722
- Mfr. Part No.:
- TXM 200-124
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£101.36
(exc. VAT)
£121.63
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 6 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £101.36 |
| 5 - 9 | £98.34 |
| 10 - 24 | £95.29 |
| 25 - 49 | £91.23 |
| 50 + | £87.17 |
*price indicative
- RS Stock No.:
- 177-8068
- Distrelec Article No.:
- 301-40-722
- Mfr. Part No.:
- TXM 200-124
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 24V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis | |
| Power | 40W | |
| SMPS Output Current | 8.4A | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 65°C | |
| Width | 99mm | |
| Standards/Approvals | IEC/EN/UL 60950-1, EN 61000-4-8, EN 61000-4-6, EN 61000-4-5, EN 61000-4-4, EN 61000-4-3, EN 61000-4-2, EN 61000-4-11, EN 61000-3-3, EN 55032, EN 55024 | |
| Length | 199mm | |
| Depth | 50.3mm | |
| Weight | 700g | |
| Efficiency | 88% | |
| Series | TXM 200 | |
| Maximum Input Voltage | 264V ac | |
| Output Current | 8.4A | |
| Minimum Input Voltage | 120, 90V dc | |
| Hazardous Area Certification | NO | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 24V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis | ||
Power 40W | ||
SMPS Output Current 8.4A | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 65°C | ||
Width 99mm | ||
Standards/Approvals IEC/EN/UL 60950-1, EN 61000-4-8, EN 61000-4-6, EN 61000-4-5, EN 61000-4-4, EN 61000-4-3, EN 61000-4-2, EN 61000-4-11, EN 61000-3-3, EN 55032, EN 55024 | ||
Length 199mm | ||
Depth 50.3mm | ||
Weight 700g | ||
Efficiency 88% | ||
Series TXM 200 | ||
Maximum Input Voltage 264V ac | ||
Output Current 8.4A | ||
Minimum Input Voltage 120, 90V dc | ||
Hazardous Area Certification NO | ||
- COO (Country of Origin):
- CN
The TXM 200 series is a family of 200 Watt encased AC/DC power supplies designed for cost critical applications. It extends the existing TXM series which ranged from 15 to 150 Watt with an additional 200 Watt series. With a compact metal case and screw terminal block connections, they are easy to install in any equipment. There are three models of single output voltages from 12 VDC to 48 VDC. They also feature an universal input to cover a wide range of applications.
Very compact metal cased power supplies
Cost optimized design
High operating temperature up to 70°C
Low no load power consumption <0.5W up to 75 W units
Screw terminal block
No internal fan up to 150 W models
Universal input AC input, full range
Withstand 300 VAC surge input for 5 sec.
Adjustable output voltage
