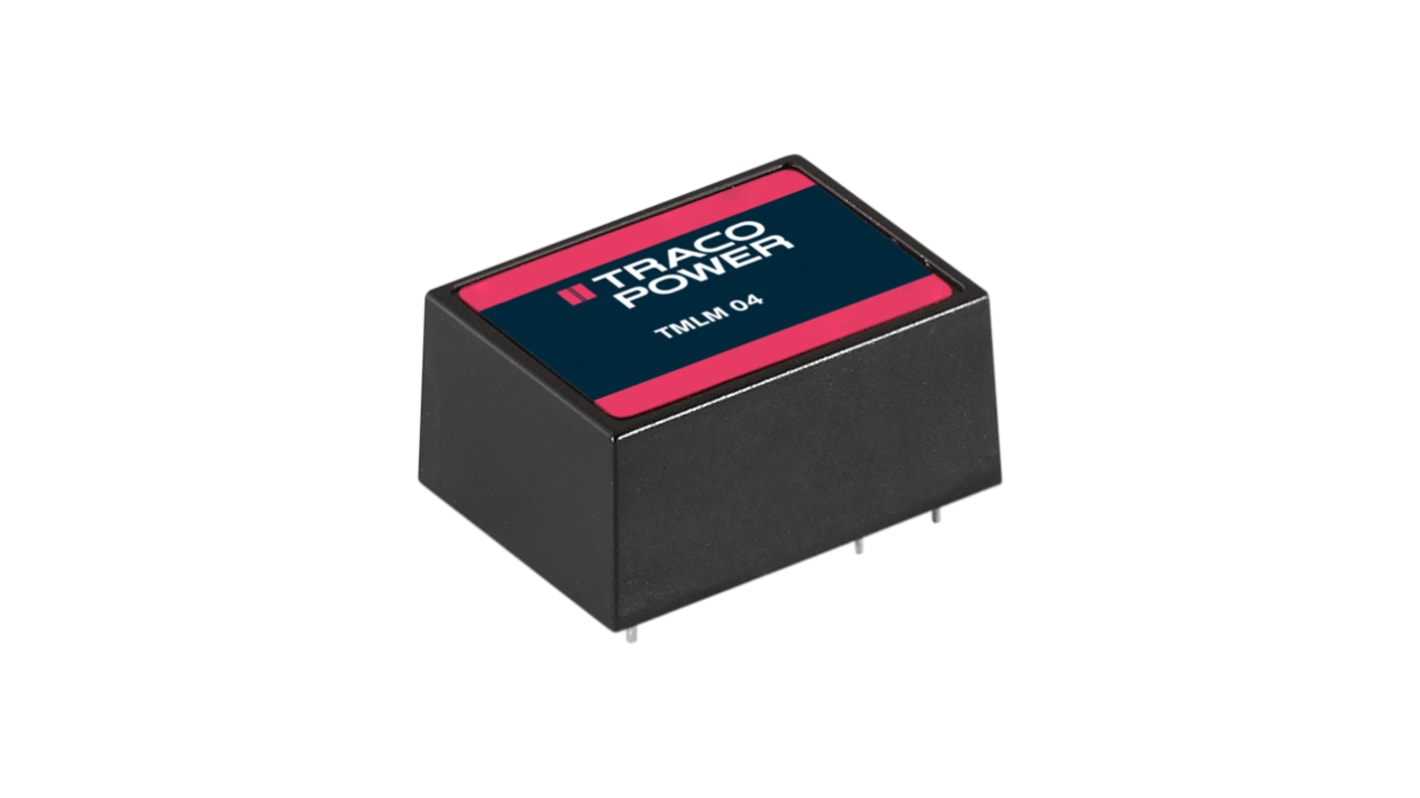

TRACOPOWER Switching Power Supply, TMLM 04112, 12V dc, 333mA, 4W, 1 Output, 90 → 264V ac Input Voltage
- RS Stock No.:
- 706-6010
- Distrelec Article No.:
- 300-80-823
- Mfr. Part No.:
- TMLM 04112
- Brand:
- TRACOPOWER
Save 14% when you buy 50 units
Subtotal (1 unit)*
£14.61
(exc. VAT)
£17.53
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 214 unit(s) ready to ship
- Plus 48 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £14.61 |
| 5 - 9 | £14.18 |
| 10 - 24 | £13.74 |
| 25 - 49 | £13.15 |
| 50 + | £12.56 |
*price indicative
- RS Stock No.:
- 706-6010
- Distrelec Article No.:
- 300-80-823
- Mfr. Part No.:
- TMLM 04112
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 12V dc | |
| Output Current | 333mA | |
| Power Rating | 4W | |
| Number of Outputs | 1 | |
| Input Voltage | 90 → 264V ac | |
| Mounting Type | PCB Mount | |
| Package Type | Encapsulated | |
| Length | 36.5mm | |
| Width | 27mm | |
| Depth | 17.1mm | |
| Series | TMLM | |
| Efficiency | 76% | |
| Maximum Temperature | +60°C | |
| Weight | 26g | |
| Minimum Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Output Current 333mA | ||
Power Rating 4W | ||
Number of Outputs 1 | ||
Input Voltage 90 → 264V ac | ||
Mounting Type PCB Mount | ||
Package Type Encapsulated | ||
Length 36.5mm | ||
Width 27mm | ||
Depth 17.1mm | ||
Series TMLM | ||
Efficiency 76% | ||
Maximum Temperature +60°C | ||
Weight 26g | ||
Minimum Temperature -25°C | ||
- COO (Country of Origin):
- TW
Traco Power Switching Power Supply, Encapsulated Plastic Housing, PCB Mounting - TMLM Series - TMLM 04112
When you want to step down voltage from your electrical source, put this Traco Power switching power supply on the case. You can give it a wide range of inputs from 90 to 264V AC or 120 to 370V DC and get a stable output of 12V DC in return. With a small size of 36.5 (L) x 27 (W) x 17.1mm (D), it's a space-saving product that's easy to squeeze onto busy boards. A high efficiency rating of 70% indicates energy waste is kept to a minimum.
Features & Benefits
• 3,000V AC isolation voltage ensures it's protected against surges
• Mean time between failures of more than 330,000 hours, so it's highly reliable
• Low power rating of 4W shows it's an energy saver
• Suitable for harsh environments thanks to its operating temperature range of -25°C to +60°C
• Light weight of 26g keeps your setup free of unnecessary strain
• Mean time between failures of more than 330,000 hours, so it's highly reliable
• Low power rating of 4W shows it's an energy saver
• Suitable for harsh environments thanks to its operating temperature range of -25°C to +60°C
• Light weight of 26g keeps your setup free of unnecessary strain
Applications
• Telecommunications networks
• Power distribution equipment
• Automotive industry
• Power distribution equipment
• Automotive industry
Is this a through-hole device?
Yes. This switching power supply supports through-hole mounting to ensure a strong and vibration-proof connection to your PCB.
