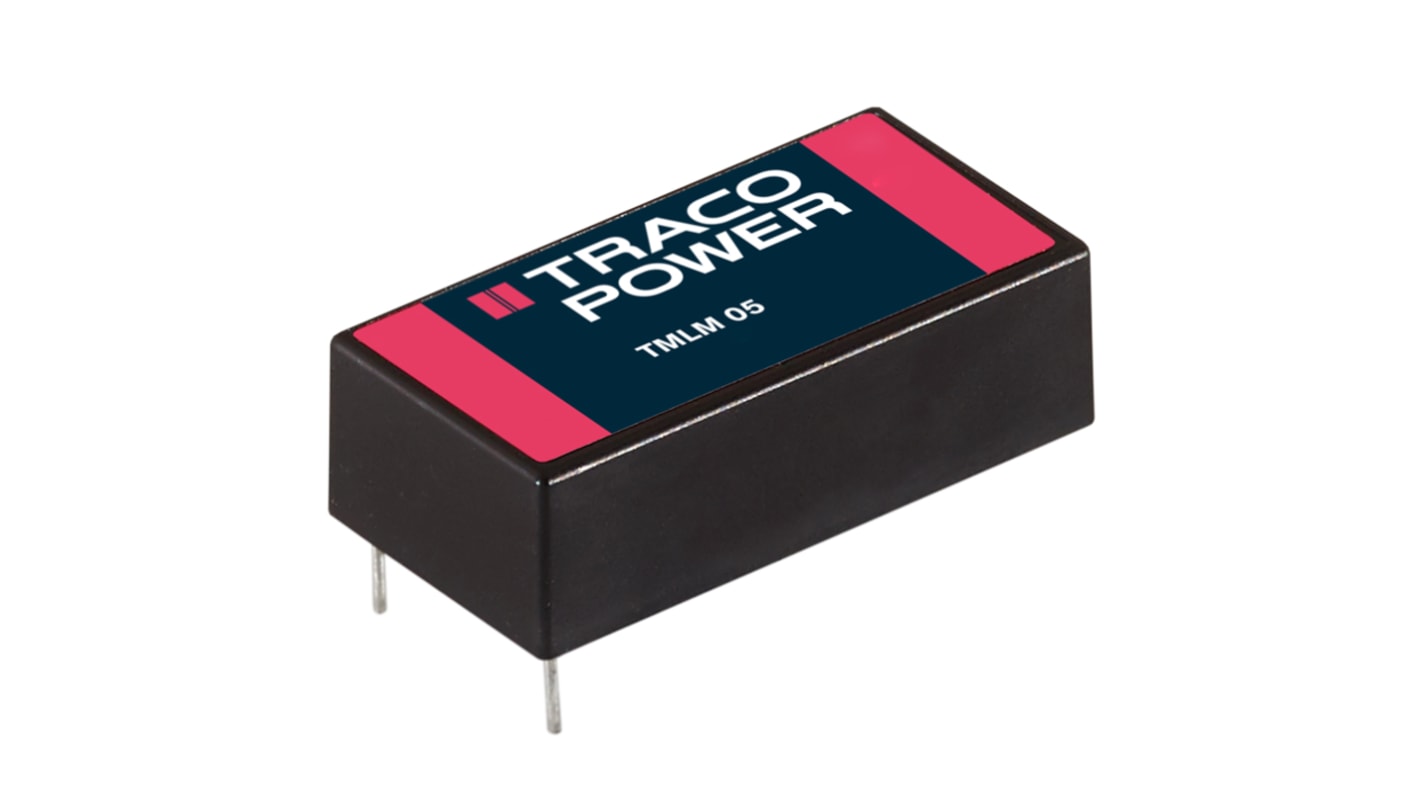

TRACOPOWER Switching Power Supply, TMLM 05105, 5V dc, 1A, 5W, 1 Output, 90 → 264V ac Input Voltage
- RS Stock No.:
- 200-3509
- Mfr. Part No.:
- TMLM 05105
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£27.08
(exc. VAT)
£32.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 28 unit(s) ready to ship
- Plus 69 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £27.08 |
| 5 - 9 | £26.33 |
| 10 - 24 | £25.62 |
| 25 - 49 | £24.94 |
| 50 + | £24.30 |
*price indicative
- RS Stock No.:
- 200-3509
- Mfr. Part No.:
- TMLM 05105
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 5V dc | |
| Output Current | 1A | |
| Power Rating | 5W | |
| Number of Outputs | 1 | |
| Input Voltage | 90 → 264V ac | |
| Mounting Type | PCB Mount | |
| Package Type | Encapsulated | |
| Length | 50.8mm | |
| Width | 25.4mm | |
| Medical Approved | No | |
| Depth | 15.16mm | |
| Series | TMLM | |
| Efficiency | 75% | |
| Maximum Temperature | +60°C | |
| Minimum Temperature | -25°C | |
| Weight | 30g | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 5V dc | ||
Output Current 1A | ||
Power Rating 5W | ||
Number of Outputs 1 | ||
Input Voltage 90 → 264V ac | ||
Mounting Type PCB Mount | ||
Package Type Encapsulated | ||
Length 50.8mm | ||
Width 25.4mm | ||
Medical Approved No | ||
Depth 15.16mm | ||
Series TMLM | ||
Efficiency 75% | ||
Maximum Temperature +60°C | ||
Minimum Temperature -25°C | ||
Weight 30g | ||
- COO (Country of Origin):
- TW
Traco Power Switching Power Supply, 1000mA Output Current, 71% Efficiency - TMLM Series - TMLM 05105
Want a quick and easy way to step voltages down? Use this switching power supply from Traco Power as a middleman between your mains source and device. It takes inputs from 90 to 264V AC and steps them down to a steady 5V DC to suit low-powered devices. Built-in short-circuit and overload protection keeps your system running even in the face of faults and surges. Thanks to low 130mV ripple and noise and a fully encapsulated design, signals remain crystal clear and you get reliable performance. Installation is speedy – just push the pins through holes in your PCB and solder them into place.
Features & Benefits
• Works in extreme temperatures between -25°C to +60°C for use in demanding applications
• Light 30g weight won't strain thin PCBs
• Compact dimensions of 25.4 (W) x 50.8mm (L) x 15.16mm (H) make it suitable for busy setups and portable equipment
• Light 30g weight won't strain thin PCBs
• Compact dimensions of 25.4 (W) x 50.8mm (L) x 15.16mm (H) make it suitable for busy setups and portable equipment
Applications
• Commercial electronics
• Telecommunication systems
• Manufacturing facilities
• Telecommunication systems
• Manufacturing facilities
How long-lasting is this device?
This device has a mean time between failures of 330,000 hours, so you can be sure of its long-term performance.
