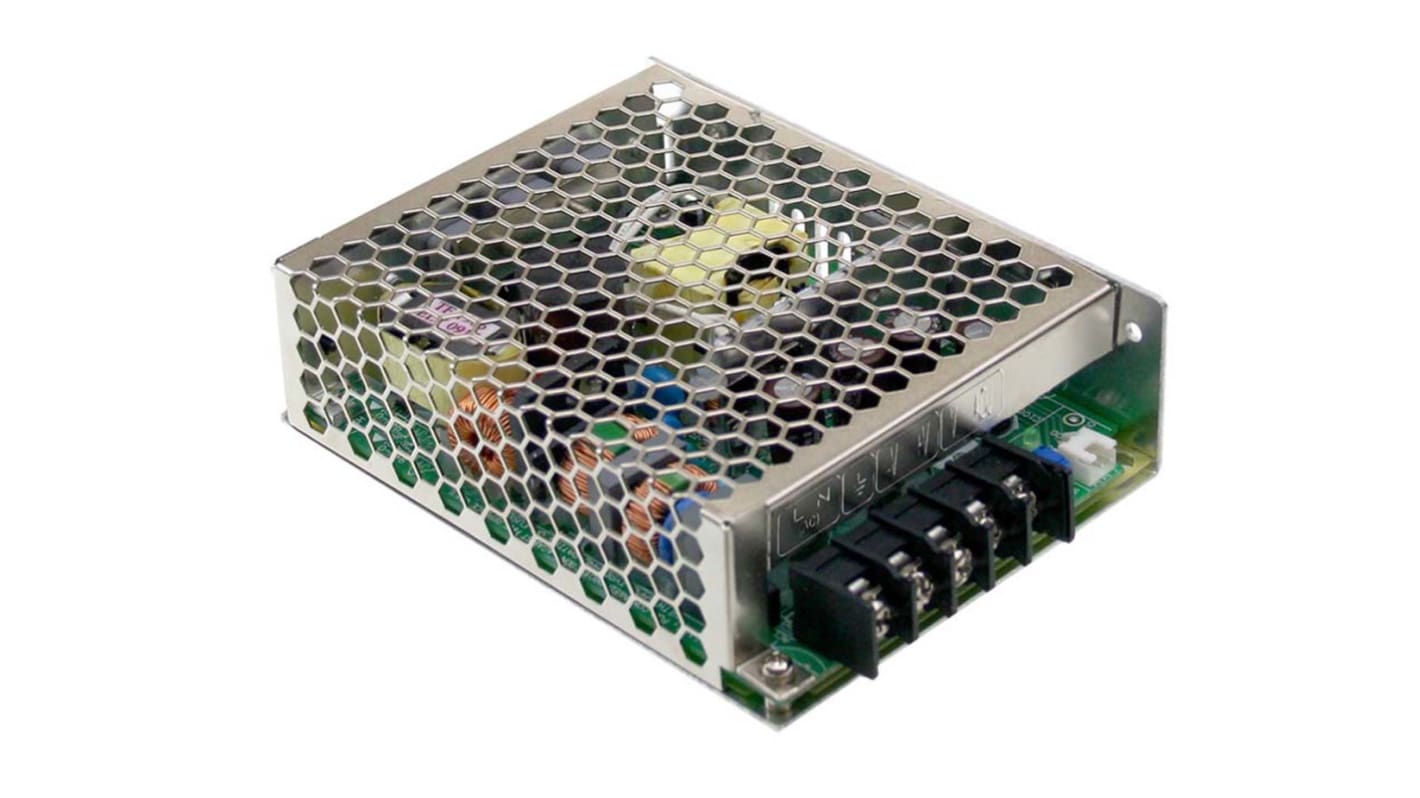

MEAN WELL Switching Power Supply, HRP-75-15RS, 15V dc, 5A, 75W, 1 Output, 120 → 370 V dc, 85 → 264 V ac
- RS Stock No.:
- 705-9756
- Mfr. Part No.:
- HRP-75-15RS
- Brand:
- MEAN WELL
10 In stock - FREE next working day delivery available
Price Each
£36.90
(exc. VAT)
£44.28
(inc. VAT)
Units | Per unit |
---|---|
1 - 4 | £36.90 |
5 - 9 | £35.79 |
10 - 24 | £34.69 |
25 - 49 | £33.58 |
50 + | £32.47 |
- RS Stock No.:
- 705-9756
- Mfr. Part No.:
- HRP-75-15RS
- Brand:
- MEAN WELL
Technical Reference
Legislation and Compliance
Product Details
HRP-75 Series Single Output Power Supply with PFC Function
High efficiency, long life and high reliability
No load power consumption <0.5W
Built-in active PFC function
Built-in remote ON-OFF control
Short circuit, over load and over voltage protection
Withstands 300Vac surge input for 5 seconds
1U low profile 38mm
Power factor correction to EN61000-3-2,-3
EMC compliance to EN55022 class B
No load power consumption <0.5W
Built-in active PFC function
Built-in remote ON-OFF control
Short circuit, over load and over voltage protection
Withstands 300Vac surge input for 5 seconds
1U low profile 38mm
Power factor correction to EN61000-3-2,-3
EMC compliance to EN55022 class B
Note
Power derates above 30°C.
MTBF to MIL-HDBK-217F.
MTBF to MIL-HDBK-217F.
Standards
UL60950-1, TUV EN60950-1
Approvals
UL/cUL recognised, TUV, CB
Specifications
Attribute | Value |
---|---|
Output Voltage | 15V dc |
Output Current | 5A |
Power Rating | 75W |
Number of Outputs | 1 |
Input Voltage | 120 → 370 V dc, 85 → 264 V ac |
Mounting Type | Chassis Mount |
Package Type | Enclosed |
Length | 129mm |
Width | 98mm |
Depth | 38mm |
Efficiency | 88% |
Weight | 470g |
Minimum Temperature | -40°C |
Maximum Temperature | +70°C |
