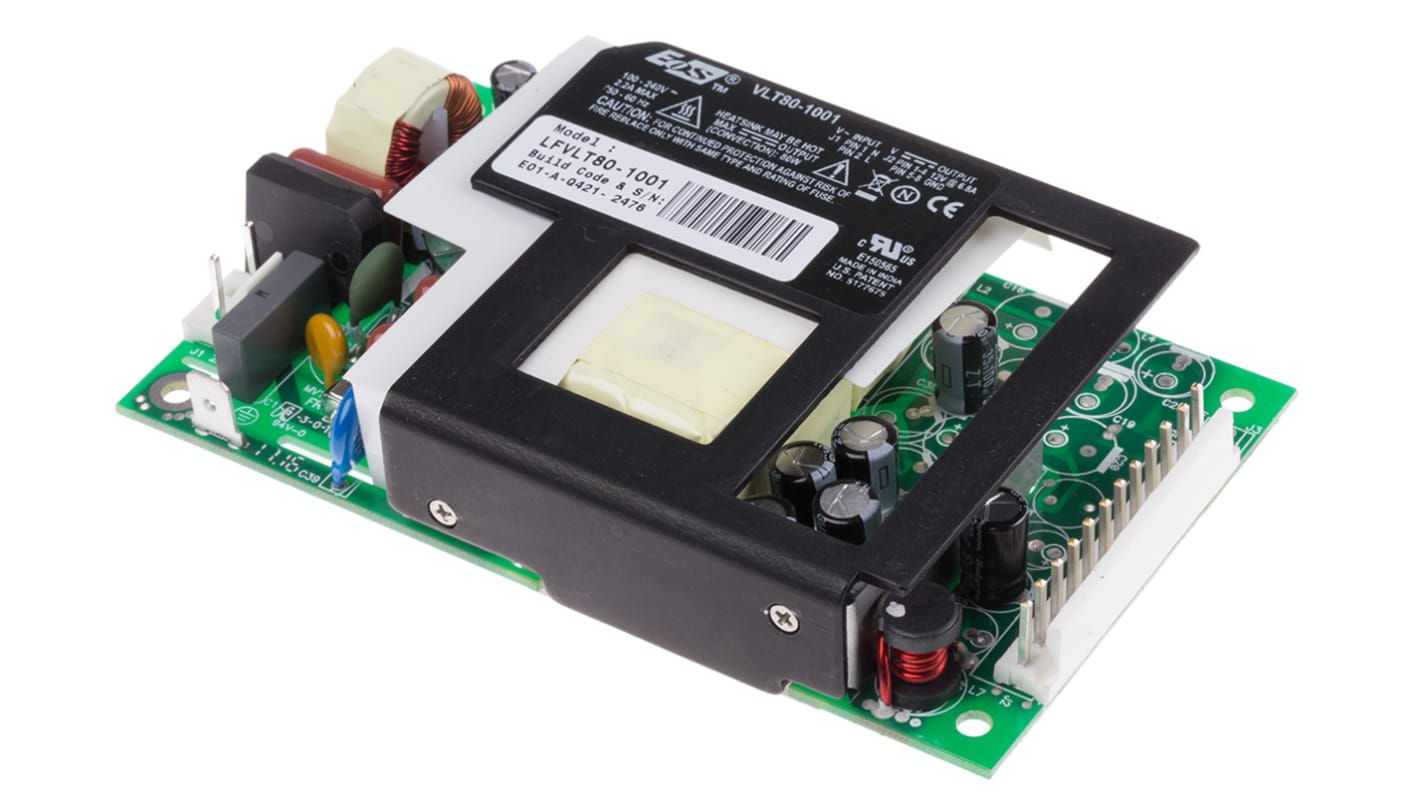

EOS Switching Power Supply, LFVLT80-1001, 12V dc, 6.8A, 80W, 1 Output, 90 → 264V ac Input Voltage
- RS Stock No.:
- 396-1835
- Mfr. Part No.:
- LFVLT80-1001
- Brand:
- EOS
Subtotal (1 unit)*
£148.26
(exc. VAT)
£177.91
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 28 unit(s) shipping from 06 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £148.26 |
*price indicative
- RS Stock No.:
- 396-1835
- Mfr. Part No.:
- LFVLT80-1001
- Brand:
- EOS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EOS | |
Output Voltage | 12V dc | |
Output Current | 6.8A | |
Power Rating | 80W | |
Number of Outputs | 1 | |
Input Voltage | 90 → 264V ac | |
Mounting Type | Chassis Mount | |
Package Type | Open Frame | |
Length | 127mm | |
Width | 77.2mm | |
Depth | 27.25mm | |
Efficiency | 85% | |
Maximum Temperature | +50°C | |
Minimum Temperature | 0°C | |
Weight | 250g | |
Select all | ||
---|---|---|
Brand EOS | ||
Output Voltage 12V dc | ||
Output Current 6.8A | ||
Power Rating 80W | ||
Number of Outputs 1 | ||
Input Voltage 90 → 264V ac | ||
Mounting Type Chassis Mount | ||
Package Type Open Frame | ||
Length 127mm | ||
Width 77.2mm | ||
Depth 27.25mm | ||
Efficiency 85% | ||
Maximum Temperature +50°C | ||
Minimum Temperature 0°C | ||
Weight 250g | ||
- COO (Country of Origin):
- IN
EOS Embedded Switch Mode Power Supply
The EOS VLT series 80W single output AC to DC embedded switch mode power supply has an output current of 6A at 12VDC. It has a universal input supply voltage rating ranging from 90VAC to 264VAC
Note:
Connectors are not supplied
VLT130 current rating with a fan (180LFM). Power rating with forced airflow requires a user-supplied 15CFM fan
Note:
Connectors are not supplied
VLT130 current rating with a fan (180LFM). Power rating with forced airflow requires a user-supplied 15CFM fan
Features and Benefits
Overvoltage
Power limit
Short circuit protection
Dual channel output
High reliability MTBF greater than 100,000 hours
Operating temperature ranges between -20°C and 50°C
Power limit
Short circuit protection
Dual channel output
High reliability MTBF greater than 100,000 hours
Operating temperature ranges between -20°C and 50°C
Applications
Data networking
Industrial
Multimedia
Industrial
Multimedia
Certifications
IEC950
EN60950
UL1950
EMI/RFI to CISPR 55011//14-B. FCC 15-B
Power factor correction to EN61000-3-2 (VLT80 and VLT130)
VDE approved
EN60950
UL1950
EMI/RFI to CISPR 55011//14-B. FCC 15-B
Power factor correction to EN61000-3-2 (VLT80 and VLT130)
VDE approved
