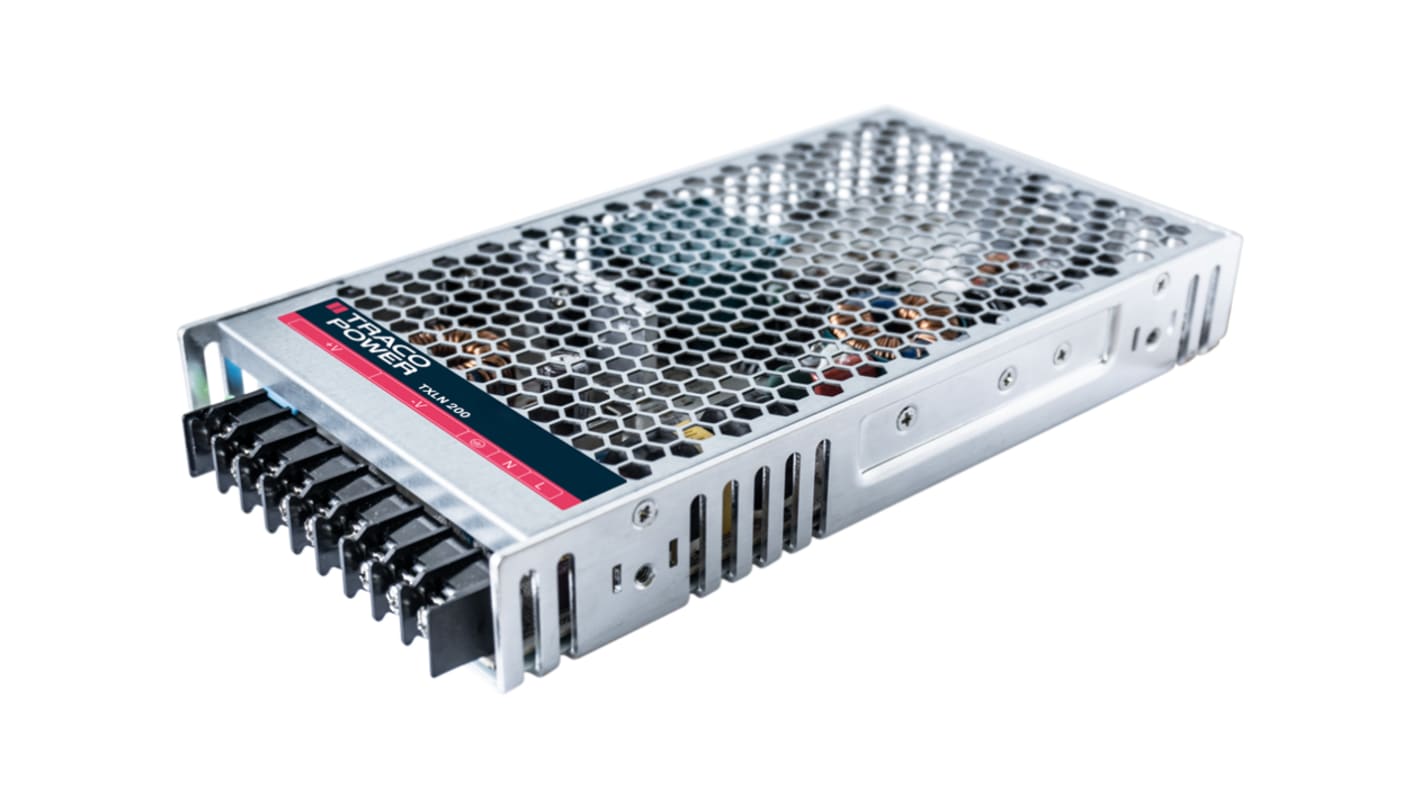

TRACOPOWER Power Supply, TXLN 200-136 36V dc, 42000mA, 200 W, Input 85V ac to 264V ac
- RS Stock No.:
- 284-8930
- Mfr. Part No.:
- TXLN 200-136
- Brand:
- TRACOPOWER
Subtotal (1 unit)*
£78.67
(exc. VAT)
£94.40
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1 unit(s) shipping from 22 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £78.67 |
*price indicative
- RS Stock No.:
- 284-8930
- Mfr. Part No.:
- TXLN 200-136
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | Power Supply | |
| Maximum Output Voltage | 36V dc | |
| Number of Outputs | 1 | |
| Mount Type | Chassis | |
| Power | 200W | |
| Minimum Operating Temperature | -30°C | |
| SMPS Output Current | 42000mA | |
| Maximum Operating Temperature | 70°C | |
| Weight | 770g | |
| Standards/Approvals | UL 62368-1, IEC 62368-1, EN 62368-1 | |
| Series | TXLN | |
| Maximum Input Voltage | 264V ac | |
| Efficiency | 89% | |
| Output Current | 5.6A | |
| Hazardous Area Certification | IEC 62368-1, EN62368-1, UL | |
| Minimum Input Voltage | 85V ac | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type Power Supply | ||
Maximum Output Voltage 36V dc | ||
Number of Outputs 1 | ||
Mount Type Chassis | ||
Power 200W | ||
Minimum Operating Temperature -30°C | ||
SMPS Output Current 42000mA | ||
Maximum Operating Temperature 70°C | ||
Weight 770g | ||
Standards/Approvals UL 62368-1, IEC 62368-1, EN 62368-1 | ||
Series TXLN | ||
Maximum Input Voltage 264V ac | ||
Efficiency 89% | ||
Output Current 5.6A | ||
Hazardous Area Certification IEC 62368-1, EN62368-1, UL | ||
Minimum Input Voltage 85V ac | ||
- COO (Country of Origin):
- TW
The TRACOPOWER family of encased power supplies designed for a wide range of cost critical applications. With a low profile metal case and screw terminal block connection, they are easy to install in any equipment. These power supplies have universal input and comply with European EMC standards and the Low Voltage Directive
Compact metal case with screw terminal block
Convection cooled
High efficiency
Short circuit, overvoltage and overload protection
3 year product warranty
