TDK-Lambda Switching Power Supply, KWD15-1515, ±15V dc, ±520mA, 15W, Dual Output, 110 → 340 V dc, 85 →
- RS Stock No.:
- 217-6430
- Mfr. Part No.:
- KWD15-1515
- Brand:
- TDK-Lambda

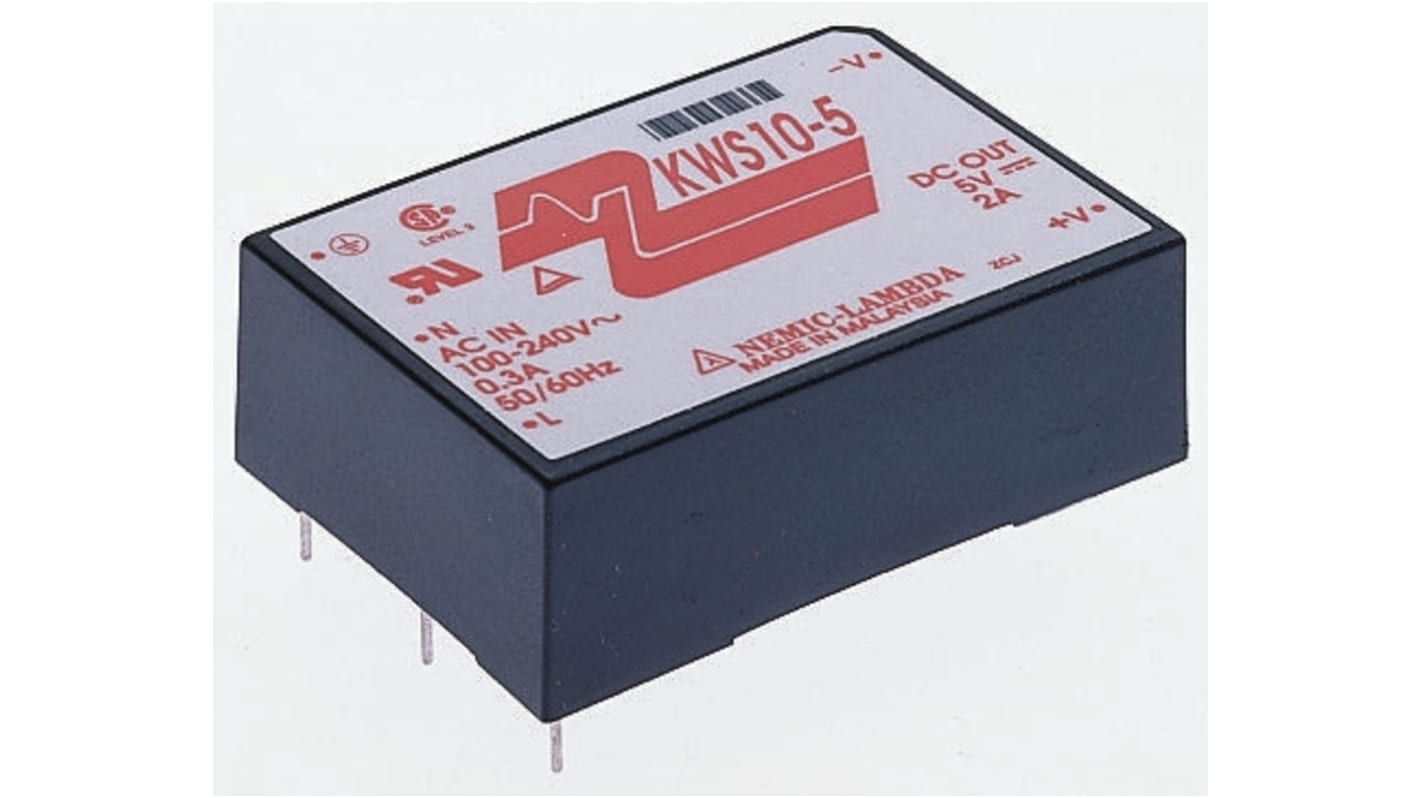

Image representative of range
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 217-6430
- Mfr. Part No.:
- KWD15-1515
- Brand:
- TDK-Lambda
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TDK-Lambda | |
Output Voltage | ±15V dc | |
Output Current | ±520mA | |
Power Rating | 15W | |
Number of Outputs | 2 | |
Input Voltage | 110 → 340 V dc, 85 → 265 V ac | |
Mounting Type | PCB Mount | |
Package Type | Encapsulated | |
Length | 70mm | |
Width | 48mm | |
Depth | 23.5mm | |
Efficiency | 73% | |
Weight | 150g | |
Priced to Clear | Yes | |
Minimum Temperature | -10°C | |
Maximum Temperature | +70°C | |
Select all | ||
---|---|---|
Brand TDK-Lambda | ||
Output Voltage ±15V dc | ||
Output Current ±520mA | ||
Power Rating 15W | ||
Number of Outputs 2 | ||
Input Voltage 110 → 340 V dc, 85 → 265 V ac | ||
Mounting Type PCB Mount | ||
Package Type Encapsulated | ||
Length 70mm | ||
Width 48mm | ||
Depth 23.5mm | ||
Efficiency 73% | ||
Weight 150g | ||
Priced to Clear Yes | ||
Minimum Temperature -10°C | ||
Maximum Temperature +70°C | ||
- COO (Country of Origin):
- VN
TDK-Lambda, PCB Mount, Encapsulated, Switch Mode AC-DC Power Supply - KW Series
TDk Lambda KW series of encapsulated PCB power supplies off a compact solution to a wide range of applications. The compact footprint of the KW series makes it suitable for space-critical applications without external components. The series is highly efficient with reduced power losses, making board thermal management easier.
Features and Benefits
Small, lightweight & universal input.
Input 85-265Vac, ideal for small systems and instrumentation applications worldwide.
Overvoltage/Overcurrent protection.
Plastic case complies to UL94V-0.
Conducted noise (EMI) VCCI-II and FCC-B (will meet VDE-B with external capacitor).
Typical Applications
Industrial.
Test & measurement.
Communications & Broadcast.
Note
MTBF to MIL-HDBK-217D.
Should not be run under sustained short circuit conditions.
Should not be run under sustained short circuit conditions.
Standards
IEC 950, EN60950
Approvals
TUV, UL recognised, CSA certified
