Cosel Switching Power Supply, PBW30F-5-N, ±5V dc, 1.5A, 15W, Dual Output, 110 → 370 V dc, 85 → 264 V ac

RS Stock No.:: 603-1145
Mfr. Part No.:: PBW30F-5-N
Brand:: Cosel

Cosel Switching Power Supply, PBW30F-5-N, ±5V dc, 1.5A, 15W, Dual Output, 110 → 370 V dc, 85 → 264 V ac

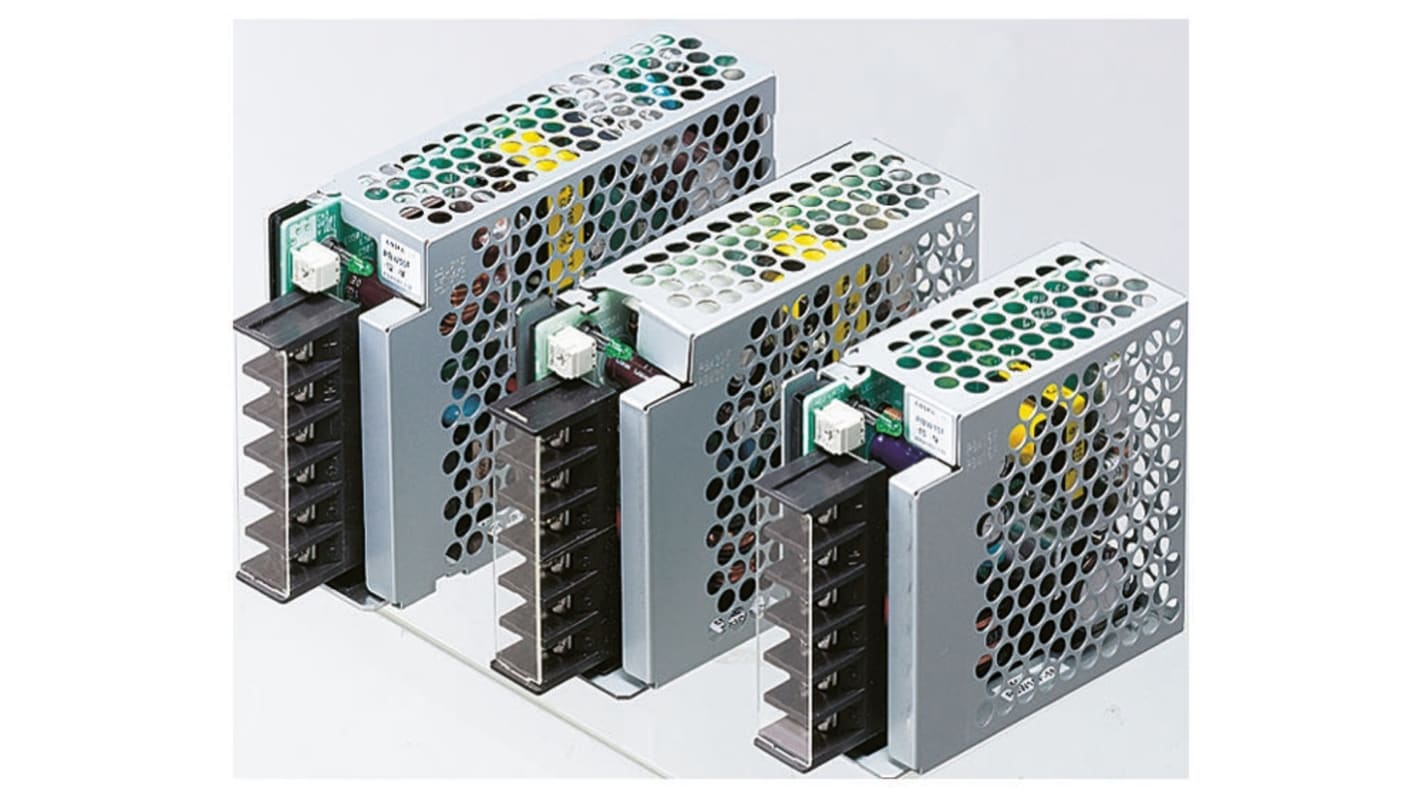

Image representative of range

4 In stock - FREE next working day delivery available

Added

Price Each

£57.73

(exc. VAT)

£69.28

(inc. VAT)

Units	Per unit
1 - 4	£57.73
5 - 9	£56.00
10 - 24	£54.84
25 - 49	£53.69
50 +	£52.53

RS Stock No.:: 603-1145
Mfr. Part No.:: PBW30F-5-N
Brand:: Cosel

Technical Reference

Legislation and Compliance

COO (Country of Origin):: JP

Product Details

Cosel PBW Series Switch Mode Power Supplies

The PBW series of switch mode power supplies (SMPS) from Cosel are a compact, lightweight solution. PBW switching power supplies feature a universal rated input of 85 V ac to 264 V ac making them a versatile solution.

Features and Benefits:

Harmonic attenuator

Built-in overcurrent protection

PFC function

Parallel operation and parallel redundancy

Convection cooled

Note

Carry out the necessary testing on end equipment with the power supply installed as per required EMC/EMI regulations

Standards

(At only AC input) UL60950-1, C-UL(CSA60950-1), EN60950-1, EN50178 Complies with DEN-AN
Conducted noise complies with FCC Part15 class B, VCCI-B, CISPR22-B, EN55011-B, EN55022-B
Harmonic attenuator complies with IEC61000-3-2 (Not built-in to active filte

Specifications

Attribute	Value
Output Voltage	±5V dc
Output Current	1.5 A, 2A
Power Rating	15W
Number of Outputs	2
Input Voltage	110 → 370 V dc, 85 → 264 V ac
Mounting Type	Chassis Mount
Package Type	Enclosed
Length	119.5mm
Width	34.5mm
Depth	78mm
Efficiency	75%
Weight	270g
Maximum Temperature	+71°C
Minimum Temperature	-10°C
