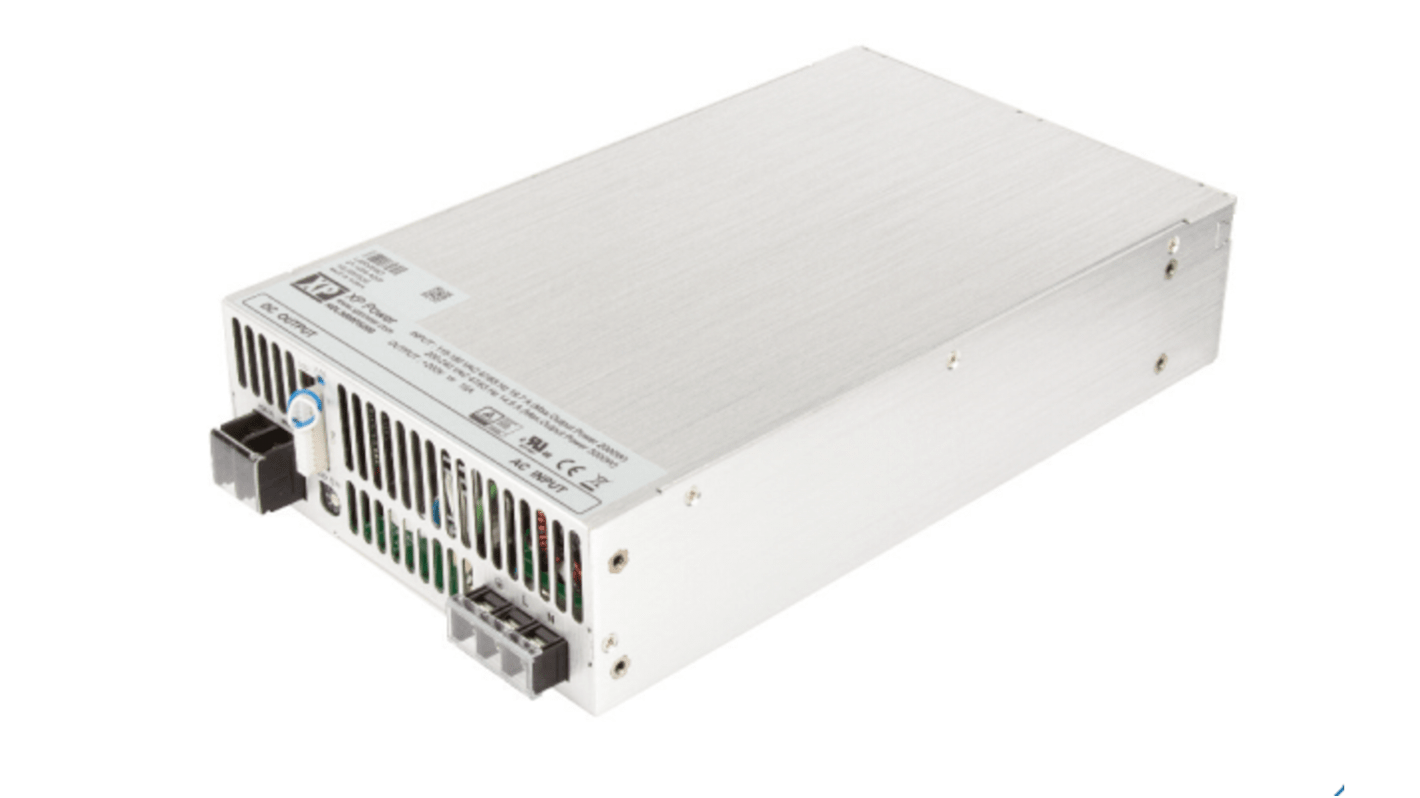

XP Power Switching Power Supply, HDL3000PS400, 400V dc, 7.5A, 3kW, 1 Output, 90 → 264V ac Input Voltage
- RS Stock No.:
- 210-9108
- Mfr. Part No.:
- HDL3000PS400
- Brand:
- XP Power
Available to back order for despatch 29/10/2024
Added
Price Each
£1,366.65
(exc. VAT)
£1,639.98
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £1,366.65 |
| 5 - 9 | £1,325.65 |
| 10 - 24 | £1,284.65 |
| 25 - 49 | £1,243.65 |
| 50 + | £1,202.65 |
- RS Stock No.:
- 210-9108
- Mfr. Part No.:
- HDL3000PS400
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The HDL3000HV series offers users both output voltage and output current programming (0 – 105%) via resistance, voltage or digital bus in a very high efficiency, high power density 3 kW chassis mount package. Measuring just 6.69” x 2.52” x 11.02”, the HDL3000 also features active current sharing, built-in O-ring diode, remote on/off and a power OK signal. The standby output is available whenever the mains supply is present and can be user selected as either 5 V at 0.5 A or 9V at 0.3 A.
It has High efficiency up to 92%
It also has High power density
It supports DC outputs from 150-400VDC
It has a programmable output voltage (0-105%)
It has a programmable output current (0-105%)
It supports I2C, RS485 & RS232 interfaces
It also has High power density
It supports DC outputs from 150-400VDC
It has a programmable output voltage (0-105%)
It has a programmable output current (0-105%)
It supports I2C, RS485 & RS232 interfaces
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 400V dc |
| Output Current | 7.5A |
| Power Rating | 3kW |
| Number of Outputs | 1 |
| Input Voltage | 90 → 264V ac |
| Mounting Type | Chassis Mount |
| Package Type | Enclosed |
| Length | 6.69mm |
| Width | 2.52mm |
| Depth | 301.49mm |
| Efficiency | 92% |
| Series | HDL3000-HV |
| Minimum Temperature | -20°C |
