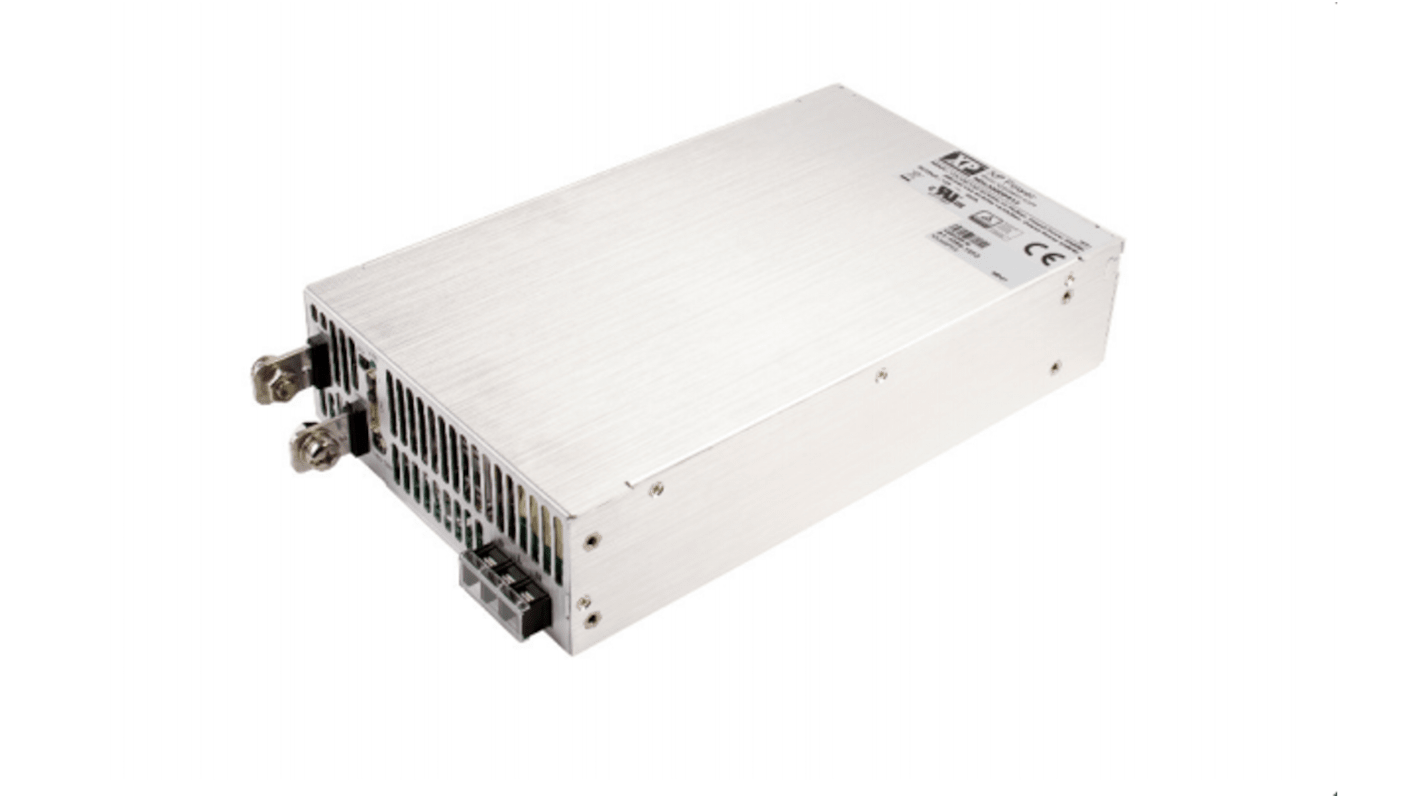

XP Power Switching Power Supply, HDL3000PS24, 125A, 3kW, 1 Output, 90 → 264V ac Input Voltage
- RS Stock No.:
- 210-9103
- Mfr. Part No.:
- HDL3000PS24
- Brand:
- XP Power
2 In stock - FREE next working day delivery available
Added
Price Each
£947.63
(exc. VAT)
£1,137.16
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £947.63 |
| 5 - 9 | £919.20 |
| 10 - 24 | £890.77 |
| 25 - 49 | £862.34 |
| 50 + | £833.91 |
- RS Stock No.:
- 210-9103
- Mfr. Part No.:
- HDL3000PS24
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The HDL3000 series offers users both output voltage and output current programming (0 – 105%) via resistance, voltage or I2C bus in a very high efficiency, high power density 3 kW chassis mount package. Measuring just 6.69” x 2.52” x 11.02”, the HDL3000 also features active current sharing, remote on/off, remote sense and a power OK signal. The standby output is available whenever the mains supply is present and can be user selected as either 5 V at 0.5 A or 9V at 0.3 A.
It has High Efficiency up to 93%
It also has High Power Density
It has a programmable Output Voltage (0-105%)
It has a programmable Output Current (0-105%)
It also supports Parallel Operation
It has Fully Featured Signals & Controls
It also has High Power Density
It has a programmable Output Voltage (0-105%)
It has a programmable Output Current (0-105%)
It also supports Parallel Operation
It has Fully Featured Signals & Controls
Specifications
Attribute | Value |
|---|---|
| Output Current | 125A |
| Power Rating | 3kW |
| Number of Outputs | 1 |
| Input Voltage | 90 → 264V ac |
| Mounting Type | Chassis Mount |
| Package Type | Enclosed |
| Length | 170mm |
| Width | 2.52mm |
| Depth | 12.48mm |
| Series | HDL3000 |
| Efficiency | 91% |
| Minimum Temperature | -20°C |
