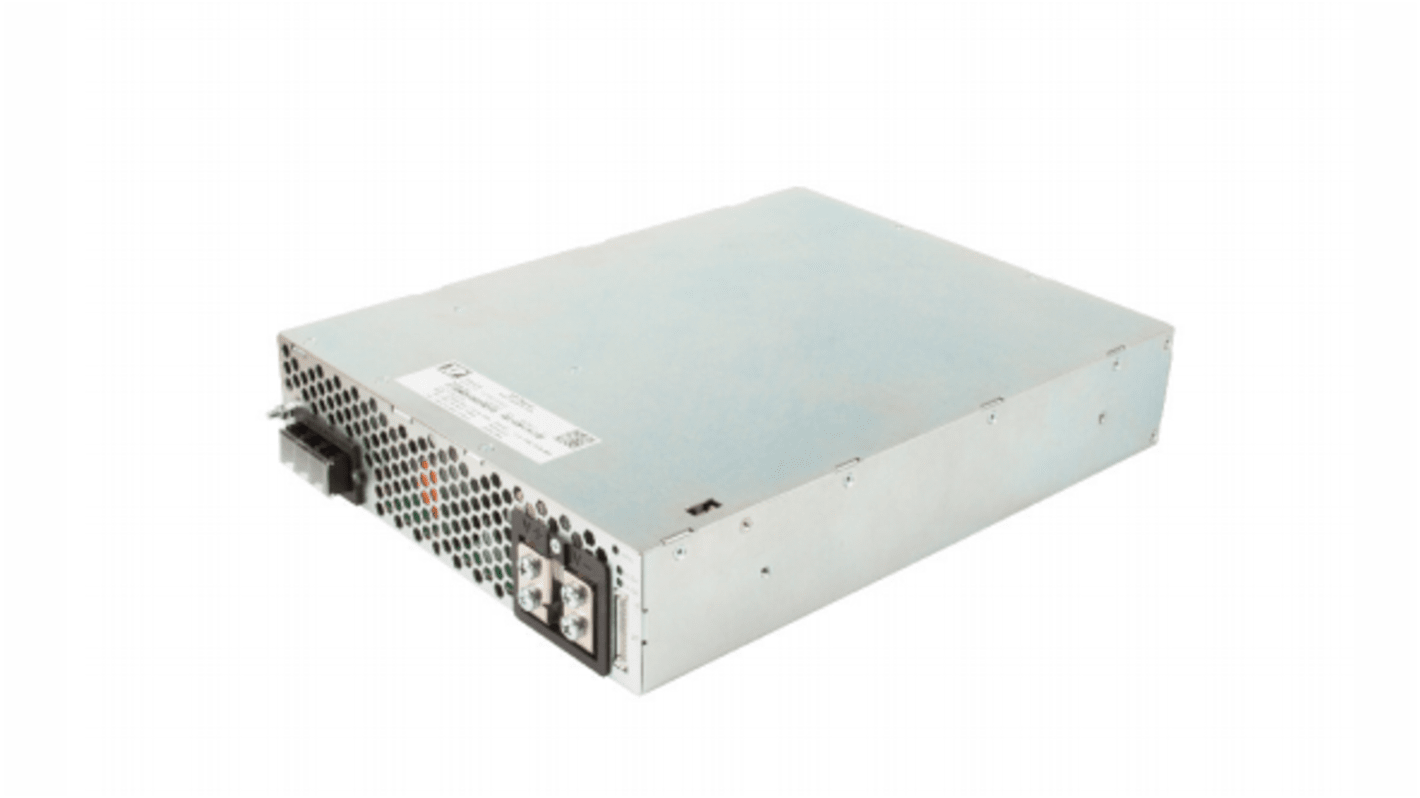

XP Power Switching Power Supply, HPT5K0TS200-L 200V dc, 25 A, 5 kW, Input 342V ac to 528V ac

View all Switching Power Supplies
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
210-4098
Distrelec Article No.:
301-85-904
Mfr. Part No.:
HPT5K0TS200-L
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Product Type

Switching Power Supply

Maximum Output Voltage

200V dc

Number of Outputs

1

Mount Type

Chassis

Power

5kW

SMPS Output Current

25 A

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

70°C

Standards/Approvals

UL 62368-1, UL 60950-1, RoHS, LVD, IEC 62368-1 Ed 2, IEC 60601-1 Ed 3, EN 62368-1, EN 60601-1/2006, CSA 22.2 No.62368-1, ANSI/AAMI ES 60601-1:2005 & CSA C22.2

Weight

12.5lb

Length

330.2mm

Depth

127mm

Width

127 mm

Maximum Input Voltage

528V ac

Series

HPT5K0-L

Efficiency

94%

Minimum Input Voltage

342V ac

Output Current

25A

Hazardous Area Certification

No

COO (Country of Origin):
CN
The XP Power HPT5K0-L series offers users both output voltage and output current programming, via voltage, I2C PMBus, RS485 and CAN open in a very high efficiency, high power density, low profile, 5 kW chassis mount package. Options are available for RS232 or UART. Measuring just 13.25” x 10.0” x 2.50”, The HPT5K0-L also features active current sharing, remote on/off, remote sense and a power OK signal. The 5V/2A standby output is available whenever the mains supply is present.

It has a 3 Phase 180 to 528 VAC Input - 3 Wire & Earth

It has High Efficiency - up to 94%

It has a Programmable Output Voltage (0-105%)

It has a Programmable Output Current (0-110%)

It also supports Graphical User Interface (GUI)
