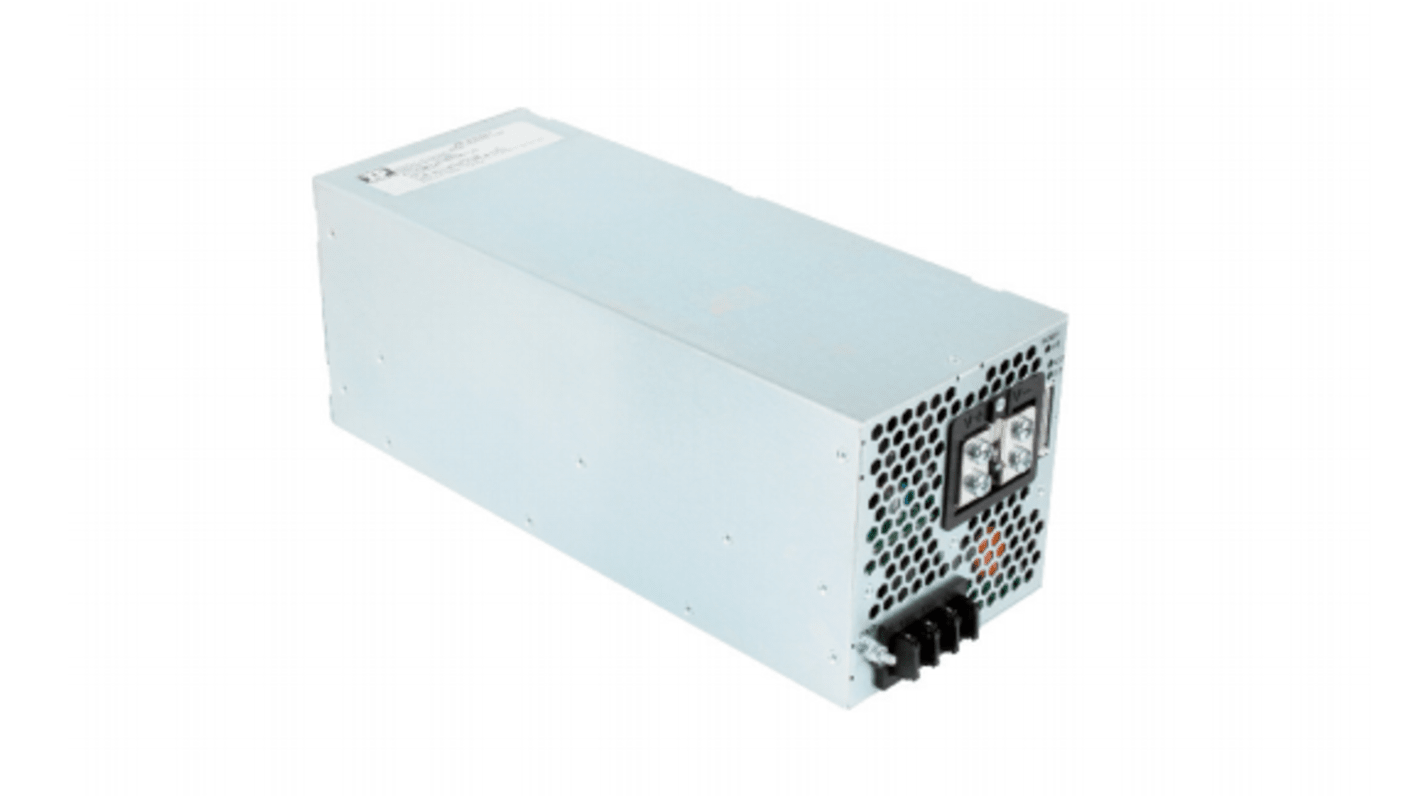

XP Power Switching Power Supply, HPT5K0TS200 200V dc, 25 A, 5 kW, Input 342V ac to 528V ac

View all Switching Power Supplies
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
210-4097
Distrelec Article No.:
301-85-903
Mfr. Part No.:
HPT5K0TS200
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Product Type

Switching Power Supply

Maximum Output Voltage

200V dc

Number of Outputs

1

Mount Type

Chassis

Power

5kW

Minimum Operating Temperature

-20°C

SMPS Output Current

25 A

Maximum Operating Temperature

70°C

Length

330.2mm

Standards/Approvals

EN 62368-1, IEC 62368-1 Ed 2, LVD, RoHS, UL 60950-1, UL 62368-1, ANSI/AAMI ES 60601-1:2005 & CSA C22.2, CSA 22.2 No.62368-1, EN 60601-1/2006, IEC 60601-1 Ed 3

Weight

12.5lb

Depth

127mm

Width

127 mm

Efficiency

94%

Maximum Input Voltage

528V ac

Series

HPT5K0

Hazardous Area Certification

No

Minimum Input Voltage

342V ac

Output Current

25A

COO (Country of Origin):
CN
The XP Power HPT5K0 series offers users both output voltage and output current programming, via voltage, I2C PMBus, RS485 and CAN open in a very high efficiency, high power density 5 kW chassis mount package. Options are available for RS232 or UART. Measuring just 13.0” x 5.0” x 5.0”, The HPT5K0 also features active current sharing, remote on/off, remote sense and a power OK signal. The standby output is available whenever the mains supply is present.

It has a 3 Phase 180 to 528 VAC Input - 3 Wire & Earth

It has High Efficiency - up to 94%

It has a Programmable Output Voltage (0-105%)

It has a Programmable Output Current (0-110%)

It also supports Graphical User Interface (GUI)
