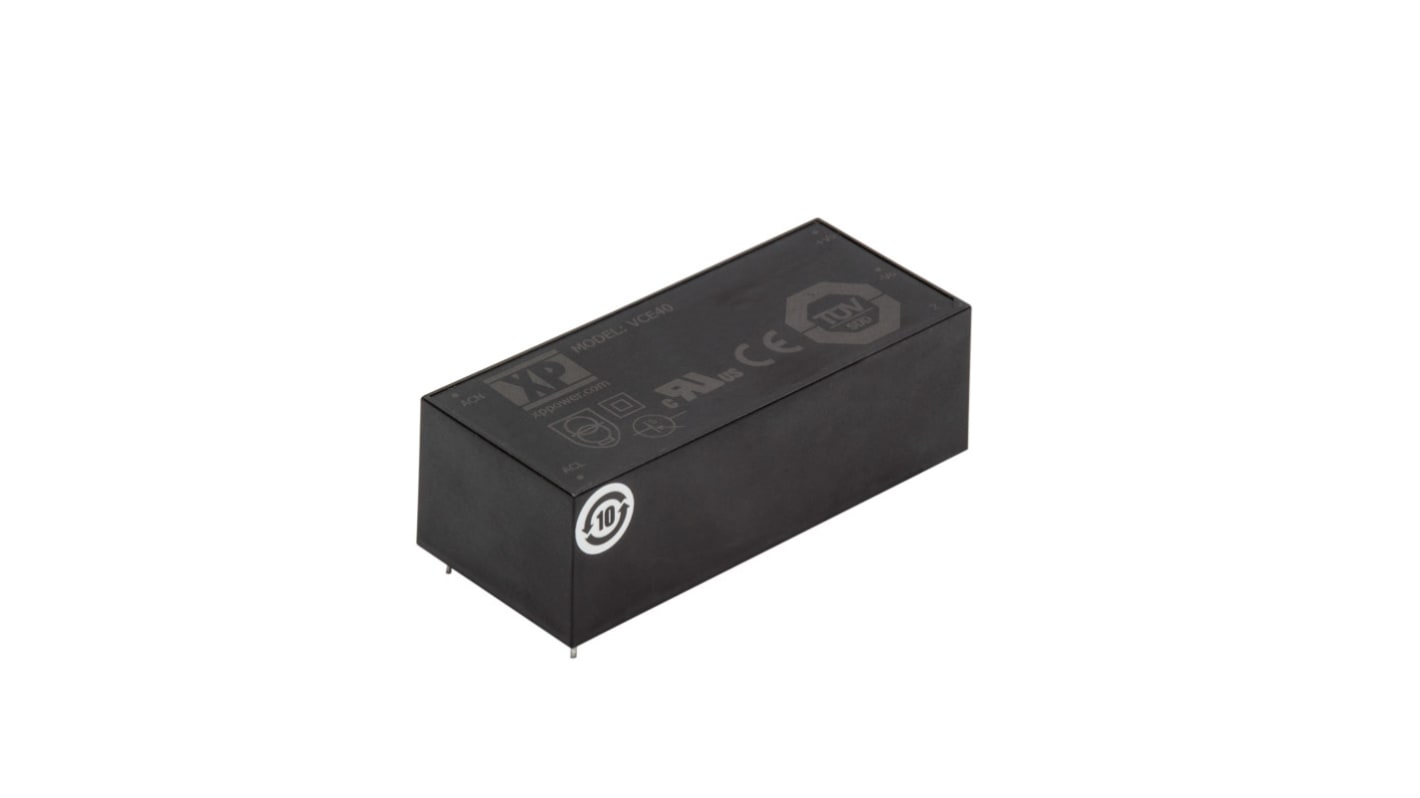

XP Power Switching Power Supply, VCE40US24, 24V ac, 1.66A, 40W, 1 Output, 85 → 305V ac Input Voltage
- RS Stock No.:
- 197-1005
- Distrelec Article No.:
- 301-83-740
- Mfr. Part No.:
- VCE40US24
- Brand:
- XP Power
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 197-1005
- Distrelec Article No.:
- 301-83-740
- Mfr. Part No.:
- VCE40US24
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | 24V ac | |
| Output Current | 1.66A | |
| Power Rating | 40W | |
| Number of Outputs | 1 | |
| Input Voltage | 85 → 305V ac | |
| Mounting Type | PCB Mount | |
| Package Type | Encapsulated | |
| Length | 87.9mm | |
| Width | 38.1mm | |
| Medical Approved | No | |
| Depth | 28.5mm | |
| Series | VCE40 | |
| Efficiency | 85% | |
| Minimum Temperature | -25°C | |
| Weight | 190g | |
| Maximum Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage 24V ac | ||
Output Current 1.66A | ||
Power Rating 40W | ||
Number of Outputs 1 | ||
Input Voltage 85 → 305V ac | ||
Mounting Type PCB Mount | ||
Package Type Encapsulated | ||
Length 87.9mm | ||
Width 38.1mm | ||
Medical Approved No | ||
Depth 28.5mm | ||
Series VCE40 | ||
Efficiency 85% | ||
Minimum Temperature -25°C | ||
Weight 190g | ||
Maximum Temperature +70°C | ||
- COO (Country of Origin):
- CN
The XP Power VCE40US24, 24VDC/40W power supplies for low cost ITE, industrial and domestic applications. The series provides open frame and encapsulated PCB mount. With world-wide safety standards including ITE and Household, compliance with class B .
Supply Voltage ranges from 85 to 305 VAC
EN55035 immunity standard
Class II
EN55035 immunity standard
Class II
