XP Power Switching Power Supply, VCE40US09, 9V dc, 4.44A, 40W, 1 Output, 85 → 305V ac Input Voltage
- RS Stock No.:
- 197-1001
- Mfr. Part No.:
- VCE40US09
- Brand:
- XP Power
24 In stock - FREE next working day delivery available
Added
Price Each
£22.84
(exc. VAT)
£27.41
(inc. VAT)
| Units | Per unit |
| 1 + | £22.84 |
- RS Stock No.:
- 197-1001
- Mfr. Part No.:
- VCE40US09
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

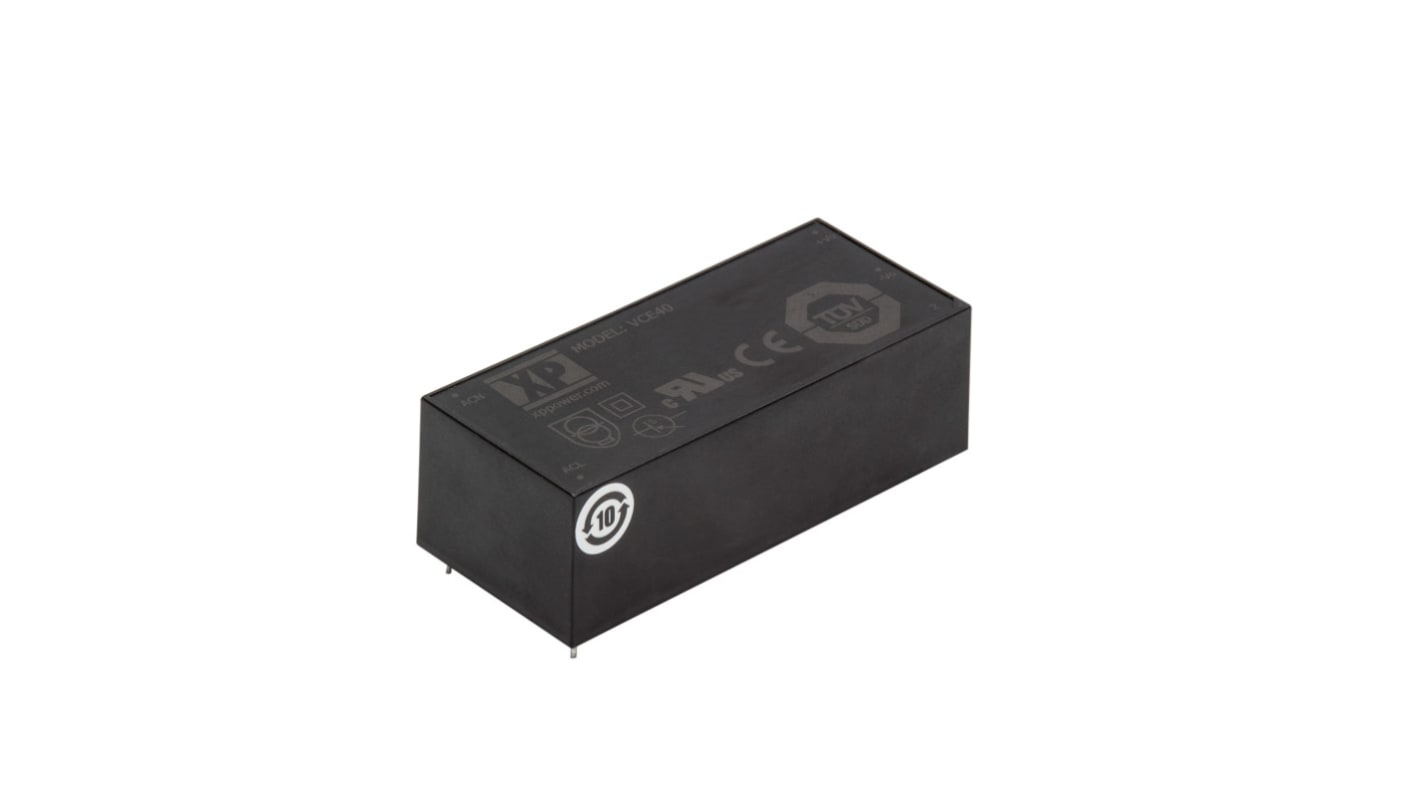

The XP Power VCE40US09, 9VDC/40W power supplies for low cost ITE, industrial and domestic applications. The series provides open frame and encapsulated PCB mount. With world-wide safety standards including ITE and Household, compliance with class B .
Supply Voltage ranges from 85 to 305 VAC
EN55035 immunity standard
Class II
EN55035 immunity standard
Class II
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 9V dc |
| Output Current | 4.44A |
| Power Rating | 40W |
| Number of Outputs | 1 |
| Input Voltage | 85 → 305V ac |
| Mounting Type | PCB Mount |
| Package Type | Encapsulated |
| Length | 87.9mm |
| Width | 38.1mm |
| Medical Approved | No |
| Depth | 28.5mm |
| Efficiency | 85% |
| Series | VCE40 |
| Minimum Temperature | -25°C |
| Weight | 190g |
| Maximum Temperature | +70°C |
