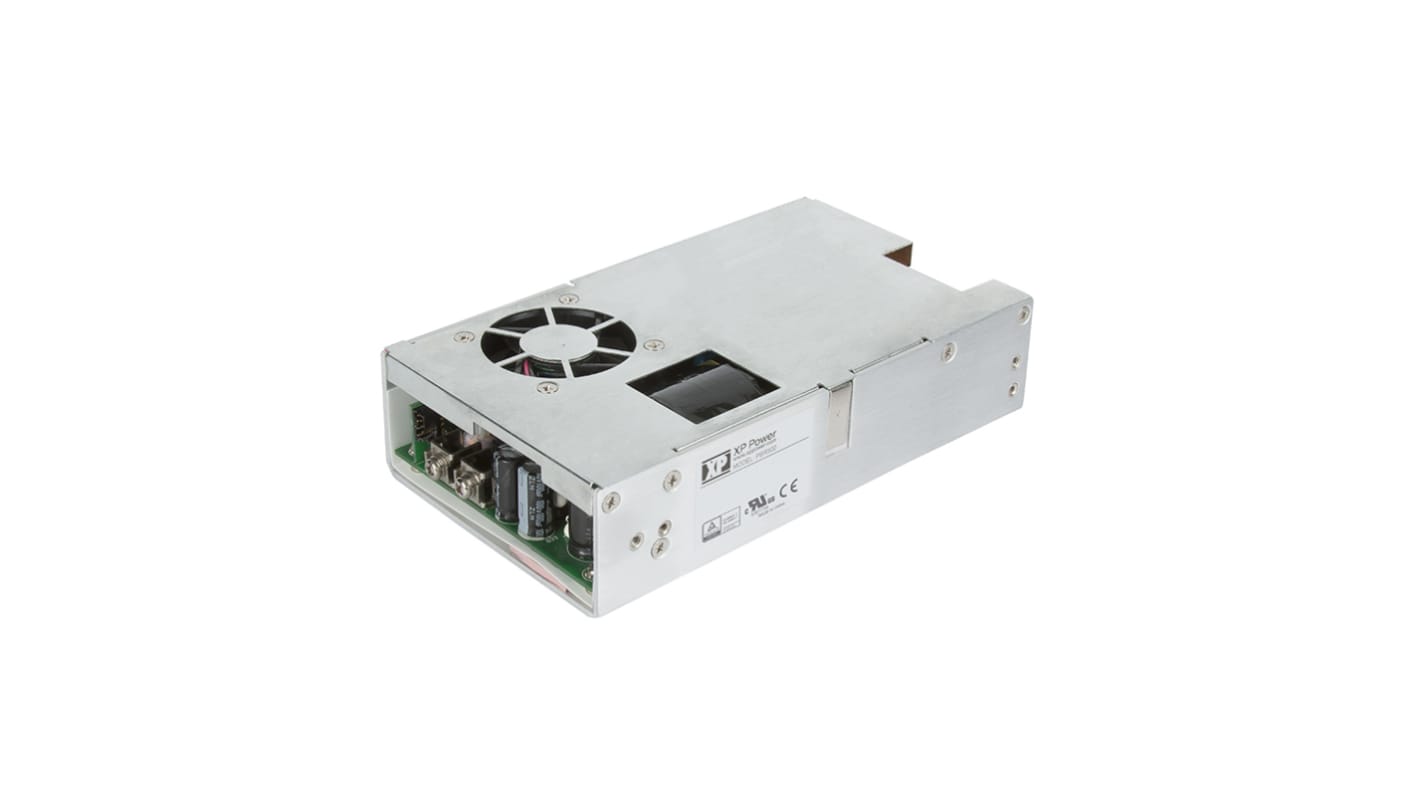

XP Power Switching Power Supply, PBR500PS48C, 48V dc, 8.34A, 400 (Convection) W, 500 (Forced) W, 1 Output, 80 →

View all Switching Power Supplies
Bulk discount available

Subtotal (1 unit)*

£268.99

(exc. VAT)

£322.79

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 23 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£268.99
5 - 9£260.92
10 - 24£252.85
25 - 49£244.78
50 +£236.71

*price indicative

RS Stock No.:
185-6063
Mfr. Part No.:
PBR500PS48C
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage

48V dc

Output Current

8.34 A, 10.42A

Power Rating

400 (Convection) W, 500 (Forced) W

Number of Outputs

1

Input Voltage

80 → 264V ac

Mounting Type

Chassis Mount

Package Type

Enclosed

Length

177.8mm

Width

101.6mm

Medical Approved

Yes

Depth

43.2mm

Efficiency

90%

Series

PBR500

Maximum Temperature

+70°C

Weight

1.1kg

Minimum Temperature

-10°C

The PBR500 series of AC-DC switching power supplies, in a package of just 4 x 7 x 1.7 inches, deliver 450-500 watts of continuous power with forced air cooling or 350-400 watts with convection cooling. The units are constructed on a U-Channel for mechanical support and heat sinking. A cover and fan assembly can be added during manufacturing. They are designed for both ITE/Industrial and medical applications including those needing BF rated insulation with an operation altitude up to 5000 meters.

450-500W Forced Cooled
350-400W Convection Cooled
ITE & Medical (BF) Safety Approvals
U-Channel 4” x 7” Package
5V Standby & 12V Fan Supply
AC OK, Inhibit & Remote Sense
Class B Conducted & Radiated Emissions
3 Year Warranty
