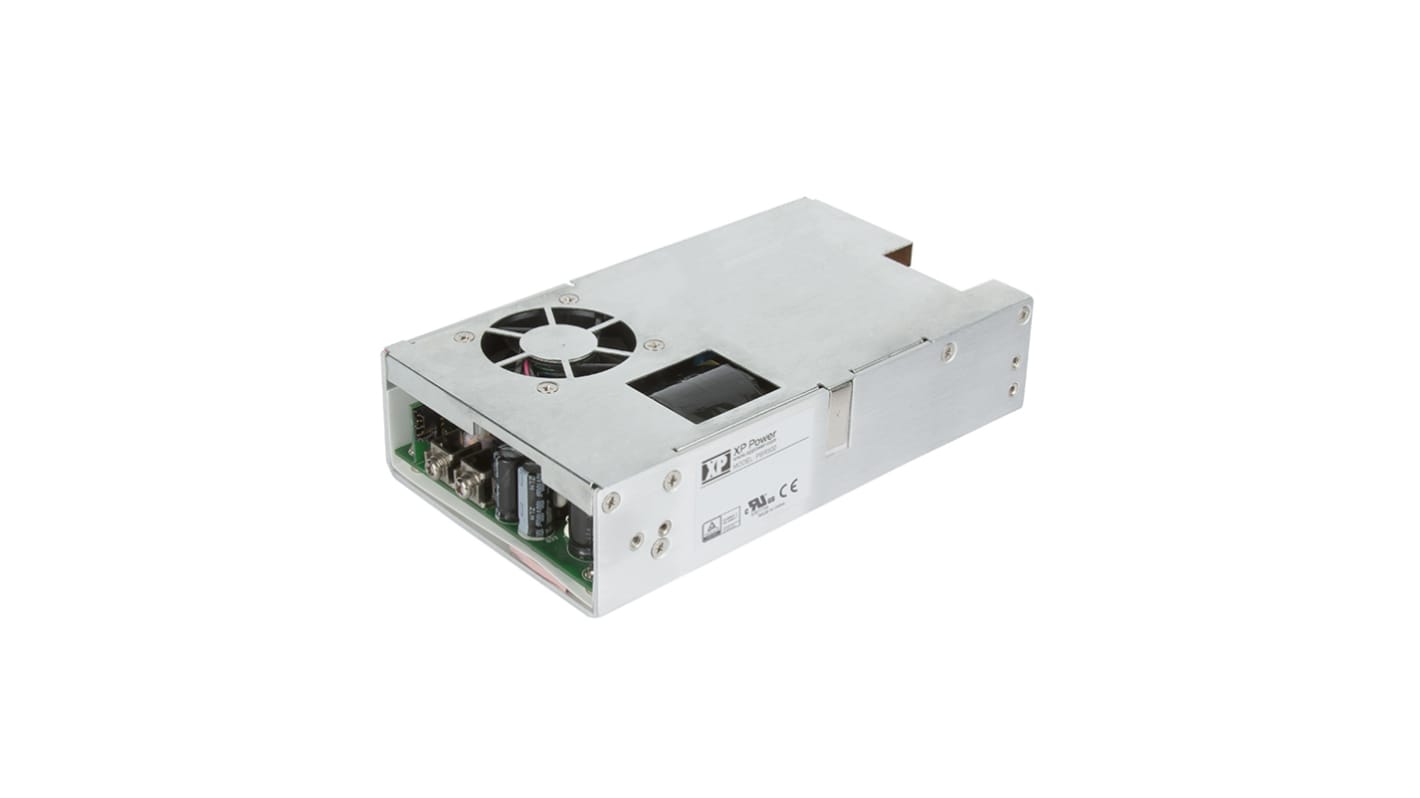

XP Power Switching Power Supply, PBR500PS12C, 12V dc, 29.17A, 350 (Convection) W, 500 (Forced) W, 1 Output, 80 →

View all Switching Power Supplies
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
185-6057
Distrelec Article No.:
302-41-774
Mfr. Part No.:
PBR500PS12C
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage

12V dc

Output Current

29.17 A, 37.5A

Power Rating

350 (Convection) W, 500 (Forced) W

Number of Outputs

1

Input Voltage

80 → 264V ac

Mounting Type

Chassis Mount

Package Type

Enclosed

Length

177.8mm

Width

101.6mm

Medical Approved

Yes

Depth

43.2mm

Series

PBR500

Efficiency

90%

Weight

1.1kg

Maximum Temperature

+70°C

Minimum Temperature

-10°C

The PBR500 series of AC-DC switching power supplies, in a package of just 4 x 7 x 1.7 inches, deliver 450-500 watts of continuous power with forced air cooling or 350-400 watts with convection cooling. The units are constructed on a U-Channel for mechanical support and heat sinking. A cover and fan assembly can be added during manufacturing. They are designed for both ITE/Industrial and medical applications including those needing BF rated insulation with an operation altitude up to 5000 meters.

450-500W Forced Cooled
350-400W Convection Cooled
ITE & Medical (BF) Safety Approvals
U-Channel 4” x 7” Package
5V Standby & 12V Fan Supply
AC OK, Inhibit & Remote Sense
Class B Conducted & Radiated Emissions
3 Year Warranty
