TRACOPOWER, TMPS 10-115 Switching Power Supply 15V dc, 10 W 264V ac
- RS Stock No.:
- 181-0592
- Distrelec Article No.:
- 301-40-718
- Mfr. Part No.:
- TMPS 10-115
- Brand:
- TRACOPOWER
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£20.19
(exc. VAT)
£24.23
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 20 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £20.19 |
| 5 - 9 | £19.58 |
| 10 - 24 | £18.98 |
| 25 - 49 | £18.17 |
| 50 + | £17.38 |
*price indicative
- RS Stock No.:
- 181-0592
- Distrelec Article No.:
- 301-40-718
- Mfr. Part No.:
- TMPS 10-115
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | Switching Power Supply | |
| Maximum Output Voltage | 15V dc | |
| Number of Outputs | 1 | |
| Mount Type | PCB | |
| Power | 10W | |
| Minimum Operating Temperature | -25°C | |
| SMPS Output Current | 660mA | |
| Maximum Operating Temperature | 70°C | |
| Depth | 15.74mm | |
| Weight | 29g | |
| Width | 25.4mm | |
| Standards/Approvals | EN 61000-4-6, FCC Part 15, IEC/EN 60335-1, IEC/EN/UL 60950-1, IEC/EN/UL 62368-1, RoHS, EN 55024, EN 55032, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-8, EN 55014-1, EN 55014-2 | |
| Efficiency | 84% | |
| Series | TMPS 10 | |
| Maximum Input Voltage | 264V ac | |
| Hazardous Area Certification | No | |
| Minimum Input Voltage | 85V ac | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type Switching Power Supply | ||
Maximum Output Voltage 15V dc | ||
Number of Outputs 1 | ||
Mount Type PCB | ||
Power 10W | ||
Minimum Operating Temperature -25°C | ||
SMPS Output Current 660mA | ||
Maximum Operating Temperature 70°C | ||
Depth 15.74mm | ||
Weight 29g | ||
Width 25.4mm | ||
Standards/Approvals EN 61000-4-6, FCC Part 15, IEC/EN 60335-1, IEC/EN/UL 60950-1, IEC/EN/UL 62368-1, RoHS, EN 55024, EN 55032, EN 61000-4-11, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-8, EN 55014-1, EN 55014-2 | ||
Efficiency 84% | ||
Series TMPS 10 | ||
Maximum Input Voltage 264V ac | ||
Hazardous Area Certification No | ||
Minimum Input Voltage 85V ac | ||
- COO (Country of Origin):
- TW

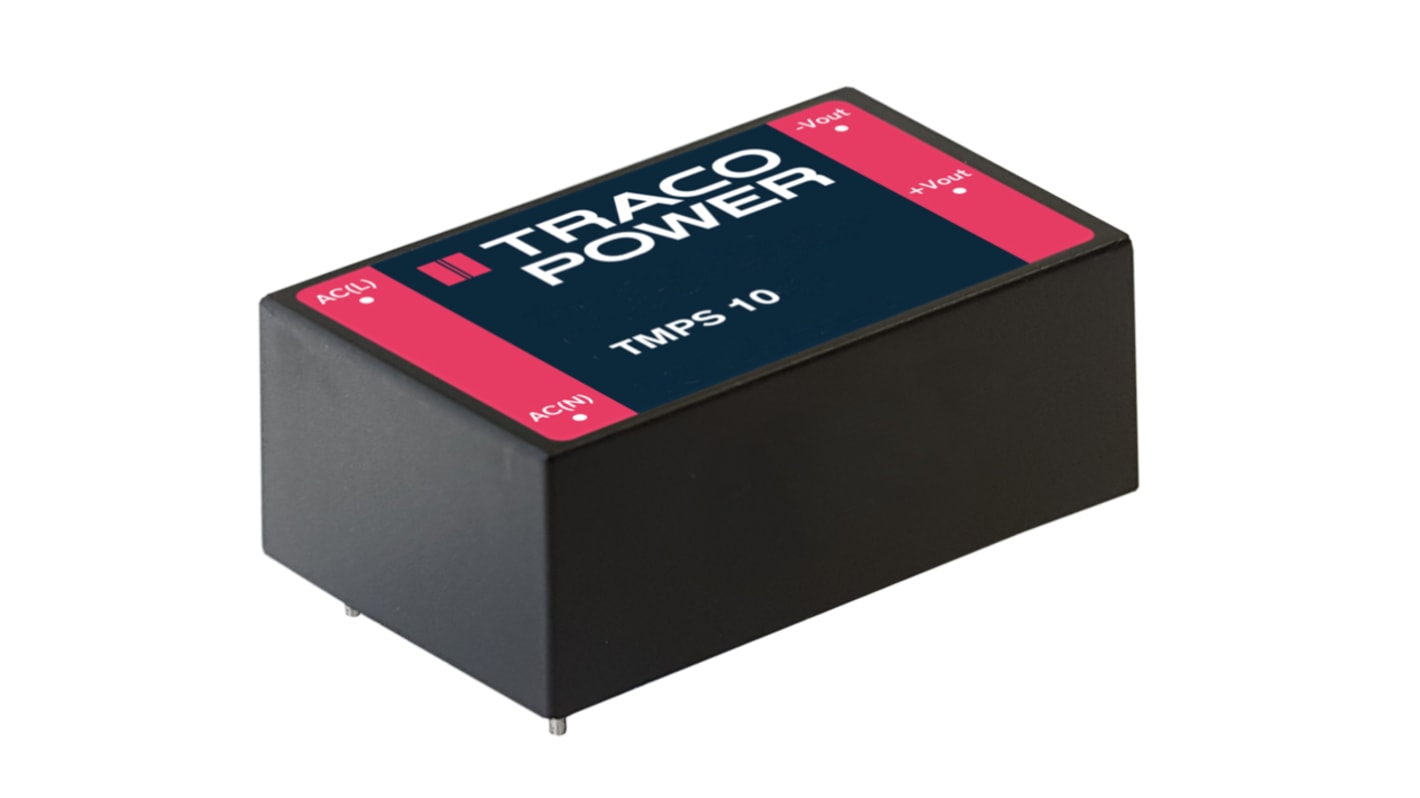

The TMPS 10 series comprises ultra compact AC/DC power supply modules in a lightweight fully encapsulated plastic casing for PCB mount. These 10 Watt modules are the ideal solution for low power or segregated circuits when space is critical or for an efficient powering of a standby mode. A peak current of 130% facilitates the activation of main circuits.
Ultra Compact 10 Watt PCB Power module in 1" x 1.5" package
Reinforced I/O isolation 4000 VAC
Operating temperature range –25°C to +70°C
Allows 130% peak current up to 30 s
Ready to meet ErP directive, < 0.15 W no load power consumption
3-year product warranty
