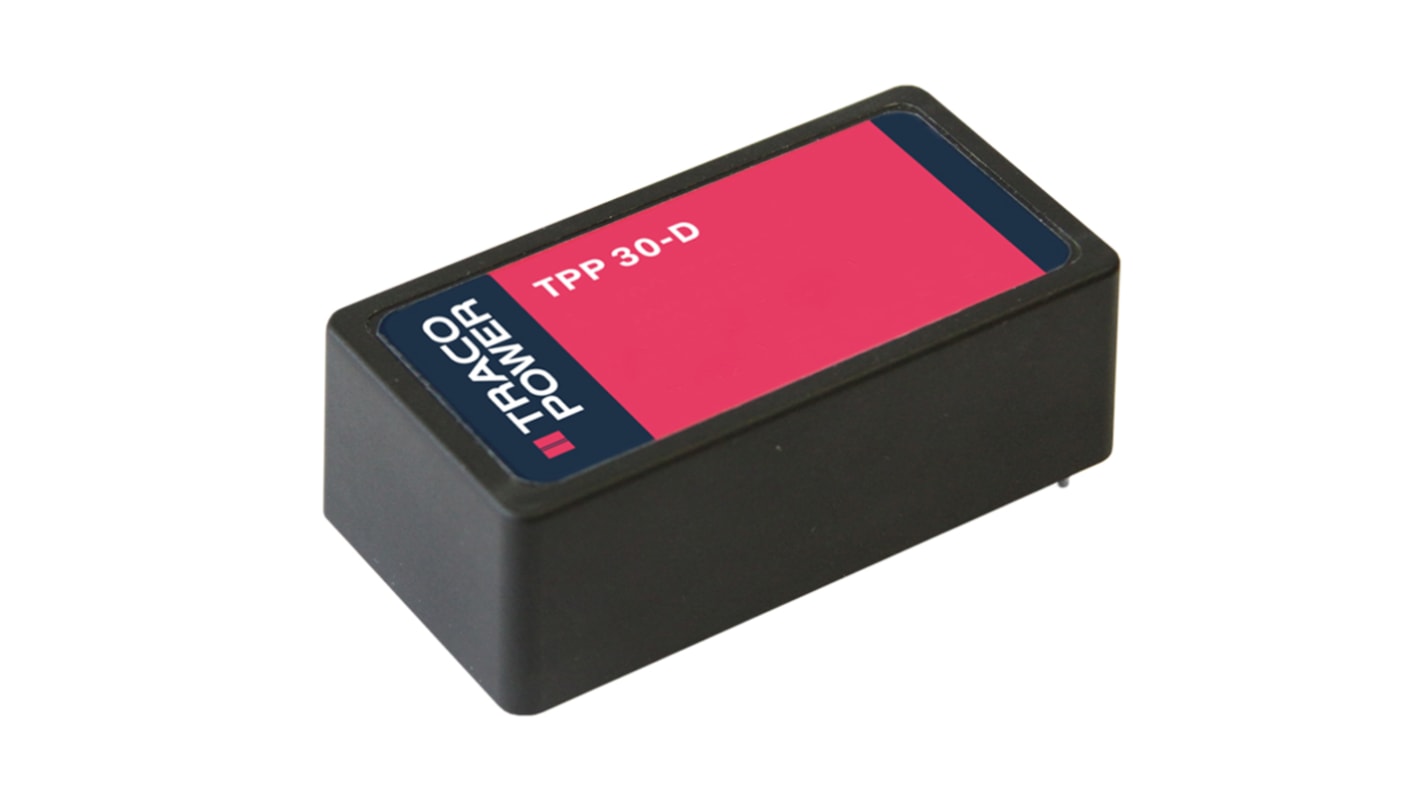

TRACOPOWER Switching Power Supply, TPP 30-105-D, 5V dc, 6A, 30W, 1 Output, 120 → 370 V dc, 85 → 264 V ac
- RS Stock No.:
- 177-0197
- Mfr. Part No.:
- TPP 30-105-D
- Brand:
- TRACOPOWER
Available to back order for despatch 29/10/2024
Added
Price Each
£55.15
(exc. VAT)
£66.18
(inc. VAT)
Units | Per unit |
1 - 4 | £55.15 |
5 - 9 | £53.50 |
10 - 24 | £51.84 |
25 - 49 | £49.64 |
50 + | £47.43 |
- RS Stock No.:
- 177-0197
- Mfr. Part No.:
- TPP 30-105-D
- Brand:
- TRACOPOWER
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
The TPP 30-D AC/DC power supplies feature a reinforced double I/O isolation system. The earth leakage current is below 100 μA what makes the units suitable for BF (body floating) applications. The excellent efficiency of up to 91.5% offers a high power density in the packaging format 1.5 x 2.9. The full load operating temperature range covers –40°C to +60°C while it goes up to 85°C with 50% load derating.
High power density power supply (encapsulated)
Operating up to 5000m altitude
No load power consumption
5 year product warranty
Operating up to 5000m altitude
No load power consumption
5 year product warranty
Specifications
Attribute | Value |
---|---|
Output Voltage | 5V dc |
Output Current | 6A |
Power Rating | 30W |
Number of Outputs | 1 |
Input Voltage | 120 → 370 V dc, 85 → 264 V ac |
Mounting Type | Surface Mount |
Package Type | Enclosed |
Length | 73.3mm |
Width | 38.1mm |
Medical Approved | Yes |
Depth | 25.6mm |
Maximum Temperature | +85°C |
Minimum Temperature | -40°C |
Weight | 106g |
- RS Stock No.:
- 177-0197
- Mfr. Part No.:
- TPP 30-105-D
- Brand:
- TRACOPOWER
