4W to 60W low profile AC/DC encapsulated power supplies with ultra-compact casings. These AC/DC encapsulated power modules have universal inputs and are available with single, dual or triple outputs. There are two mounting options for these AC/DC power supplies; PCB mounting with solder pins or chassis mount with a screw terminal block connection. Typical applications for these encapsulated AC/DC power supplies includes spcae critical applications within commercial and industrial equipment.

Ultra compact and low profile design
Universal 85-264Vac input
Fully encapsulated offering protection against pollution and dust
Short circuit, overload and over temperature protection
3kVac input / output isolation
Protection Class II
EM Ccompliance to EN 55022, level B, FCC Part 15 level B

Manufacturers part numbers with a 'C' suffix denote chassis mounting types.
Multi output models TMPM 042xx, TMP 1021x, TMP 1521x and TMP 3021x have a common ground. Other multi output models have output 1 isolated from output 2/3 (floating)
Optional DIN-Rail mounting adaptors for chassis mounting types (identified by a 'C' suffix within the manufacturers pt no) available separately, see stk nos 666-2786 & 666-2780
De-rate by 3.5% per °C above 50°C. for 'TMP 10' models
De-rate by 2.5% per °C above 40°C. for other models
MTBF to MIL-HDBK-217F (25 °C).

IEC/EN 60950-1, UL 60950-1, UL/cUL 508 (chassis mount single and symetric dual output models only)

CB, UL recognised component for Canada & US

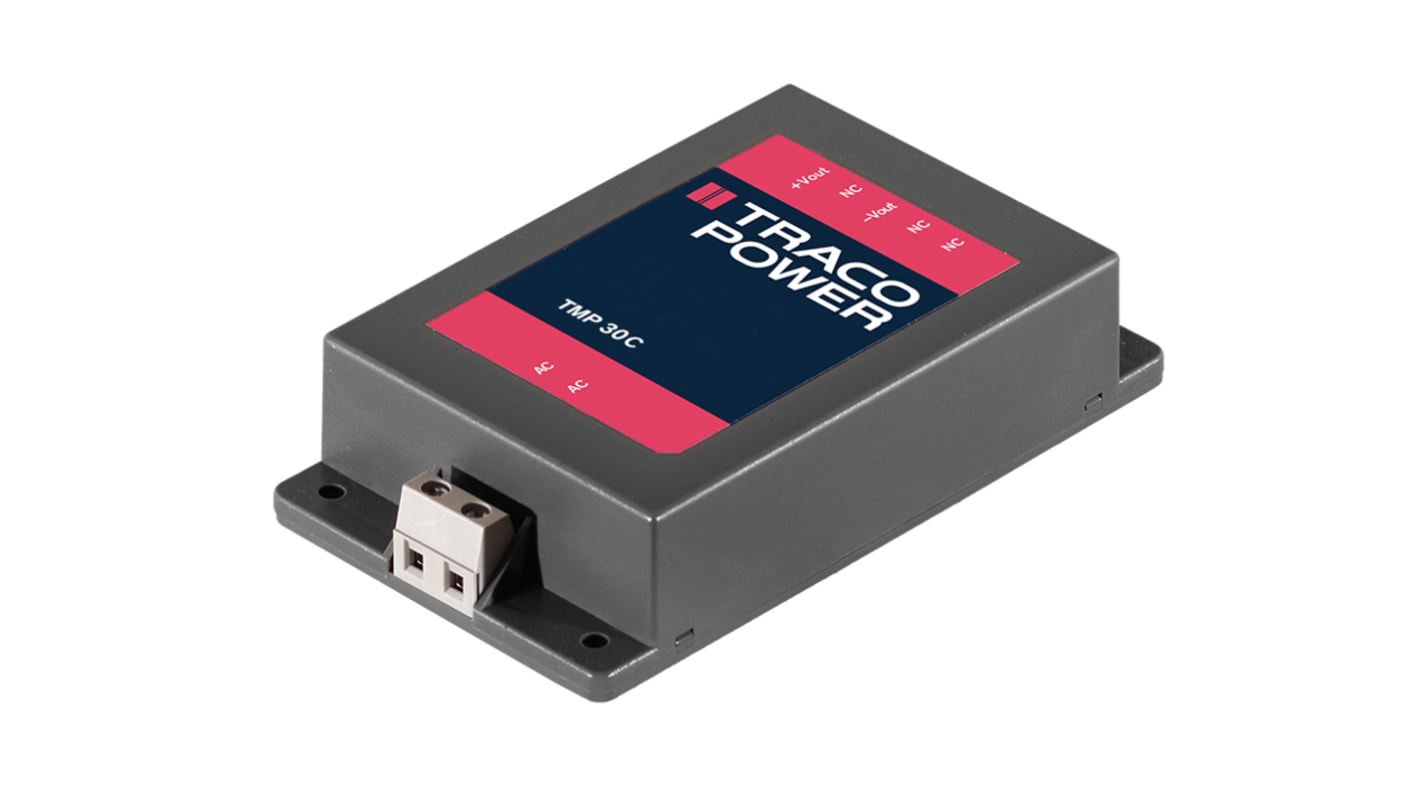

This switching power supply delivers efficient power conversion for various industrial and commercial applications. It has an output voltage of 5 V DC with a maximum current of 6 A, suitable for a wide range of electronic devices. Its ability to accommodate an input voltage range of 85 to 264 V AC enhances its flexibility for diverse operational environments.

• Ultra-compact design that optimises installation space
• Fully encapsulated housing protects against dust and pollution
• High efficiency of 78% minimises energy loss
• Single output promotes straightforward power distribution
• Over-temperature protection extends lifespan and maintains performance
• Chassis mount design enables straightforward installation in various applications

• Commonly used in automation systems
• Suitable for electronic equipment that requires 5 V power
• Ideal for devices exposed to polluted environments
• Employed in industrial controls and machinery
• Appropriate for scenarios demanding consistent power conversion

The recommended input voltage is between 85 and 264 V AC for reliable operation.

Enhanced efficiency leads to reduced energy loss, resulting in lower operating costs and diminished heat generation.

It is advisable to use a slow-blow fuse rated at 2.0 A for models ranging from 7 to 15 W.

Yes, it functions effectively within a temperature range of -25°C to +60°C.

The unit can be conveniently mounted using chassis or PCB methods, depending on specific application needs.

Switch Mode - Traco, TMP and TMPM Series
