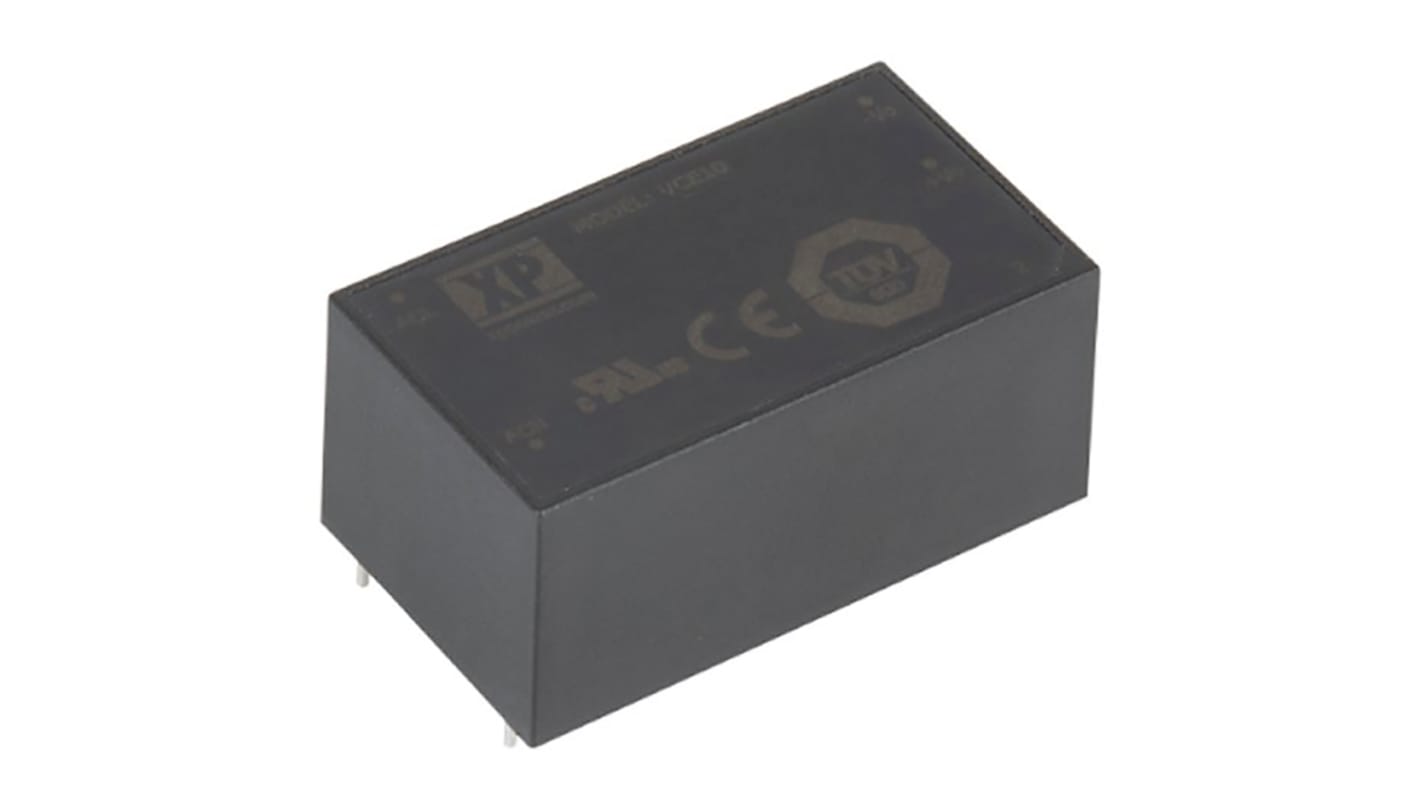

XP Power Switching Power Supply, VCE10US03, 3.3V dc, 2400mA, 8W, 1 Output, 85 → 305V ac Input Voltage
- RS Stock No.:
- 172-0796
- Mfr. Part No.:
- VCE10US03
- Brand:
- XP Power
Subtotal (1 unit)*
£9.16
(exc. VAT)
£10.99
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 1 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £9.16 |
*price indicative
- RS Stock No.:
- 172-0796
- Mfr. Part No.:
- VCE10US03
- Brand:
- XP Power
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | XP Power | |
| Output Voltage | 3.3V dc | |
| Output Current | 2400mA | |
| Power Rating | 8W | |
| Number of Outputs | 1 | |
| Input Voltage | 85 → 305V ac | |
| Mounting Type | PCB Mount | |
| Package Type | Encapsulated | |
| Length | 50.8mm | |
| Width | 29.2mm | |
| Depth | 23.1mm | |
| Efficiency | 80% | |
| Minimum Temperature | -25°C | |
| Maximum Temperature | +70°C | |
| Weight | 52g | |
Select all | ||
|---|---|---|
Brand XP Power | ||
Output Voltage 3.3V dc | ||
Output Current 2400mA | ||
Power Rating 8W | ||
Number of Outputs 1 | ||
Input Voltage 85 → 305V ac | ||
Mounting Type PCB Mount | ||
Package Type Encapsulated | ||
Length 50.8mm | ||
Width 29.2mm | ||
Depth 23.1mm | ||
Efficiency 80% | ||
Minimum Temperature -25°C | ||
Maximum Temperature +70°C | ||
Weight 52g | ||
The VCE10 is a series of open frame and encapsulated AC-DC single output power supplies designed for low cost ITE, industrial and domestic applications. The series provides two mechanical options including open frame and encapsulated PCB mount. These class II isolation parts benefit system designers with easy integration into a wide range of applications.
Compact Size
Single Outputs from 3.3 to 48 V
PCB Mount
Encapsulated & Open Frame
85-305 VAC Input
Class II
<0.3 W No Load Input Power
Low Cost
3 Year Warranty
Single Outputs from 3.3 to 48 V
PCB Mount
Encapsulated & Open Frame
85-305 VAC Input
Class II
<0.3 W No Load Input Power
Low Cost
3 Year Warranty
